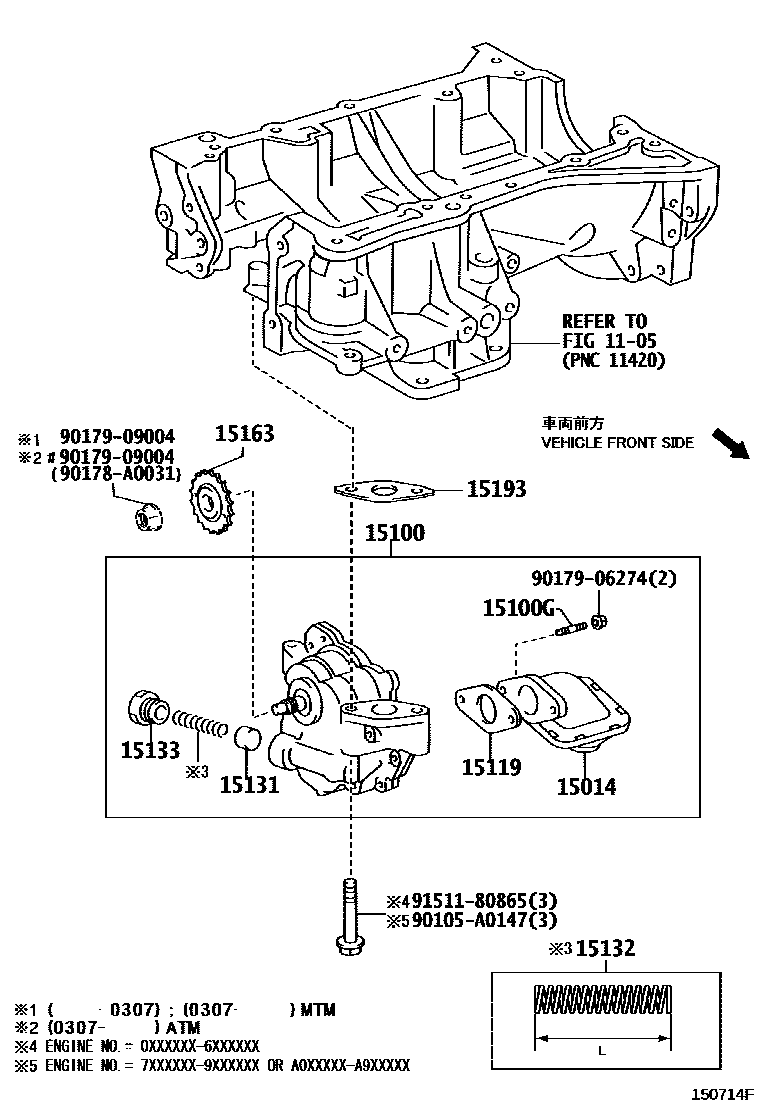

ENGINE OIL PUMP

0001 1 0002 1 0003 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15014STRAINER SET, OIL PUMP

main15014-0H010i2AZFE..ACV30..JPP..5FC200406

*108

main15014-28020i2AZFE..ACV30..JPP200107-200406

*107

15100PUMP ASSY, OIL

main15100-0A030i1MZFE..MCV30..JPP200107-200301

main15100-0A040i1MZFE..MCV30..JPP200301-200307

ENGINE NO.=5XXXXXX

main15100-0H010i2AZFE..ACV30..JPP..4FC200107-200406

(L)

main15100-20050i1MZFE..MCV30..JPP..SE200301-200307

ENGINE NO.=0XXXXXX-4XXXXXX

main15100-28020i2AZFE..ACV30..JPP200406

(J)

15100GBOLT,STUD(FOR OIL PUMP)

main15183-28020×2i2AZFE..ACV30..JPP200406-200601

15119GASKET, OIL PUMP COVER

main15119-0H010i2AZFE..ACV30..JPP..5FC200406

*108

main15119-28020i2AZFE..ACV30..JPP200107-200406

*107

15131VALVE, OIL PUMP RELIEF

main15131-0A040i1MZFE..MCV30..JPP200301-200307

ENGINE NO.=5XXXXXX

main15131-42021i1MZFE..MCV30..JPP200107-200301

main15131-46040i1MZFE,3MZFE..MCV3#..JPP; 2AZFE..ACV30..JPP200406

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0A010i1MZFE..MCV30..JPP200107-200301

main15132-0A020i1MZFE..MCV30..JPP200301-200307

ENGINE NO.=5XXXXXX

main15132-0H010i2AZFE..ACV30..JPP..4FC200107-200406

*108

main15132-28020i2AZFE..ACV30..JPP200406-200502

*107,L=77.2

main15132-46020i1MZFE..MCV30..JPP200301-200406

ENGINE NO.=0XXXXXX-4XXXXXX

15133PLUG, OIL PUMP RELIEF VALVE

main15133-0H010i2AZFE..ACV30..JPP..5FC200406

*108

main15133-17010i1MZFE,3MZFE..MCV3#..JPP200406

main15133-20010i1MZFE..MCV30..JPP200107-200301

main15133-28020i2AZFE..ACV30..JPP200107-200406

*107

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H010i2AZFE..ACV30..JPP..5FC200406

(L)

main15163-28010i2AZFE..ACV30..JPP200107-200406

(J)

15193GASKET, OIL PUMP

main15193-0H010i2AZFE..ACV30..JPP..4FC200107-200406

(L)

main15193-28010i2AZFE..ACV30..JPP200107-200406

(J)

90105A0147

main90105-A0147

90178A0031

main90178-A0031

9017906274

main90179-06274

9017909004

main90179-09004

9151180865

main91511-80865

15 parts on this diagram · 3 diagrams in section
