CYLINDER HEAD

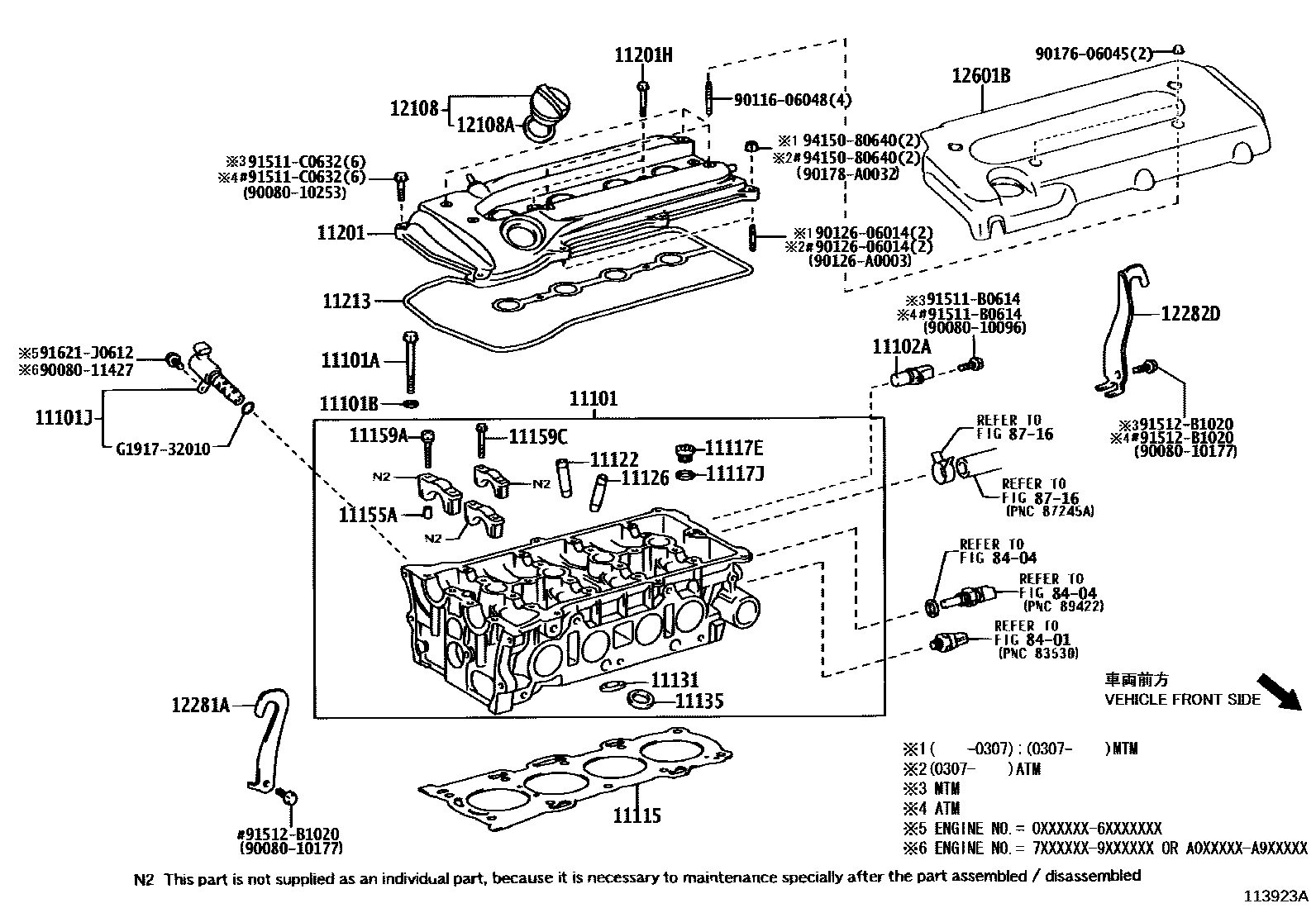

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-09074i200107-200301
ENGINE NO.=5XXXXXX-9XXXXXX,(L)
sub11101-09075
main11101-09132i200301-200309
ENGINE NO.=5XXXXXX-9XXXXXX,(L)
sub11101-29438
main11101-0H010i200112-200406
(L)
sub11101-0H011
sub11310-0H011
sub11310-28071
sub11310-28082
sub11321-28042
main11101-0H010i200504-200508
(L),*107
sub11101-0H011
sub11310-0H011
sub11310-28071
sub11310-28082
sub11321-28042
main11101-0H010i200406-200507
(L),*108
sub11101-0H011
sub11310-0H011
sub11310-28071
sub11310-28082
sub11321-28042
main11101-0H011i200507
(L),*108
main11101-0H011i200508
(L),*107
main11101-28011i200107-200406
(J)
sub11101-28012
sub11310-0H011
sub11310-0H021
sub11310-0H041
sub11310-0H051
sub11310-28071
sub11310-28082
sub11321-28042
main11101-28011i200406-200508
(J),*107
sub11101-28012
sub11310-0H011
sub11310-0H021
sub11310-0H041
sub11310-0H051
sub11310-28071
sub11310-28082
sub11321-28042
main11101-28011i200406-200507
(J),*108
sub11101-28012
sub11310-0H011
sub11310-0H021
sub11310-0H041
sub11310-0H051
sub11310-28071
sub11310-28082
sub11321-28042
main11101-28012i200508
(J),*107
main11101-28012i200507
(J),*108
main11101-29409i200107-200301
ENGINE NO.=5XXXXXX-9XXXXXX,(J)
sub11101-29410
main11101-29438i200406-200601
main11101-29438i200301-200406
ENGINE NO.=5XXXXXX-9XXXXXX,(J)
main11101-29485i200307-200601
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02117i200107-200406
main90910-02141i200107-200406
sub90910-02184
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-11031i200107-200406
main90201-11033i200107-200304
sub90201-11034
main90201-11034i200304-200406
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
main15330-20010i200301-200302
NO.1
sub15330-20011
main15330-20011i200302-200406
NO.1
main15330-28020i200107-200406
sub15330-28010
main15340-20010i200301-200302
NO.2
sub15340-20011
main15340-20011i200302-200406
NO.2
11102HEAD, CYLINDER, LH
main11102-09013i200107-200301
(L)
sub11102-09014
main11102-09032i200301-200309
(L)
sub11102-29058
main11102-29039i200107-200301
ENGINE NO.=0XXXXXX-4XXXXXX
sub11102-29040
main11102-29058i200406-200601
main11102-29058i200301-200406
ENGINE NO.=0XXXXXX-4XXXXXX
main11102-29075i200307-200601
11102ASENSOR, CAMSHAFT POSITION
main90080-19014i200107-200601
(L)
main90919-05013i200107-200301
main90919-05026i200107-200601
(J)
11115GASKET, CYLINDER HEAD
main11115-20030i200301-200304
sub11115-20031
main11115-20032i200304-200406
main11115-20041i200107-200301
sub11115-20042
main11115-20050i200307-200407
sub11115-20051
main11115-20051i200407
main11115-28011i200107-200304
sub11115-28012
main11115-28012i200304-200406
sub11115-28013
main11115-28012i200406-200508
*107
sub11115-28013
main11115-28012i200406-200507
*108
sub11115-28013
main11115-28013i200508-200511
*107
sub11115-28040
main11115-28013i200507-200601
*108
sub11115-28040
main11115-28040i200511-200601
*107
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
main90341-24013i200107-200406
sub90341-24011
main90341-27006i200107-200406
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
main90430-24246i200107-200406
main90430-27005i200107-200406
11122BUSH, INTAKE VALVE GUIDE
main11122-20020i200107-200406
STD
sub11122-22040
main11122-28010i200107-200406
STD
main11123-20020i200107-200406
O/S 0.05
main11123-28010i200107-200406
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
main11126-20020i200107-200406
STD
main11127-20020i200107-200406
O/S 0.05
11131SEAT, INTAKE VALVE
main11131-0H020i200511-200601
STD,(L)
main11131-28021i200507-200601
STD,(J),*108
main11131-28021i200107-200406
STD
main11131-28021i200406-200507
STD,*108
main11131-28021i200406-200508
STD,*107
main11131-28021i200508-200601
STD,(J),*107
main11131-62030i200107-200301
STD
main11131-62050i200301-200406
STD
main11132-0H020i200511-200601
O/S 0.03,(L)
main11132-28021i200107-200511
O/S 0.03
main11132-28021i200511-200601
O/S 0.03,(J)
main11132-62030i200107-200301
O/S 0.03
main11132-62050i200301-200406
O/S 0.03
11135SEAT, EXHAUST VALVE
main11135-0H020i200511-200601
STD,(L)
main11135-20040i200107-200406
STD
main11135-28030i200107-200301
STD
main11135-28040i200508-200601
STD,(J),*107
main11135-28040i200301-200406
STD
main11135-28040i200406-200507
STD,*108
main11135-28040i200406-200508
STD,*107
main11135-28040i200507-200601
STD,(J),*108
main11136-0H020i200511-200601
O/S 0.03,(L)
main11136-20040i200107-200406
O/S 0.03
main11136-28030i200107-200301
O/S 0.03
sub11136-28040
main11136-28040i200301-200511
O/S 0.03
main11136-28040i200511-200601
O/S 0.03,(J)
11155APIN, RING W/HEAD
main90253-10004i200107-200406
main90253-11021i200107-200601
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90080-10210i200504
(L),*107
main90080-10210i200112-200406
(L)
main90080-10210i200406
(L),*108
main90105-08353i200107-200406
(J)
main90119-07009i200107-200406
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90080-11292i200504-200601
(L),*107
main90080-11292i200107-200601
(L)
main90080-11292i200406-200601
(L),*108
main90119-06902i200107-200601
(J)
main90119-07009i200107-200406
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-0A011i200107-200204
sub11201-0A030
main11201-0A030i200204-200301
sub11201-20090
sub12204-20040
sub12261-20091
sub90467-14017
main11201-0A050i200301-200309
ENGINE NO.=5XXXXXX
sub11201-0A051
main11201-0H011i200406-200512
(L),*108
sub11201-28031
main11201-0H011i200107-200406
*108,(L)
sub11201-28031
main11201-0H011i200512
*108
sub11201-28031
main11201-20080i200307-200411
sub11201-20100
sub12261-20090
main11201-20080i200301-200406
ENGINE NO.=0XXXXXX-4XXXXXX
sub11201-20100
sub12261-20090
main11201-20100i200411
main11201-28013i200107-200207
*107
sub11201-28014
main11201-28013i200107-200308
(J)
sub11201-28014
main11201-28014i200406-200512
(J),*108
sub11201-28031
main11201-28014i200308-200406
(J)
sub11201-28031
main11201-28014i200207-200511
*107
sub11201-28031
main11201-28031i200511
*107
sub11201-28032
11201HBOLT(FOR CYLINDER HEAD COVER)
main90080-11295i200107-200406
(L)
main90119-06903i200107-200406
(J)
11213GASKET, CYLINDER HEAD COVER
main11213-0A010i200301-200309
ENGINE NO.=5XXXXXX
main11213-0H010i200107-200406
(L)
main11213-20020i200107-200301
main11213-20030i200307-200406
main11213-20030i200301-200406
ENGINE NO.=0XXXXXX-4XXXXXX
main11213-28021i200107-200406
(J)
12108CAP SUB-ASSY, OIL FILLER
main12180-0H010i200107-200511
(L)
sub12180-0H011
main12180-0H030i200511-200601
(L)
sub12180-0H031
main12180-28020i200107-200110
(J)
sub12180-28021
main12180-28021i200110-200601
(J)
sub12180-21021
main12180-46030i200107-200110
sub12180-46031
main12180-46031i200110-200406
12108AGASKET(FOR OIL FILLER CAP)
main12195-20020i200110-200406
main90080-43025i200107-200601
(L)
sub90430-35001
main90430-37004i200107-200601
(J)
12281AHANGER, ENGINE, NO.1
main12281-0A021i200107-200301
main12281-28010i200107-200406
12282DHANGER, ENGINE, NO.2
main12282-20020i200107-200406
main12282-28010i200107-200406
12601BCOVER SUB-ASSY, ENGINE, NO.1
main12601-28040i200107-200406
sub12601-28900
8401
8404
8716
9008010096
main90080-10096
9008010177
main90080-10177
9008010253
main90080-10253
9008011427
main90080-11427
9011606048
main90116-06048
9012606014
main90126-06014
90126A0003
main90126-A0003
9017606045
main90176-06045
90178A0032
main90178-A0032
91511B0614
main91511-B0614
91511C0632
main91511-C0632
91512B1020
main91512-B1020
91621J0612
main91621-J0612
9415080640
main94150-80640
G191732010
mainG1917-32010

42 parts on this diagram · 4 diagrams in section
