ENGINE OVERHAUL GASKET KIT

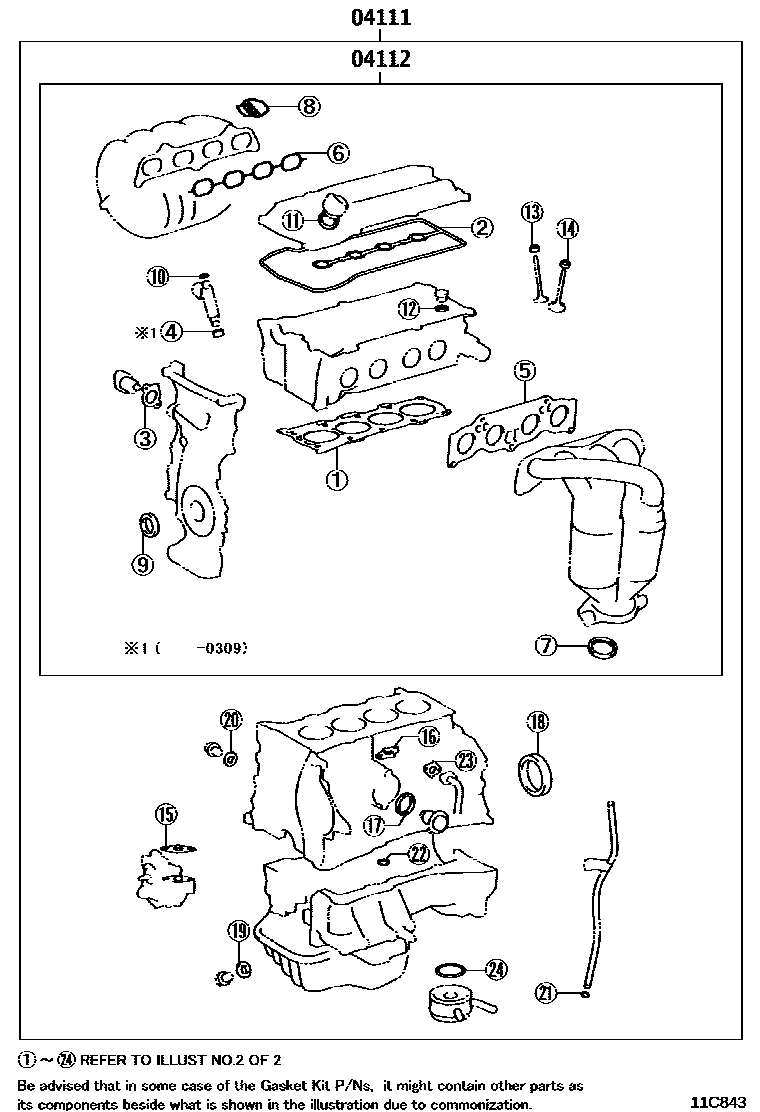

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0H070i200212-200304

CALIFORNIA SPEC

main04111-0H071i200304-200309

CALIFORNIA SPEC

main04111-20170i200107-200301

main04111-20200i200301-200304

main04111-20201i200304-200309

main04111-20210i200307-200309

main04111-20270i200309-200312

main04111-20271i200312-200406

main04111-20280i200309-200312

main04111-20281i200312-200406

main04111-20310i200406-200408

main04111-20311i200408-200601

main04111-20331i200406-200601

main04111-28130i200107-200211

main04111-28131i200211-200212

main04111-28132i200212-200304

main04111-28133i200304-200309

main04111-28260i200309-200406

main04111-28261i200508-200511

main04111-28262i200511-200601

main04111-28270i200406-200508

CALIFORNIA SPEC

main04111-28271i200508-200511

CALIFORNIA SPEC

main04111-28272i200511-200601

CALIFORNIA SPEC

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0H070i200212-200304

CALIFORNIA SPEC

main04112-0H071i200304-200309

CALIFORNIA SPEC

main04112-20160i200107-200301

main04112-20200i200307-200309

main04112-20210i200301-200304

main04112-20211i200304-200309

main04112-20260i200309-200406

main04112-20270i200309-200406

main04112-20300i200406-200408

main04112-20301i200408-200601

main04112-20311i200406-200601

main04112-28130i200107-200211

main04112-28131i200211-200212

main04112-28132i200212-200304

main04112-28133i200304-200309

main04112-28260i200309-200406

main04112-28261i200508-200511

main04112-28262i200511-200601

main04112-28270i200406-200508

CALIFORNIA SPEC

main04112-28271i200508-200511

CALIFORNIA SPEC

main04112-28272i200511-200601

CALIFORNIA SPEC

2 parts on this diagram · 16 diagrams in section
