SHORT BLOCK ASSEMBLY

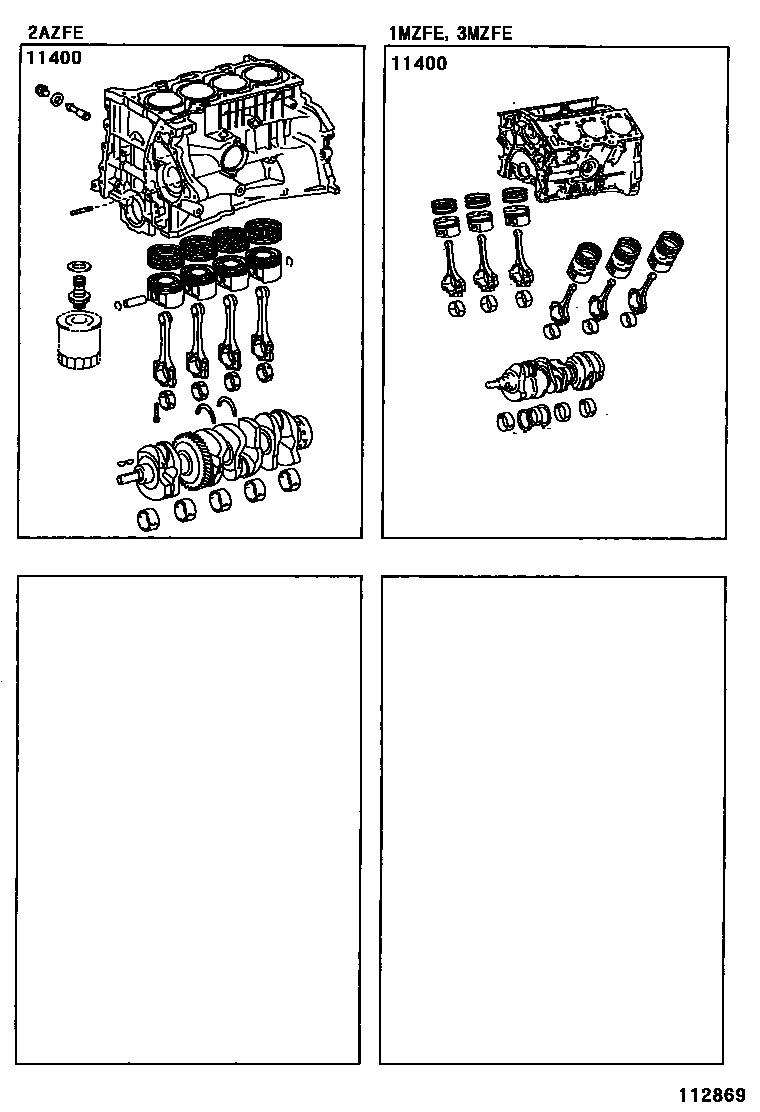

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0A091i200107-200208

(L)

main11400-0A150i200208-200301

(L)

main11400-0A170i200301-200307

(L)

main11400-0H010i200406-200601

(L); CALIFORNIA SPEC,*108

main11400-20051i200301-200309

(J)

main11400-20100i200307-200406

main11400-20140i200309-200406

main11400-28050i200406-200601

CALIFORNIA SPEC,*107

1 parts on this diagram · 1 diagram in section
