WIRING & CLAMP

0001 1ENGINE WIRE 0002 1ENGINE ROOM WIRE 0003 1COWL WIRE 0004 1INSTRUMENT PANEL WIRE 0005 1DOOR WIRE 0006 1ROOF & FLOOR WIRE 0007 1SEAT WIRE 0008 1CABLE BOND

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

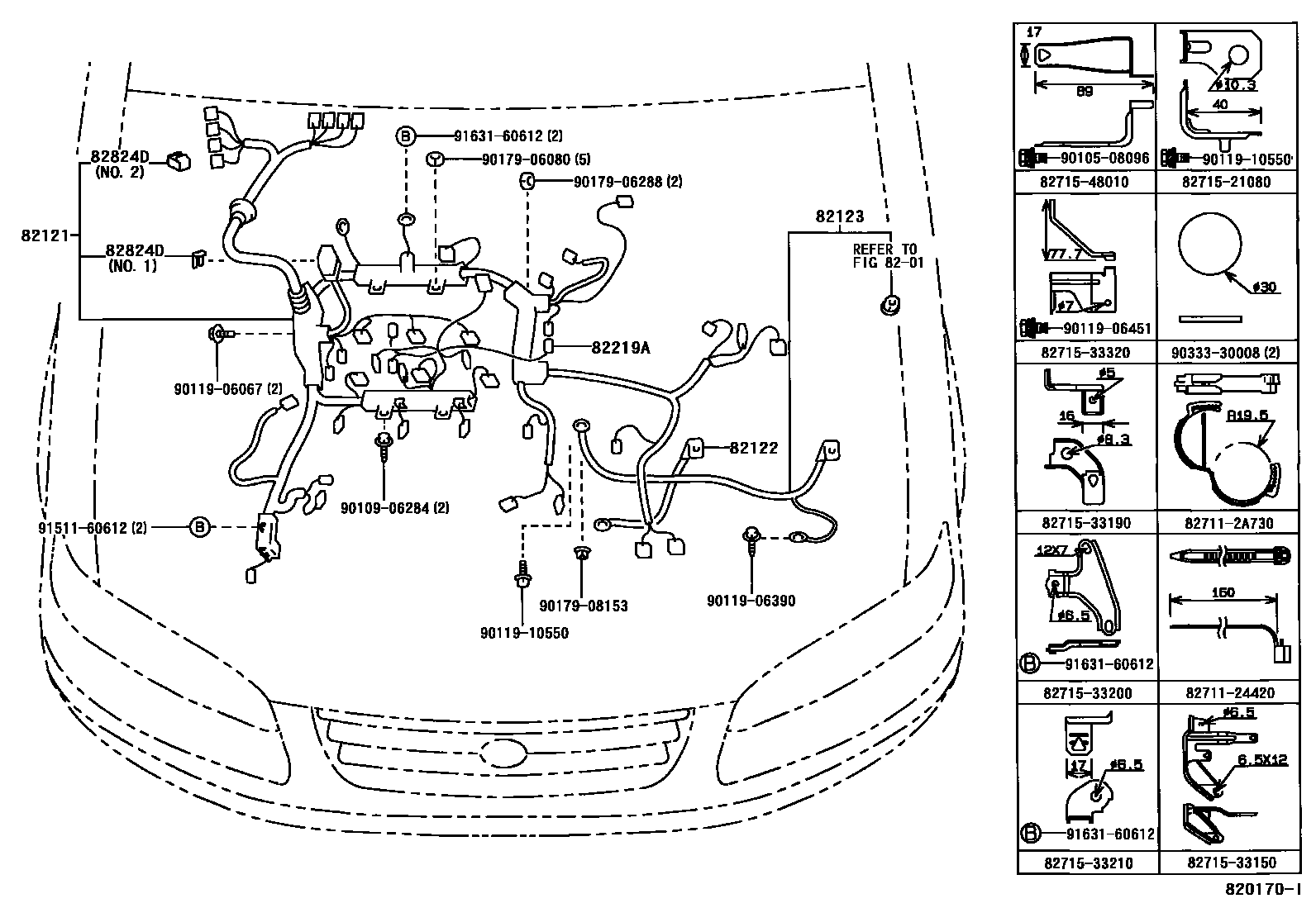

82121WIRE, ENGINE

main82121-33860iMCV20199608-199708

main82121-33890iMCV20..USA199708

BRAZIL SPEC

main82121-3T110iMCV20199708-199808

main82121-3T120iMCV20..USA199708-199808

CALIFORNIA SPEC

main82121-3T320iMCV20199808-199908

main82121-3T630iMCV20199908

82122WIRE, ENGINE, NO.2

main82122-07010iMCV20199708-199808

main82122-33020iMCV20199702-199708

82123WIRE, ENGINE, NO.3

main82123-06020iMCV20199608-199808

main82123-33010iMCV20199808

main82123-33020iMCV20..USA199808

BRAZIL SPEC

82219AWIRE, SENSOR

main82219-07010iMCV20199608-199808

main82219-33030iMCV20199808

82824DCONNECTOR, WIRING HARNESS

main82824-24010iMCV20..USA199808-199908

NO.1

main82824-50110iMCV20199908

NO.2

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A730

8271521080BRACKET,WIRING HARNESS CLAMP

main82715-21080

8271533150BRACKET,WIRING HARNESS CLAMP

main82715-33150

8271533190BRACKET,WIRING HARNESS CLAMP

main82715-33190

8271533200BRACKET,WIRING HARNESS CLAMP

main82715-33200

8271533210BRACKET,WIRING HARNESS CLAMP

main82715-33210

8271533320BRACKET,WIRING HARNESS CLAMP

main82715-33320

8271548010BRACKET,WIRING HARNESS CLAMP

main82715-48010

9010508096

main90105-08096

9010906284

main90109-06284

9011906067

main90119-06067

9011906390

main90119-06390

9011906451

main90119-06451

9011910550

main90119-10550

9017906080

main90179-06080

9017906288

main90179-06288

9017908153

main90179-08153

9033330008

main90333-30008

9151160612

main91511-60612

9163160612

main91631-60612

27 parts on this diagram · 8 diagrams in section
