ROOF HEADLINING & SILENCER PAD

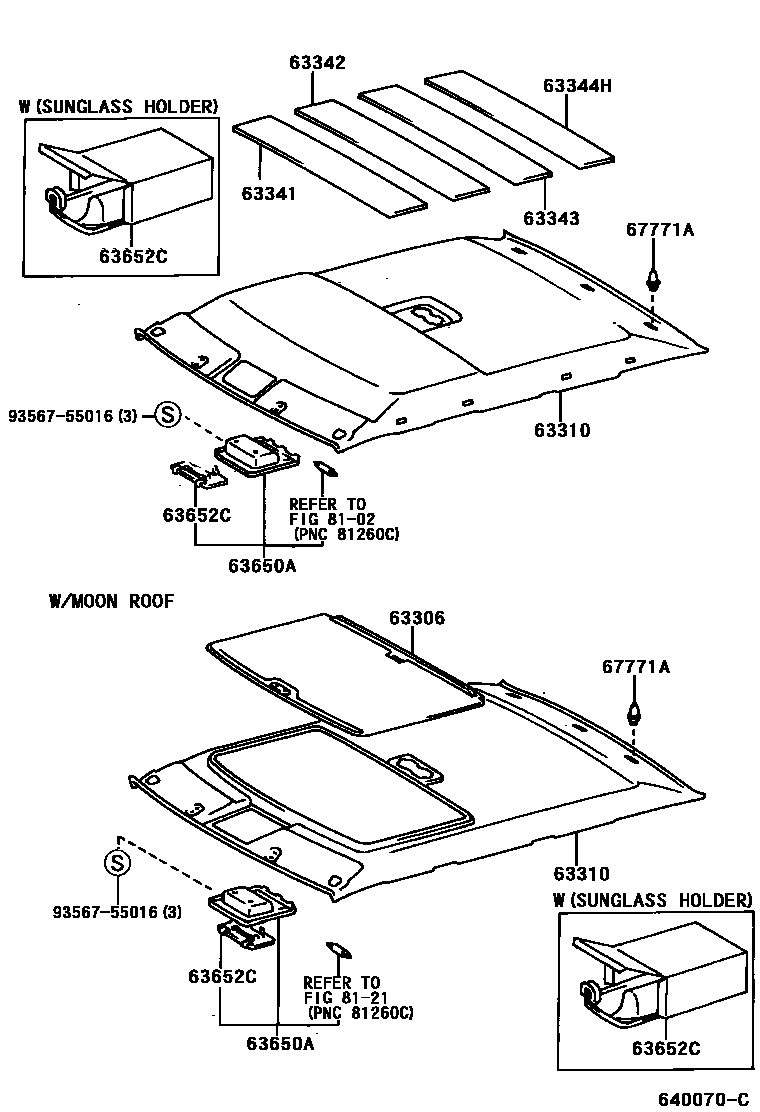

Parts diagram
63306TRIM SUB-ASSY, SUNSHADE
main63306-33050-A0i199608-200107
IVORY,TRIM0#
sub63306-33050
main63306-33050-B1i199608-200107
BLUE GRAY,TRIM2#
sub63306-33050
main63306-33050-G0i199608-200107
SAGE,TRIM6#
sub63306-33050
63310HEADLINING ASSY, ROOF
main63310-33170-A0i199608-199908
IVORY,TRIM0#
sub63310-33170
main63310-33170-B0i199608-199908
BLUE GRAY,TRIM2#
sub63310-33170
main63310-33170-G0i199608-199908
SAGE,TRIM6#
sub63310-33170
main63310-33200-A0i199608-199908
W(MOON ROOF),IVORY,TRIM0#
sub63310-33200
main63310-33200-B1i199608-199908
W(MOON ROOF),BLUE GRAY,TRIM2#
sub63310-33200
main63310-33200-G0i199608-199908
W(MOON ROOF),SAGE,TRIM6#
sub63310-33200
main63310-33280-A0i199908-200107
IVORY,TRIM0#
sub63310-33170
main63310-33280-B0i199908-200107
BLUE GRAY,TRIM2#
sub63310-33170
main63310-33280-G0i199908-200107
SAGE,TRIM6#
sub63310-33170
main63310-33290-A0i199908-200107
W(MOON ROOF),IVORY,TRIM0#
sub63310-33200
main63310-33290-B0i199908-200107
W(MOON ROOF),BLUE GRAY,TRIM2#
sub63310-33200
main63310-33290-G0i199908-200107
W(MOON ROOF),SAGE,TRIM6#
sub63310-33200
63341PAD, ROOF SILENCER, NO.1
main63343-32070i199608-199802
main63343-32070i199802
T=10.0
main63345-22050i199802
T=6.0
63342PAD, ROOF SILENCER, NO.2
main63343-32070i199608-199802
main63343-32070i199802
T=10.0
main63345-22050i199802
T=6.0
63343PAD, ROOF SILENCER, NO.3
main63343-32070i199608-199802
main63343-32070i199802
T=10.0
main63345-22050i199802
T=6.0
63344HPAD, ROOF SILENCER, NO.4
main63343-32070i199608-199802
main63343-32070i199802
T=10.0
main63345-22050i199802
T=6.0
63650ABOX ASSY, ROOF CONSOLE
main63650-0W020-A0i199608-199803
IVORY,TRIM0#
sub63650-0W021
main63650-0W020-B0i199608-199803
BLUE GRAY,TRIM2#
sub63650-0W021
main63650-0W020-G0i199608-199803
SAGE,TRIM6#
sub63650-0W021
main63650-0W030-A0i199803-199911
IVORY,TRIM0#
sub63650-0W031
main63650-0W030-B0i199803-199911
BLUE GRAY,TRIM2#
sub63650-0W031
main63650-0W030-G0i199803-199911
SAGE,TRIM6#
sub63650-0W031
main63650-0W031-A0i199911-200004
IVORY,TRIM0#
sub63650-0W032
main63650-0W031-B0i199911-200004
BLUE GRAY,TRIM2#
sub63650-0W032
main63650-0W031-G0i199911-200004
SAGE,TRIM6#
sub63650-0W032
main63650-0W032-A0i200004-200107
IVORY,TRIM0#
main63650-0W032-B0i200004-200107
BLUE GRAY,TRIM2#
main63650-0W032-G0i200004-200107
SAGE,TRIM6#
main63660-0W020-A0i199803-199911
W(MOON ROOF),IVORY,TRIM0#
sub63660-0W021
main63660-0W020-B0i199803-199911
W(MOON ROOF),BLUE GRAY,TRIM2#
sub63660-0W021
main63660-0W020-G0i199803-199911
W(MOON ROOF),SAGE,TRIM6#
sub63660-0W021
main63660-0W021-A0i199911-200004
W(MOON ROOF),IVORY,TRIM0#
sub63660-0W022
main63660-0W021-B0i199911-200004
W(MOON ROOF),BLUE GRAY,TRIM2#
sub63660-0W022
main63660-0W021-G0i199911-200004
W(MOON ROOF),SAGE,TRIM6#
sub63660-0W022
main63660-0W022-A0i200004-200107
W(MOON ROOF),IVORY,TRIM0#
sub63660-0W022
main63660-0W022-B0i200004-200107
W(MOON ROOF),BLUE GRAY,TRIM2#
sub63660-0W022
main63660-0W022-G0i200004-200107
W(MOON ROOF),SAGE,TRIM6#
sub63660-0W022
main63660-AA010-A0i199608-199803
W(MOON ROOF),IVORY,TRIM0#
sub63660-AA011
main63660-AA010-B1i199608-199803
W(MOON ROOF),BLUE GRAY,TRIM2#
sub63660-AA011
main63660-AA010-G0i199608-199803
W(MOON ROOF),SAGE,TRIM6#
sub63660-AA011
63652CCOVER, ROOF CONSOLE BOX
main63652-AA010-A0i199608-199803
IVORY,TRIM0#
sub63652-AA011
main63652-AA010-B1i199608-199803
BLUE GRAY,TRIM2#
sub63652-AA011
main63652-AA010-G0i199608-199803
SAGE,TRIM6#
sub63652-AA011
main63652-AA020-A0i199608-199610
W(SUNGLASS HOLDER),IVORY,TRIM0#
sub63652-AA021
main63652-AA020-B1i199608-199610
W(SUNGLASS HOLDER),BLUE GRAY,TRIM2#
sub63652-AA021
main63652-AA020-G0i199608-199610
W(SUNGLASS HOLDER),SAGE,TRIM6#
sub63652-AA021
main63652-AA030-A0i199610-199803
W(SUNGLASS HOLDER),IVORY,TRIM0#
sub63652-AA031
main63652-AA030-B1i199610-199803
W(SUNGLASS HOLDER),BLUE GRAY,TRIM2#
sub63652-AA031
main63652-AA030-G0i199610-199803
W(SUNGLASS HOLDER),SAGE,TRIM6#
sub63652-AA031
67771ARETAINER, ROOF HEADLINING
main67771-12040i199608
8102
8121
9356755016
main93567-55016

12 parts on this diagram · 1 diagram in section
