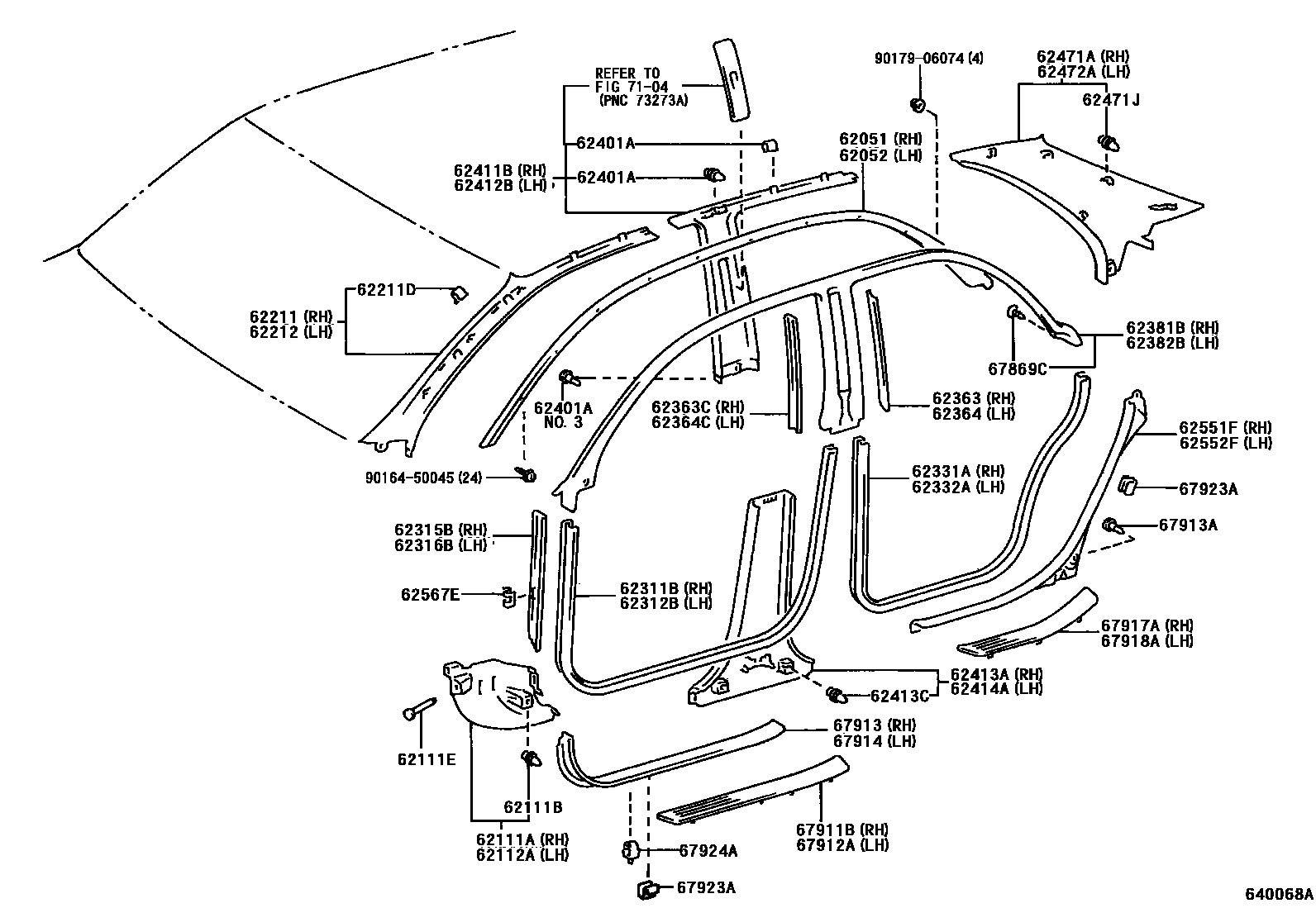

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62051RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, FRONT RH

main62051-33040iMCV20199608

62052RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, FRONT LH

main62052-33040iMCV20199608

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-33060-A0iMCV20199608-200107

IVORY,TRIM0#

main62101-33060-C0iMCV20199608-200107

BLACK,TRIM2#

main62101-33060-G0iMCV20199608-200107

SAGE,TRIM6#

62111BCLIP(FOR COWL SIDE TRIM)

main67771-33040iMCV20199612-199711

main90467-10168iMCV20199608-199612

main90467-11083iMCV20199711

62111ERETAINER, COWL SIDE TRIM

main90467-05145iMCV20199712-200107

main90467-06158-C0iMCV20199608-200107

BLACK,TRIM0#,2#,6#

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-33110-A0iMCV20199608-200107

IVORY,TRIM0#

sub62102-33120

main62102-33110-C0iMCV20199608-200107

BLACK,TRIM2#

sub62102-33120

main62102-33110-G0iMCV20199608-200107

SAGE,TRIM6#

sub62102-33120

62211GARNISH, FRONT PILLAR, RH

main62210-33030-A0iMCV20199608-199808

IVORY,TRIM0#

main62210-33030-B0iMCV20199608-199808

BLUE GRAY,TRIM2#

main62210-33030-G0iMCV20199608-199808

SAGE,TRIM6#

main62210-33070-A0iMCV20199808-200107

IVORY,TRIM0#

main62210-33070-B0iMCV20199808-200107

BLUE GRAY,TRIM2#

main62210-33070-G0iMCV20199808-200107

SAGE,TRIM6#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90468-05060iMCV20199608-199908

62212GARNISH, FRONT PILLAR, LH

main62220-33030-A0iMCV20199608-199808

IVORY,TRIM0#

main62220-33030-B0iMCV20199608-199808

BLUE GRAY,TRIM2#

main62220-33030-G0iMCV20199608-199808

SAGE,TRIM6#

main62220-33070-A0iMCV20199808-200107

IVORY,TRIM0#

main62220-33070-B0iMCV20199808-200107

BLUE GRAY,TRIM2#

main62220-33070-G0iMCV20199808-200107

SAGE,TRIM6#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-33040iMCV20199608

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62311-33040iMCV20199608

62315BCOVER, FRONT DOOR OPENING TRIM, RH

main62315-33010-A0iMCV20199608-200107

IVORY,TRIM0#

sub62315-33010

main62315-33010-C0iMCV20199608-200107

BLACK,TRIM2#

sub62315-33010

main62315-33010-G0iMCV20199608-200107

SAGE,TRIM6#

sub62315-33010

62316BCOVER, FRONT DOOR OPENING TRIM, LH

main62316-33020-A0iMCV20199608-200107

IVORY,TRIM0#

sub62316-33020

main62316-33020-C0iMCV20199608-200107

BLACK,TRIM2#

sub62316-33020

main62316-33020-G0iMCV20199608-200107

SAGE,TRIM6#

sub62316-33020

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-33040iMCV20199608

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62331-33040iMCV20199609

main62332-33040iMCV20199608-199609

sub62331-33040

62363RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH

main62371-33020iMCV20199608

62363CRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER RH

main62363-33020iMCV20199608

62364RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH

main62372-33020iMCV20199608

62364CRETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER LH

main62364-33020iMCV20199608

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-33030iMCV20199608

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-33030iMCV20199608

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-07041-C0iMCV20199608-200107

BLACK,TRIM0#,2#,6#

sub90467-07041

main90467-10168iMCV20199608-199908

NO.2

main90468-05060iMCV20199608-199908

NO.1

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-33050-A0iMCV20199608-199808

IVORY,TRIM0#

main62410-33050-B0iMCV20199608-199808

BLUE GRAY,TRIM2#

main62410-33050-G0iMCV20199608-199808

SAGE,TRIM6#

main62410-33100-A0iMCV20199808-200107

IVORY,TRIM0#

main62410-33100-B0iMCV20199808-200107

BLUE GRAY,TRIM2#

main62410-33100-G0iMCV20199808-200107

SAGE,TRIM6#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-33050-A0iMCV20199608-199808

IVORY,TRIM0#

main62420-33050-B0iMCV20199608-199808

BLUE GRAY,TRIM2#

main62420-33050-G0iMCV20199608-199808

SAGE,TRIM6#

main62420-33100-A0iMCV20199808-200107

IVORY,TRIM0#

main62420-33100-B0iMCV20199808-200107

BLUE GRAY,TRIM2#

main62420-33100-G0iMCV20199808-200107

SAGE,TRIM6#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-33040-A0iMCV20199608-200107

IVORY,TRIM0#

sub62413-33040

main62413-33040-C0iMCV20199608-200107

BLACK,TRIM2#

sub62413-33040

main62413-33040-G0iMCV20199608-200107

SAGE,TRIM6#

sub62413-33040

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10168iMCV20199608-199908

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-33040-A0iMCV20199608-200107

IVORY,TRIM0#

sub62414-33040

main62414-33040-C0iMCV20199608-200107

BLACK,TRIM2#

sub62414-33040

main62414-33040-G0iMCV20199608-200107

SAGE,TRIM6#

sub62414-33040

62471AGARNISH, ROOF SIDE, INNER RH

main62470-33050-A0iMCV20199608-200107

IVORY,TRIM0#

main62470-33050-B0iMCV20199608-200107

BLUE GRAY,TRIM2#

main62470-33050-G0iMCV20199608-200107

SAGE,TRIM6#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161iMCV20199608-199908

62472AGARNISH, ROOF SIDE, INNER LH

main62480-33050-A0iMCV20199608-200107

IVORY,TRIM0#

main62480-33050-B0iMCV20199608-200107

BLUE GRAY,TRIM2#

main62480-33050-G0iMCV20199608-200107

SAGE,TRIM6#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-33010-A0iMCV20199608-200107

IVORY,TRIM0#

sub62551-33010

main62551-33010-C0iMCV20199608-200107

BLACK,TRIM2#

sub62551-33010

main62551-33010-G0iMCV20199608-200107

SAGE,TRIM6#

sub62551-33010

62552FGARNISH, REAR SEAT SIDE, LH

main62552-33010-A0iMCV20199608-200107

IVORY,TRIM0#

sub62552-33010

main62552-33010-C0iMCV20199608-200107

BLACK,TRIM2#

sub62552-33010

main62552-33010-G0iMCV20199608-200107

SAGE,TRIM6#

sub62552-33010

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33010iMCV20199608-199710

main62567-33020iMCV20199710

67869CCLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-20030iMCV20199608

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-33020iMCV20199608-199908

main67911-33040iMCV20199908

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-33020iMCV20199608-199908

main67912-33040iMCV20199908

67913PLATE, FRONT DOOR SCUFF, RH

main67913-33020-A0iMCV20199608-200107

IVORY,TRIM0#

sub67913-33020

sub67913-33021

main67913-33020-C0iMCV20199608-200107

BLACK,TRIM2#

sub67913-33020

sub67913-33021

main67913-33020-G0iMCV20199608-200107

SAGE,TRIM6#

sub67913-33020

sub67913-33021

67913ACLIP(FOR SCUFF PLATE)

main90467-07041-C0iMCV20199608-200107

BLACK,TRIM0#,2#,6#

sub90467-07041

67914PLATE, FRONT DOOR SCUFF, LH

main67914-33020-A0iMCV20199608-200107

IVORY,TRIM0#

sub67914-33020

sub67914-33021

main67914-33020-C0iMCV20199608-200107

BLACK,TRIM2#

sub67914-33020

sub67914-33021

main67914-33020-G0iMCV20199608-200107

SAGE,TRIM6#

sub67914-33020

sub67914-33021

67917APLATE, REAR DOOR SCUFF, RH

main67915-33020iMCV20199608-199908

main67915-33040iMCV20199908

67918APLATE, REAR DOOR SCUFF, LH

main67916-33020iMCV20199608-199908

main67916-33040iMCV20199908

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main62567-33010iMCV20199608-199710

main62567-33020iMCV20199710

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-33010iMCV20199608

7104

9016450045

main90164-50045

9017906074

main90179-06074

46 parts on this diagram · 1 diagram in section
