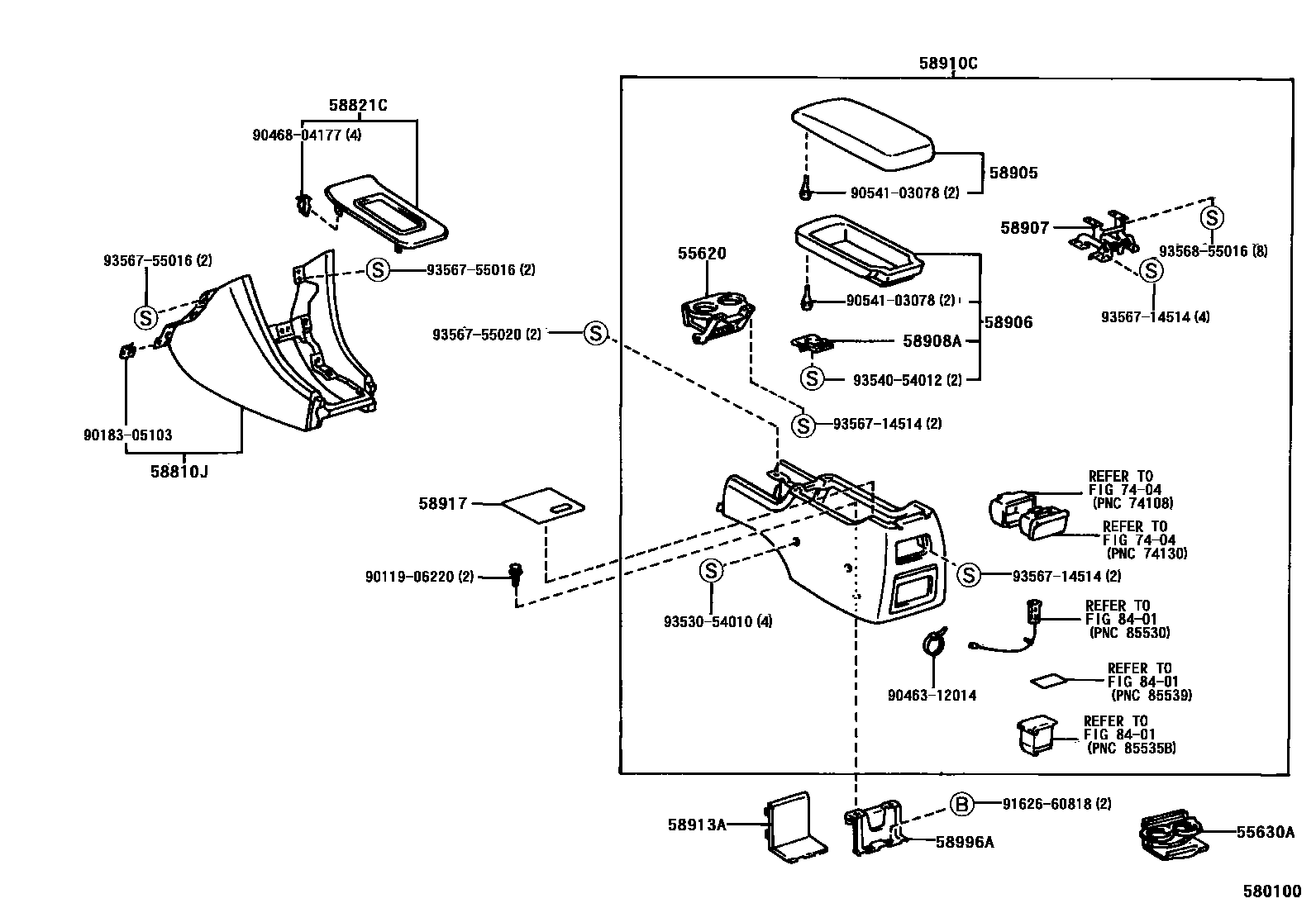

CONSOLE BOX & BRACKET
55620HOLDER ASSY, INSTRUMENT PANEL CUP
BLACK,TRIM2#
OAK,TRIM0#
DK.SAGE,TRIM6#
55630AHOLDER, REAR CONSOLE BOX, CUP
IVORY,TRIM0#
BLACK,TRIM2#
SAGE,TRIM6#
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
OAK,TRIM0#
DK.SAGE,TRIM6#
58821CPANEL, CONSOLE, UPPER
W(SEAT HEATER)
W(SEAT HEATER)
W(TEMS)
W(TEMS)
W(SEAT HEATER & TEMS)
W(SEAT HEATER & TEMS)
COACH EDITION
COACH EDITION & W(SEAT HEATER)
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
BLACK,TRIM2#
SAGE,TRIM6#
BLACK,TRIM2#
SAGE,TRIM6#
IVORY,TRIM0#
LEATHER,BLACK,TRIM2#
LEATHER,SAGE,TRIM6#
LEATHER,IVORY,TRIM0#
LEATHER,BLACK,TRIM2#
LEATHER,SAGE,TRIM6#
COACH EDITION FOR USA & HAWAII,IVORY,TRIM01
COACH EDITION,BLACK,TRIM23
58906DOOR SUB-ASSY, UPPER CONSOLE
IVORY,TRIM0#
BLACK,TRIM2#
SAGE,TRIM6#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58910CBOX ASSY, CONSOLE, REAR
BLACK,TRIM2#
DK.SAGE,TRIM6#
BLACK,TRIM2#
DK.SAGE,TRIM6#
LEATHER,BLACK,TRIM2#
OAK,TRIM0#
LEATHER,DK.SAGE,TRIM6#
LEATHER,BLACK,TRIM2#
LEATHER,OAK,TRIM0#
LEATHER,DK.SAGE,TRIM6#
COACH EDITION FOR USA & HAWAII,BLACK,TRIM21
COACH EDITION,IVORY,TRIM03
58913APANEL, BOX, NO.3
58917MAT, BOX BOTTOM, NO.2
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7404ASH RECEPTACLE
8401SWITCH & RELAY & COMPUTER
9011906220
main90119-06220
9018305103
main90183-05103
9046312014
main90463-12014
9046804177
main90468-04177
9054103078
main90541-03078
9162660818
main91626-60818
9353054010
main93530-54010
9354054012
main93540-54012
9356714514
main93567-14514
9356755016
main93567-55016
9356755020
main93567-55020
9356855016
main93568-55016
26 parts on this diagram · 1 diagram in section
