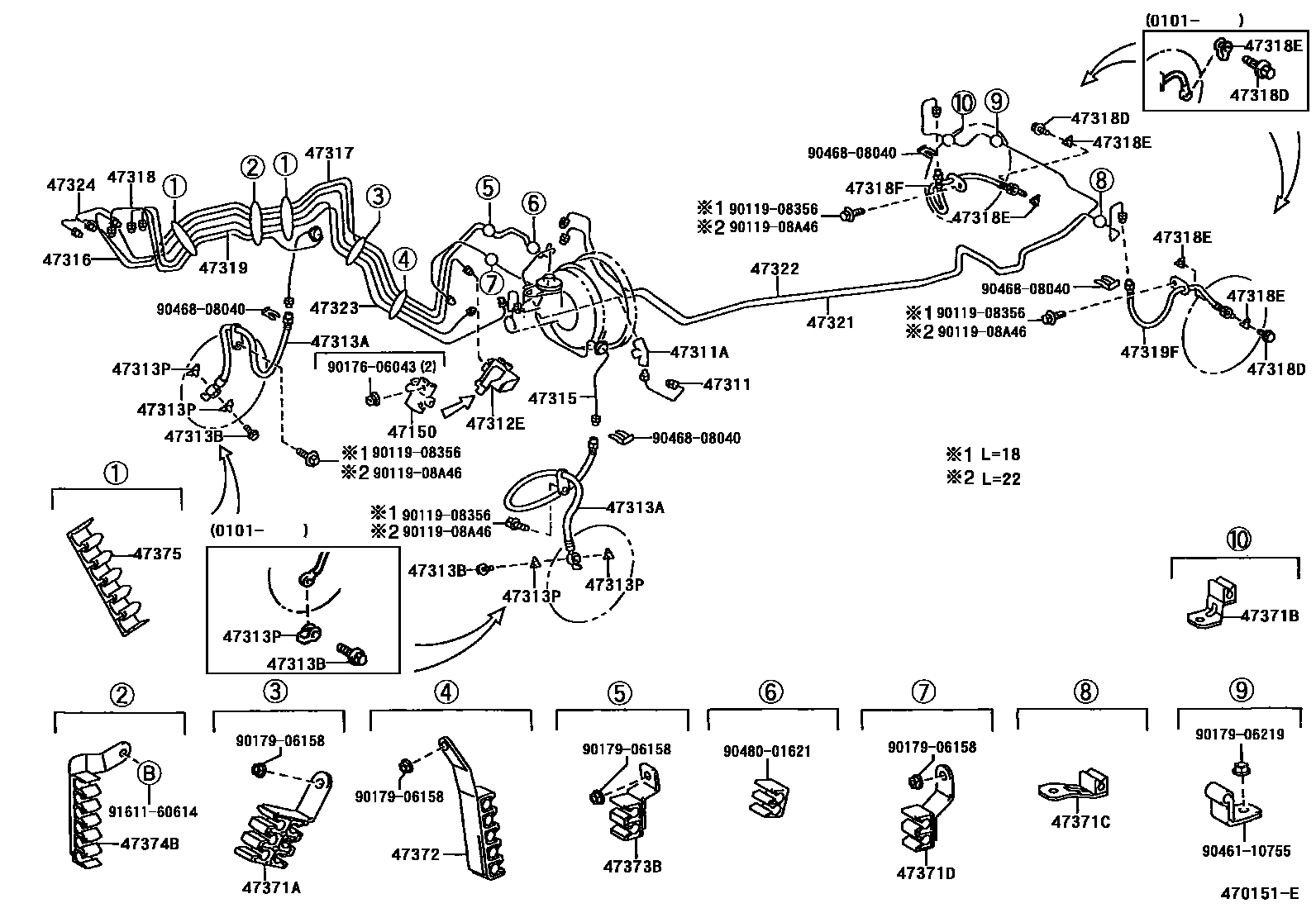

BRAKE TUBE & CLAMP

0001 1W(ABS) 0002 1W(TRACTION CONTROL) 0003 1W(VSC) 0004 1W(ABS) 0005 1W(TRACTION CONTROL) 0006 1W(VSC)

47150VALVE ASSY, PROPORTIONING

main47150-33020iMCV20199608

47311TUBE, FRONT BRAKE, NO.1

main47311-33030iMCV20..USA199608-200107

main47311-33050iMCV20199608-200107

W(TRACTION CONTROL)

main47311-33060iMCV20199808-200107

W(VSC)

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-12025iMCV20..USA199608-199808

main90904-12039iMCV20199608-200107

W(TRACTION CONTROL)

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12038iMCV20199608

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02875iMCV20199608

RH

main90947-02876iMCV20199608

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iMCV20199608-200101

main90401-10058×2iMCV20200101

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iMCV20199608-200101

main47389-50020×2iMCV20200101

47315TUBE, FRONT BRAKE, NO.5

main47315-33060iMCV20199608

47316TUBE, FRONT BRAKE, NO.6

main47316-33070iMCV20..USA199608

main47316-33100iMCV20199608

W(TRACTION CONTROL)

main47316-33130iMCV20199808

W(VSC)

47317TUBE, FRONT BRAKE, NO.7

main47317-33060iMCV20..USA199608

main47317-33090iMCV20199608

W(TRACTION CONTROL)

main47317-33120iMCV20199808

W(VSC)

47318TUBE, FRONT BRAKE, NO.8

main47318-33040iMCV20..USA199608

main47318-33050iMCV20199608

W(TRACTION CONTROL)

main47318-33060iMCV20199808

W(VSC)

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iMCV20199608-200101

main90401-10058×2iMCV20200101

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010×4iMCV20199608-200101

main47389-50020×2iMCV20200101

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02877iMCV20199608

47319TUBE, FRONT BRAKE, NO.9

main47319-33030iMCV20..USA199608

main47319-33080iMCV20199608

W(TRACTION CONTROL)

main47319-33100iMCV20199808

W(VSC)

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02878iMCV20199608

47321TUBE, REAR BRAKE, NO.1

main47321-33020iMCV20199608-199908

main47321-33120iMCV20199908

47322TUBE, REAR BRAKE, NO.2

main47322-33020iMCV20199608

47323TUBE, REAR BRAKE, NO.3

main47323-33040iMCV20..USA199608

main47323-33090iMCV20199608

W(TRACTION CONTROL)

main47323-33130iMCV20199808

W(VSC)

47324TUBE, REAR BRAKE, NO.4

main47324-33040iMCV20..USA199608

main47324-33090iMCV20199608

W(TRACTION CONTROL)

main47324-33130iMCV20199808

W(VSC)

47371ACLAMP, BRAKE TUBE, NO.1

main47371-33110iMCV20199608

47371BCLAMP, BRAKE TUBE, NO.6

main47371-32130iMCV20199608

47371CCLAMP, BRAKE TUBE, NO.7

main47371-32140iMCV20199608

47371DCLAMP, BRAKE TUBE, NO.8

main47371-33090iMCV20199608

47372CLAMP, BRAKE TUBE, NO.2

main47371-33120iMCV20199608

W(TRACTION CONTROL)

main47371-33240iMCV20199808

47373BCLAMP, BRAKE TUBE, NO.3

main47371-33130iMCV20199608

47374BCLAMP, BRAKE TUBE, NO.4

main47371-33100iMCV20199608

main47371-33270iMCV20199808

W(VSC)

47375CLAMP, BRAKE TUBE, NO.5

main47372-33010×2iMCV20199808

W(VSC)

main90949-01A60×2iMCV20199608

9011908356

main90119-08356

9011908A46

main90119-08A46

9017606043

main90176-06043

9017906158

main90179-06158

9017906219

main90179-06219

9046110755

main90461-10755

9046808040

main90468-08040

9048001621

main90480-01621

9161160614

main91611-60614

37 parts on this diagram · 6 diagrams in section
