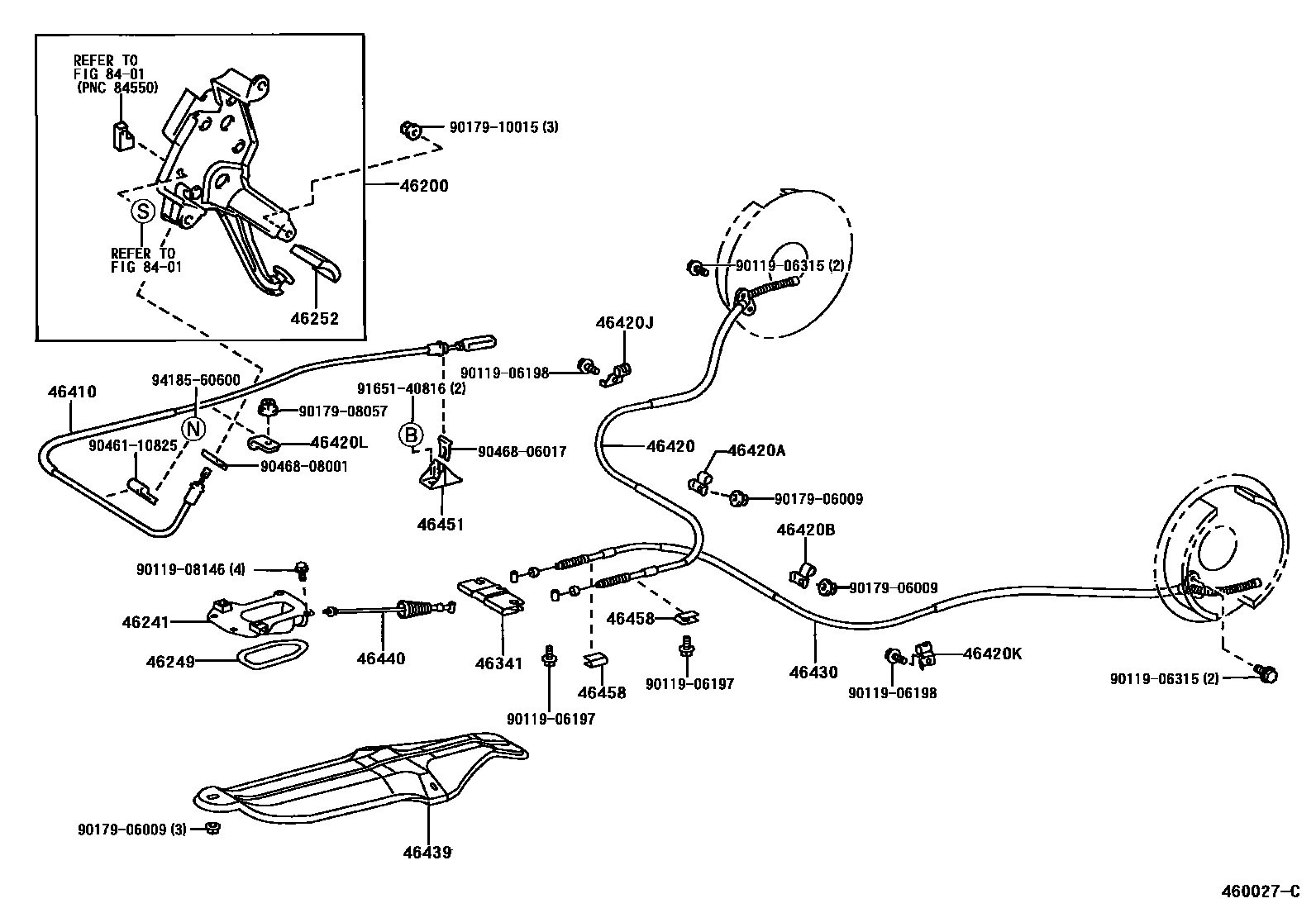

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-0W010iMCV20199608

46241BOOT, PARKING BRAKE LEVER

main46241-33040iMCV20199608

46249SHIELD, PARKING BRAKE HOLE

main46249-32020iMCV20199608

46252PAD, PARKING PEDAL

main46252-0W010iMCV20199608

46341EQUALIZER, PARKING BRAKE

main46341-33010iMCV20199608

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-33080iMCV20199608

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-33050iMCV20199608

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01663iMCV20199608

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01B08iMCV20199608

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01A66iMCV20199608

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01A67iMCV20199608

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main90949-01A68iMCV20199608

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-33050iMCV20199608

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46439-33010iMCV20199608

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-33020iMCV20199608

46451BRACKET, CABLE SUPPORT

main46451-33040iMCV20199608

46458RETAINER, CABLE

main46458-28010×2iMCV20199608

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906197

main90119-06197

9011906198

main90119-06198

9011906315

main90119-06315

9011908146

main90119-08146

9017906009

main90179-06009

9017908057

main90179-08057

9017910015

main90179-10015

9046110825

main90461-10825

9046806017

main90468-06017

9046808001

main90468-08001

9165140816

main91651-40816

9418560600

main94185-60600

30 parts on this diagram · 2 diagrams in section
