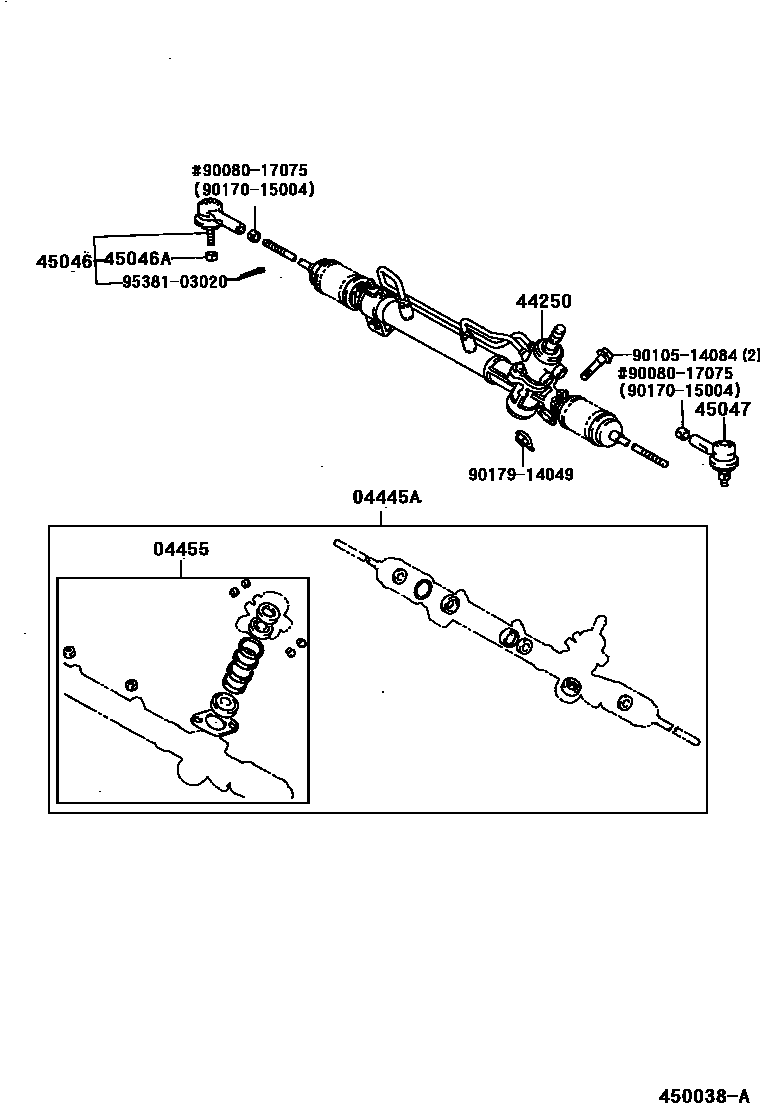

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-33050iMCV20199608-199610

sub04445-33070

main04445-33070iMCV20199610-199708

main04445-33080iMCV20199708

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-33020iMCV20199608

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-06120iMCV20199608-199708

(L)

sub44250-07061

main44250-33160iMCV20199608-199708

(J)

sub44250-33260

main44250-33260iMCV20199708

45046END SUB-ASSY, TIE ROD, RH

main45046-09020iMCV20199608-199708

(L)

main45046-29255iMCV20199608-199708

(J)

main45046-29255iMCV20199708

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iMCV20199608

45047END SUB-ASSY, TIE ROD, LH

main45046-09020iMCV20199608-199708

(L)

main45046-29255iMCV20199608-199708

(J)

main45046-29255iMCV20199708

9008017075

main90080-17075

9010514084

main90105-14084

9017015004

main90170-15004

9017914049

main90179-14049

9538103020

main95381-03020

11 parts on this diagram · 2 diagrams in section
