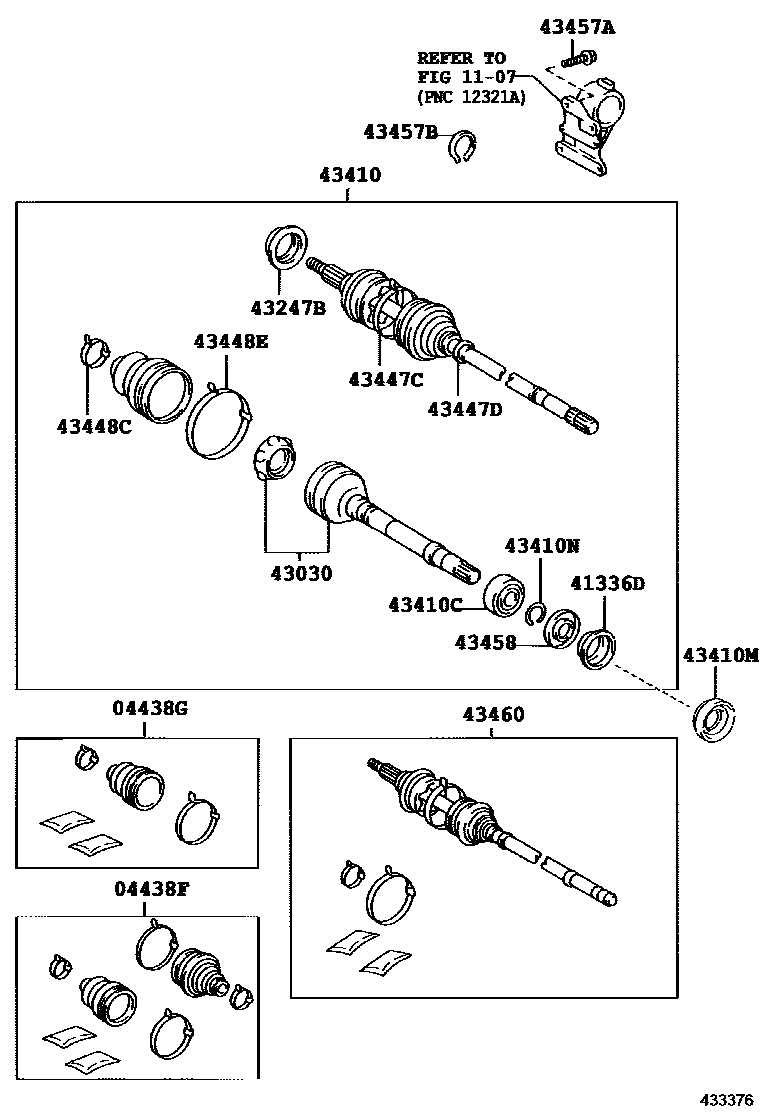

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-06100199608

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-06090199608

1107MOUNTING

→ Go to FIG 11-07

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020199608

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-06040199608

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-06010199608

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06170199608

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-41002199911

main90369-41001199608-199911

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40010199608-200012

main90311-40028200012

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013199608

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06060199608

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-06070199608

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90080-46084199608-199705

main90080-46238199705

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90080-46173199608

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461199608

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002199608

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020199608

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-09340199608

18 parts on this diagram · 2 diagrams in section
