FRONT AXLE HOUSING & DIFFERENTIAL

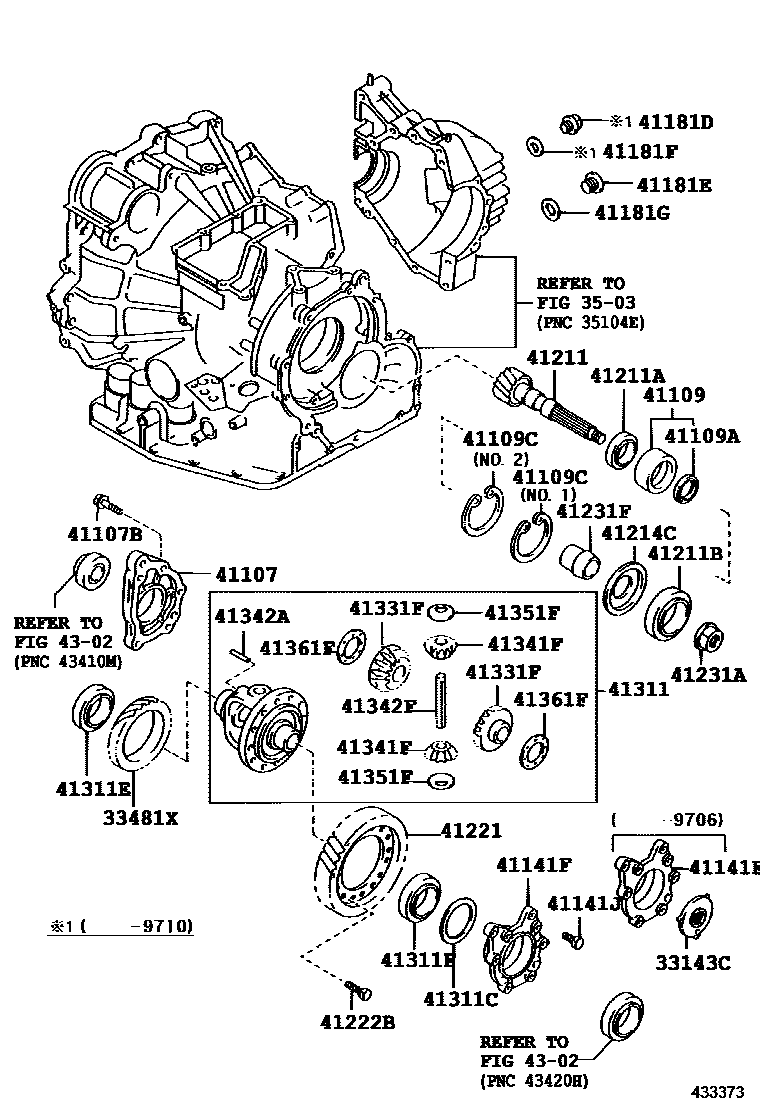

Parts diagram
33143CBAFFLE, FRONT DIFFERENTIAL OIL
main33143-33010i199608-199706
33481XGEAR, SPEEDOMETER DRIVE
main33481-33030i199608-199808
3503TRANSMISSION CASE & OIL PAN (ATM)
→ Go to FIG 35-03
41107RETAINER SUB-ASSY, FRONT DIFFERENTIAL OIL SEAL
main41107-33010i199608-199808
main41107-33030i199905
41107BBOLT (FOR FRONT DIFFERENTIAL OIL SEAL RETAINER)
main90105-08331×4i199608-199808
41109CAGE SUB-ASSY, DIFFERENTIAL DRIVE PINION BEARING
main41109-33020i199608-199808
41109ASEAL, OIL (FOR DIFFERENTIAL DRIVE PINION BEARING CAGE)
main90310-35007i199608-199808
41109CRING, HOLE SNAP (FOR DIFF. DRIVE PINION BEARING CAGE)
main90521-79008i199608-199808
NO.2
main90521-83002i199808
NO.1
41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING
main41101-33020i199608-199706
main41101-33050i199706-199808
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
main90105-08050×6i199808
*8-1.25PX28-28
main90105-08062×6i199908
*8-1.25PX29-24
main90109-08242i199608-199808
*8-1.25PX36-23
41181DPLUG (FOR FRONT DIFFERENTIAL FILLER)
main90341-18002i199608-199710
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
main90341-18021i199608
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
main90430-18008i199608-199710
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
main90430-18008i199608
41211PINION, DIFFERENTIAL DRIVE
main41211-33040i199808
TYPE A:REFER TO ILLUSTRATION
main41211-33090i199808
TYPE B:REFER TO ILLUSTRATION
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
main90366-36003i199608-199808
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
main90366-40074i199608-199808
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
main41214-33010i199608-199808
41221GEAR, FRONT DIFFERENTIAL RING
main41221-33040i199608-199808
main41221-33090i199808
TYPE B:REFER TO ILLUSTRATION
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
main90105-12154×12i199608-199808
41231ANUT, DRIVE PINION LOCK
main90179-24006i199608-199808
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
main41231-33010i199608-199808
41311CASE, FRONT DIFFERENTIAL
main41301-33020i199608-199808
main41301-48010i199808
TYPE B:REFER TO ILLUSTRATION
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
main90564-76001i199608-199808
T=2.00,MARK 0
main90564-76002i199608-199808
T=2.05,MARK 1
main90564-76003i199808
T=2.10,MARK 2,TYPE A:REFER TO ILLUSTRATION
main90564-76004i199808
T=2.15,MARK 3,TYPE A:REFER TO ILLUSTRATION
main90564-76005i199608-199808
T=2.20,MARK 4
main90564-76006i199608-199808
T=2.25,MARK 5
main90564-76007i199808
T=2.30,MARK 6,TYPE A:REFER TO ILLUSTRATION
main90564-76008i199808
T=2.35,MARK 7,TYPE A:REFER TO ILLUSTRATION
main90564-76009i199808
T=2.40,MARK 8,TYPE A:REFER TO ILLUSTRATION
main90564-76010i199608-199808
T=2.45,MARK 9
main90564-76011i199608-199808
T=2.50,MARK A
main90564-76012i199608-199808
T=2.55,MARK B
main90564-76013i199608-199808
T=2.60,MARK C
main90564-76014i199608-199808
T=2.65,MARK D
main90564-76015i199608-199808
T=2.70,MARK E
main90564-76016i199608-199808
T=2.75,MARK F
main90564-76017i199808
T=2.80,MARK G,TYPE A:REFER TO ILLUSTRATION
main90564-76018i199608-199808
T=2.85,MARK H
main90564-79001i199808
T=2.00,MARK 0,TYPE B:REFER TO ILLUSTRATION
main90564-79002i199808
T=2.05,MARK 1,TYPE B:REFER TO ILLUSTRATION
main90564-79003i199808
T=2.10,MARK 2,TYPE B:REFER TO ILLUSTRATION
main90564-79004i199808
T=2.15,MARK 3,TYPE B:REFER TO ILLUSTRATION
main90564-79005i199808
T=2.20,MARK 4,TYPE B:REFER TO ILLUSTRATION
main90564-79006i199808
T=2.25,MARK 5,TYPE B:REFER TO ILLUSTRATION
main90564-79007i199808
T=2.30,MARK 6,TYPE B:REFER TO ILLUSTRATION
main90564-79008i199808
T=2.35,MARK 7,TYPE B:REFER TO ILLUSTRATION
main90564-79009i199808
T=2.40,MARK 8,TYPE B:REFER TO ILLUSTRATION
main90564-79010i199808
T=2.45,MARK 9,TYPE B:REFER TO ILLUSTRATION
main90564-79011i199808
T=2.50,MARK A,TYPE B:REFER TO ILLUSTRATION
main90564-79012i199808
T=2.55,MARK B,TYPE B:REFER TO ILLUSTRATION
main90564-79013i199808
T=2.60,MARK C,TYPE B:REFER TO ILLUSTRATION
main90564-79014i199808
T=2.65,MARK D,TYPE B:REFER TO ILLUSTRATION
main90564-79015i199808
T=2.70,MARK E,TYPE B:REFER TO ILLUSTRATION
main90564-79016i199808
T=2.75,MARK F,TYPE B:REFER TO ILLUSTRATION
main90564-79017i199808
T=2.80,MARK G,TYPE B:REFER TO ILLUSTRATION
main90564-79018i199808
T=2.85,MARK H,TYPE B:REFER TO ILLUSTRATION
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
main90366-50057i199808
TYPE B:REFER TO ILLUSTRATION
main90366-57026i199608-199808
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
main90366-50030i199808
TYPE A:REFER TO ILLUSTRATION
main90366-50057i199808
TYPE B:REFER TO ILLUSTRATION
41331FGEAR, FRONT DIFFERENTIAL SIDE
main41331-33010×2i199608
41341FPINION, FRONT DIFFERENTIAL
main41341-24010×2i199608-199808
main41341-48010×2i199808
TYPE B:REFER TO ILLUSTRATION
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
main90250-06058i199608
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
main41342-33010i199608-199808
main41342-48010i199808
TYPE B:REFER TO ILLUSTRATION
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
main41351-33011×2i199608
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
main41361-33010×2i199608
T=1.625
main41362-33080×2i199608
T=1.725
main41363-33010×2i199608
T=1.825
