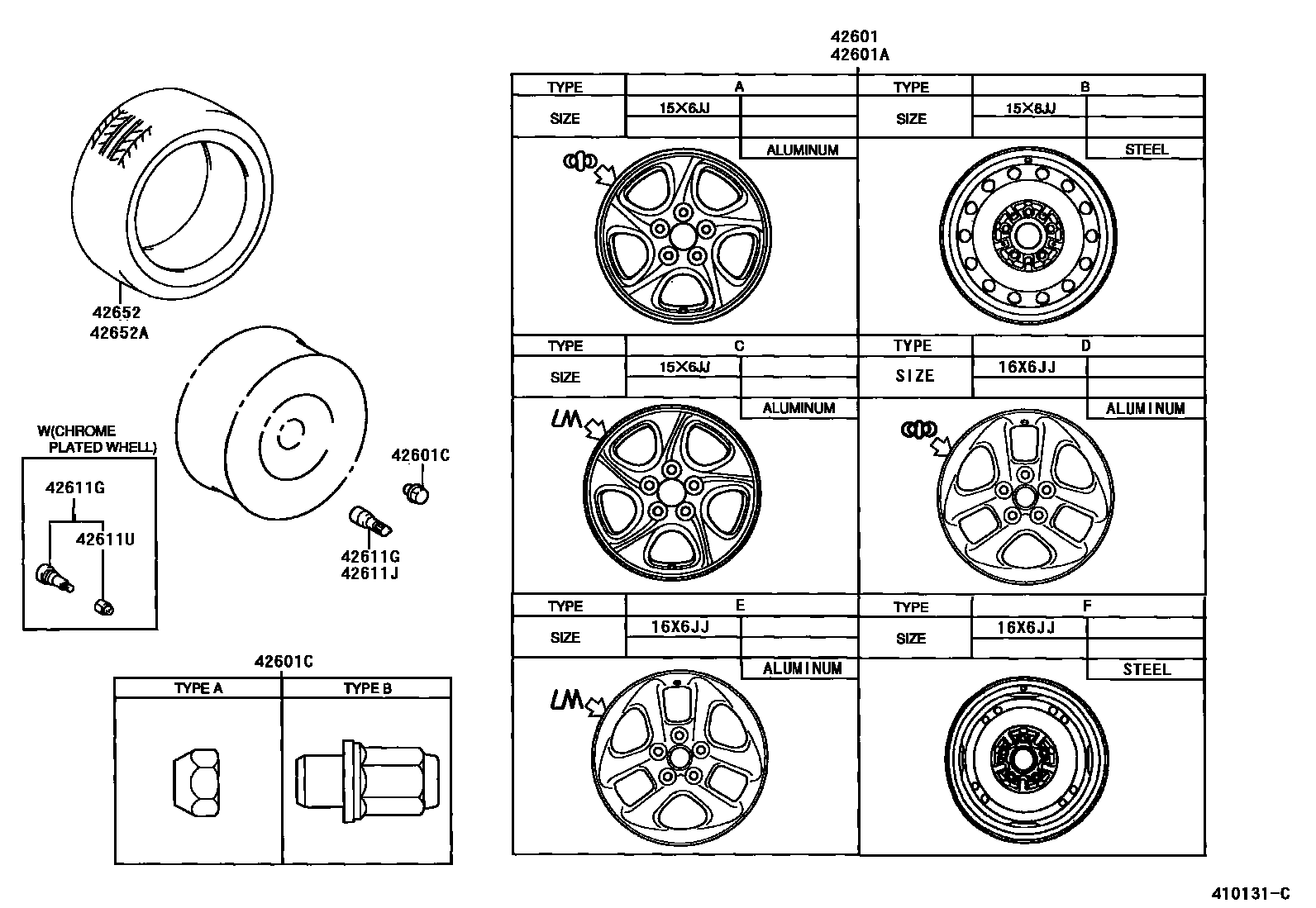

DISC WHEEL & WHEEL CAP
42601WHEEL, DISC
15X6JJ,OFFSET 45,#,COACH EDITION FOR USA & HAWAII, TYPE B:REFER TO ILLUSTRATION
15X6JJ,OFFSET 45,TYPE A:REFER TO ILLUSTRATION
15X6JJ,TYPE C:REFER TO ILLUSTRATION
15X6JJ,CHROME PLATED,TYPE A:REFER TO ILLUSTRATION
16X6JJ,OFFSET 45,TYPE D:REFER TO ILLUSTRATION
16X6JJ,OFFSET 45,TYPE E:REFER TO ILLUSTRATION
16X6JJ,CHROME PLATED,TYPE E:REFER TO ILLUSTRATION
42601AWHEEL, DISC (FOR SPARE)
15X6JJ,OFFSET 45,#,TYPE B:REFER TO ILLUSTRATION,BLACK
16X6JJ,0FFSET 45,TYPE F:REFER TO ILLUSTRATION
42601CNUT, HUB (FOR AXLE)
42611GVALVE (FOR TUBELESS TIRE)
W(CHROME PLATED WHEEL)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
42652TIRE
205/60R16 91V,*B/S
205/60R15 92V
205/65R15 92V,*B/S
205/65R15 92V,*D/L
42652ATIRE (FOR SPARE)
205/60R16,MICHELIN
205/60R16 91V,*B/S
205/60R15 92V
205/65R15 92V,*B/S
205/65R15 92V,*D/L,NO.1
8 parts on this diagram · 3 diagrams in section
