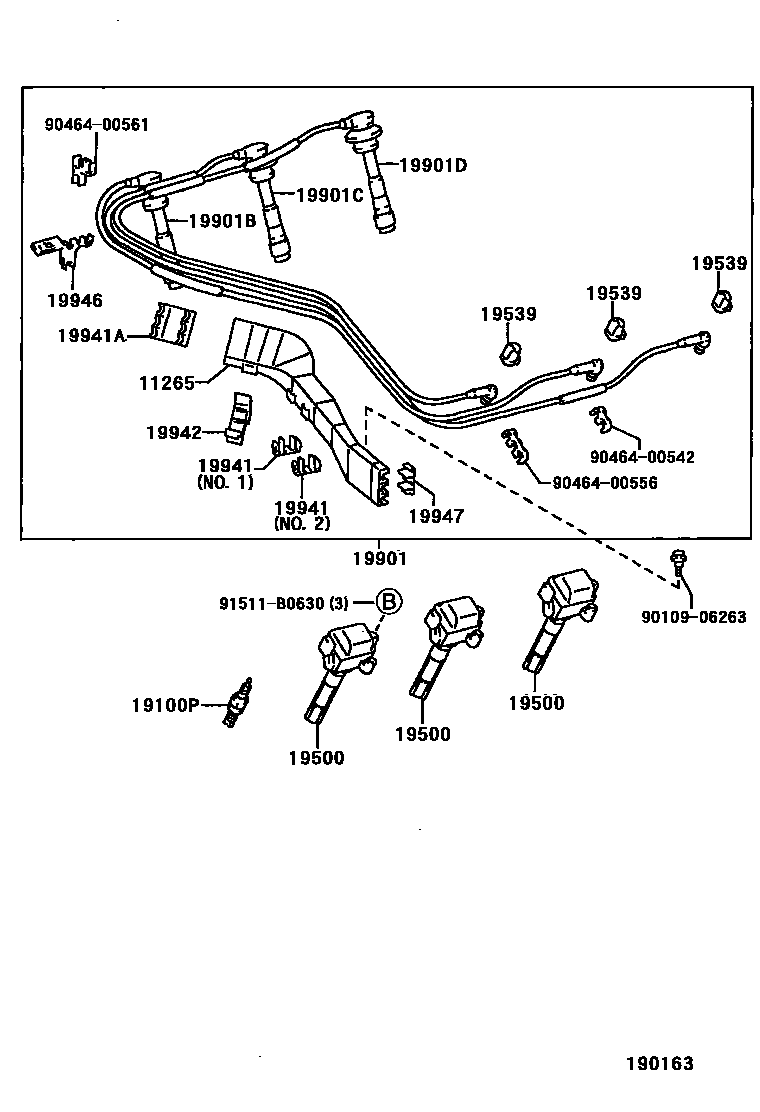

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1W/O(VVT) 0003 1

11265COVER, COIL & RESISTIVE CORD, UPR

main11265-20020i1MZFE..MCV20199608-199808

19100PPLUG, SPARK

main90919-01194×6i1MZFE..MCV20..USA199808-200107

PK20TR11,W/O(VVT)

main90919-01195×6i1MZFE..MCV20199608-199808

BKR6EKPB11

main90919-01210×6i1MZFE..MCV20199808-200107

SK20R11

19500COIL ASSY, IGNITION

main90919-02215×3i1MZFE..MCV20..USA199808

W/O(VVT)

main90919-02234×6i1MZFE..MCV20199808

19539HOLDER, RESISTIVE CODE, NO.4

main19539-11040×3i1MZFE..MCV20199608-199808

19901CORD SET, COIL & SPARK, W/RESISTIVE

main19037-20020i1MZFE..MCV20199608-199808

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-15493i1MZFE..MCV20199608-199808

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-15494i1MZFE..MCV20199608-199808

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-15495i1MZFE..MCV20..USA199808

W/O(VVT)

19941CLAMP, RESISTIVE CORD, NO.1

main19941-20010i1MZFE..MCV20199608-199808

NO.1

main19941-20020i1MZFE..MCV20199608-199808

NO.2

19941ACLAMP(FOR RESISTIVE CORD)

main19941-65040i1MZFE..MCV20..USA199808

W/O(VVT)

19942CLAMP, RESISTIVE CORD, NO.2

main19942-20010i1MZFE..MCV20199608-199808

19946CLAMP, RESISTIVE CORD, NO.3

main19946-20010i1MZFE..MCV20199608-199808

19947CLAMP, RESISTIVE CORD, NO.4

main19947-20010i1MZFE..MCV20199608-199808

9010906263

main90109-06263

9046400542

main90464-00542

9046400556

main90464-00556

9046400561

main90464-00561

91511B0630

main91511-B0630

18 parts on this diagram · 2 diagrams in section
