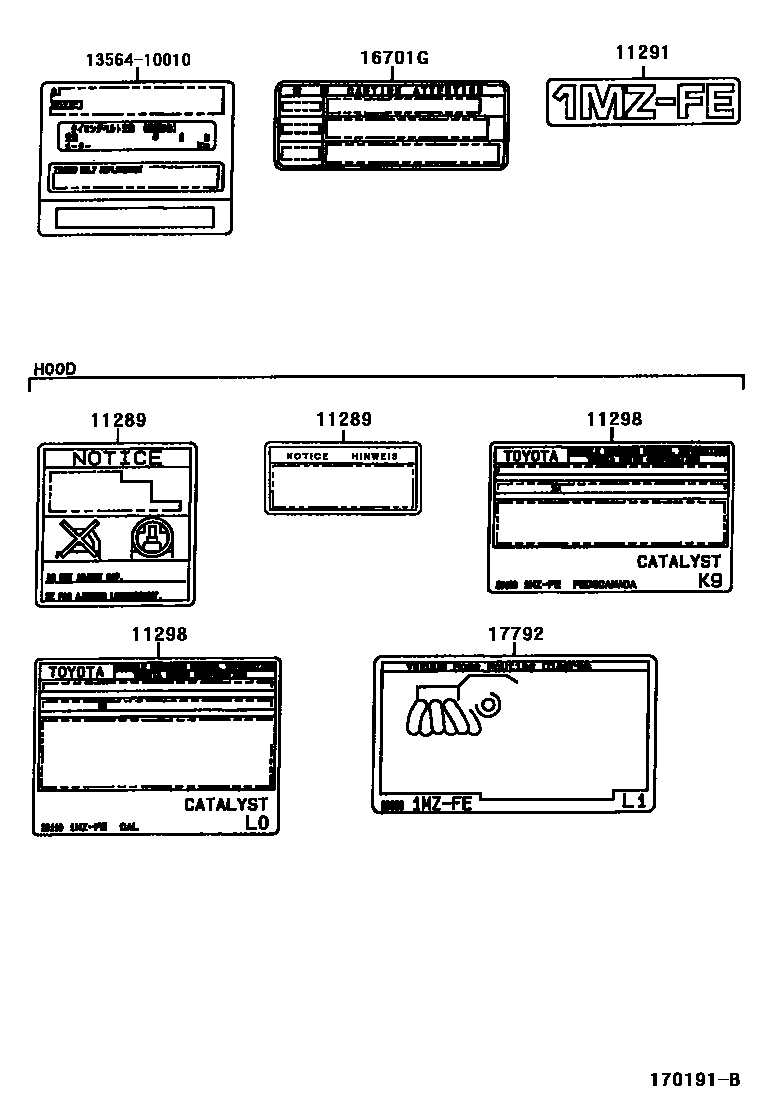

CAUTION PLATE & NAME PLATE (ENGINE)

11289PLATE, SPARK PLUG CAUTION

main11289-20010i1MZFE..MCV20199608-199808

main11289-50010i1MZFE..MCV20199808

11291PLATE, ENGINE NAME

main11291-20010i1MZFE..MCV20..USA199708

11298PLATE, EMISSION CONTROL INFORMATION

main11298-20100i1MZFE..MCV20199608-199708

main11298-20110i1MZFE..MCV20..USA199608-199708

CALIFORNIA SPEC

main11298-20200i1MZFE..MCV20199708-199808

main11298-20210i1MZFE..MCV20..USA199708-199808

CALIFORNIA SPEC

main11298-20251i1MZFE..MCV20199808-199908

main11298-20350i1MZFE..MCV20199908-200008

main11298-20410i1MZFE..MCV20200008

16701GLABEL, CAUTION

main88723-20080i1MZFE..MCV20199608-199704

main88723-20081i1MZFE..MCV20199704

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-20060i1MZFE..MCV20199608-199708

main17792-20100i1MZFE..MCV20199708-199808

main17792-20120i1MZFE..MCV20199808-199908

main17792-20190i1MZFE..MCV20199908

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

6 parts on this diagram · 1 diagram in section
