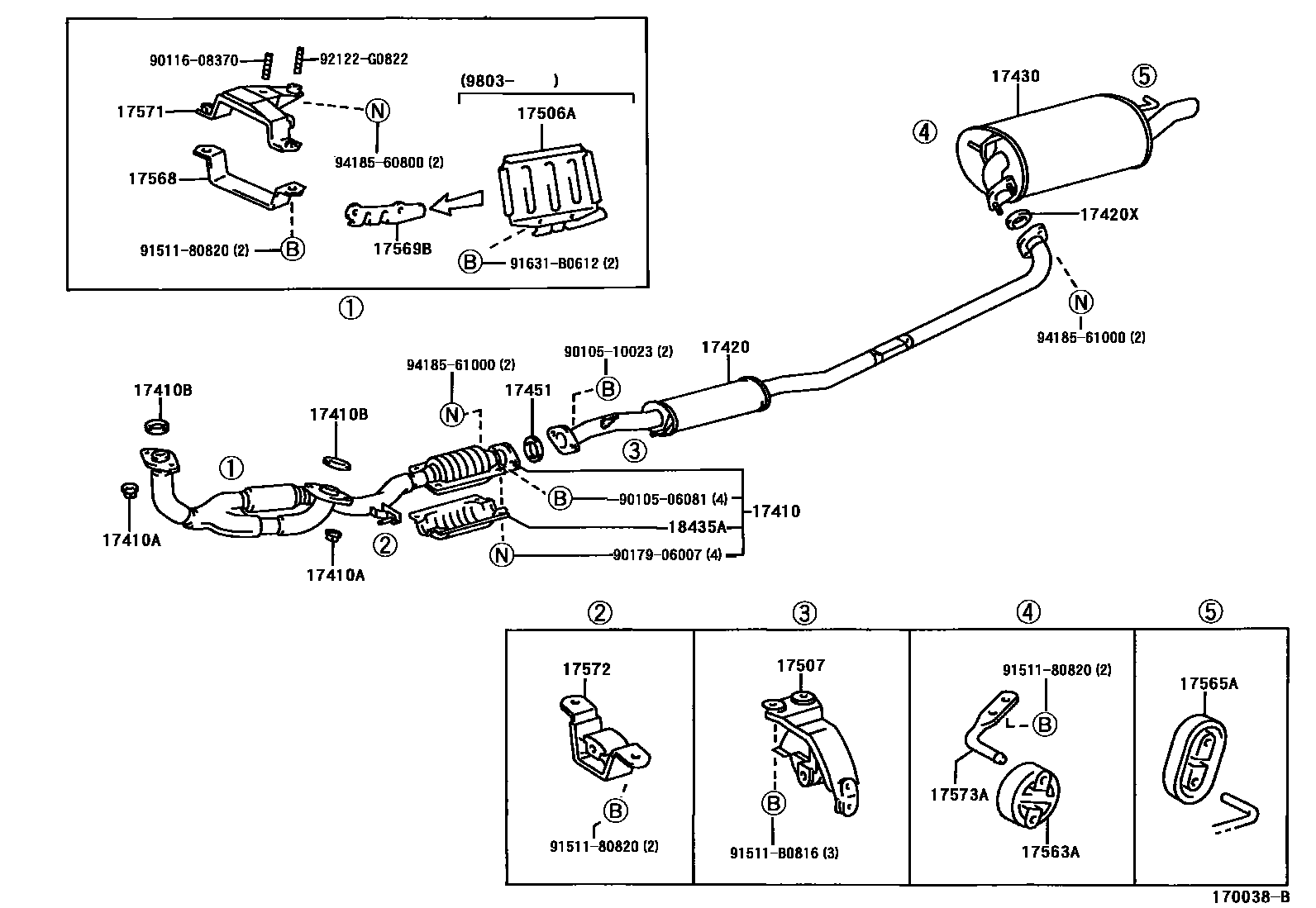

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
BRAZIL SPEC
CALIFORNIA SPEC
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
BRAZIL SPEC
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
BRAZIL SPEC
17451GASKET, EXHAUST PIPE
BRAZIL SPEC
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17568STAY, EXHAUST PIPE SUPPORT
17569BSTAY, EXHAUST PIPE SUPPORT, NO.2
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
BRAZIL SPEC
BRAZIL SPEC
17572BRACKET, EXHAUST PIPE NO.1 SUPPORT
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
NO.1
18435APROTECTOR, MONOLITHIC CONVERTER
9010506081
main90105-06081
9010510023
main90105-10023
9011608370
main90116-08370
9017906007
main90179-06007
9151180820
main91511-80820
91511B0816
main91511-B0816
91631B0612
main91631-B0612
92122G0822
main92122-G0822
9418560800
main94185-60800
9418561000
main94185-61000
27 parts on this diagram · 3 diagrams in section
