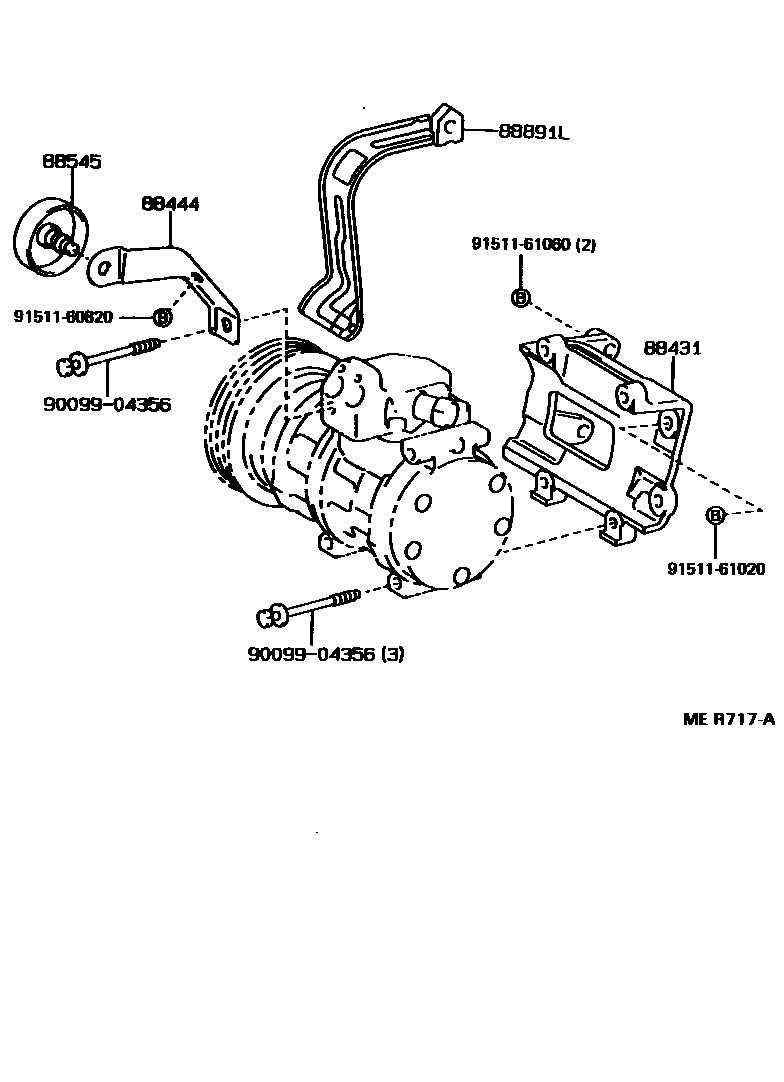

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-33010iVCV10199107-199308

main88431-33020iMCV10199308-199608

88444BRACKET, IDLE PULLEY

main88444-33010iVCV10199107-199109

main88444-33011iVCV10199109-199208

main88444-33012iVCV10199208-199308

88545PULLEY ASSY, IDLE

main88440-33010iVCV10199107-199308

88891LCOVER, COOLER, NO.1

main88891-33040iVCV10199109-199208

main88891-33041iVCV10199208-199308

9009904356

main90099-04356

9151160820

main91511-60820

9151161020

main91511-61020

9151161060

main91511-61060

8 parts on this diagram · 4 diagrams in section
