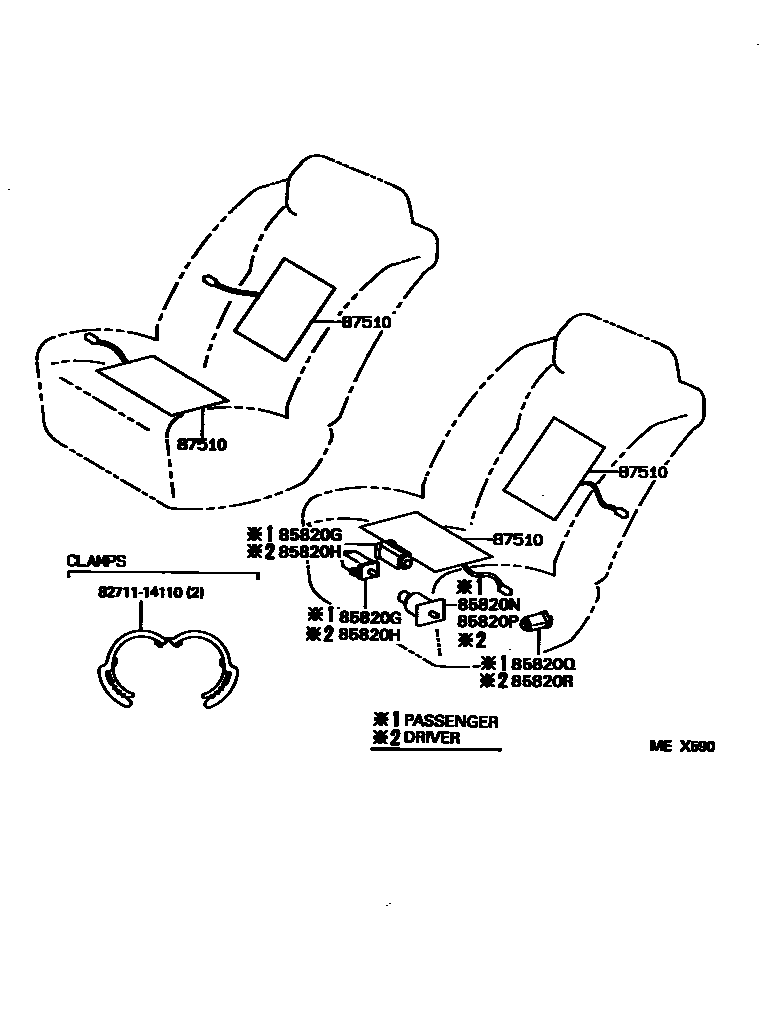

SEAT MOTOR & SEAT HEATER

85820GMOTOR ASSY, POWER SEAT

main85820-22030×2iMCV10199308-199608

85820HMOTOR ASSY, POWER SEAT

main85820-14030×2iMCV10,VCV10199107-199608

85820NMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE RH)

main85820-50090iMCV10,VCV10199107-199608

85820PMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE LH)

main85820-50010iMCV10,VCV10199107-199608

85820QMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING RH)

main85820-32020iMCV10,VCV10199107-199608

85820RMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING LH)

main85820-33010iMCV10,VCV10199107-199608

87510HEATER ASSY, SEAT

main87510-33030×2iMCV10,VCV10199107-199608

CUSHION

main87510-33040×2iMCV10,VCV10199107-199608

BACK

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8 parts on this diagram · 1 diagram in section
