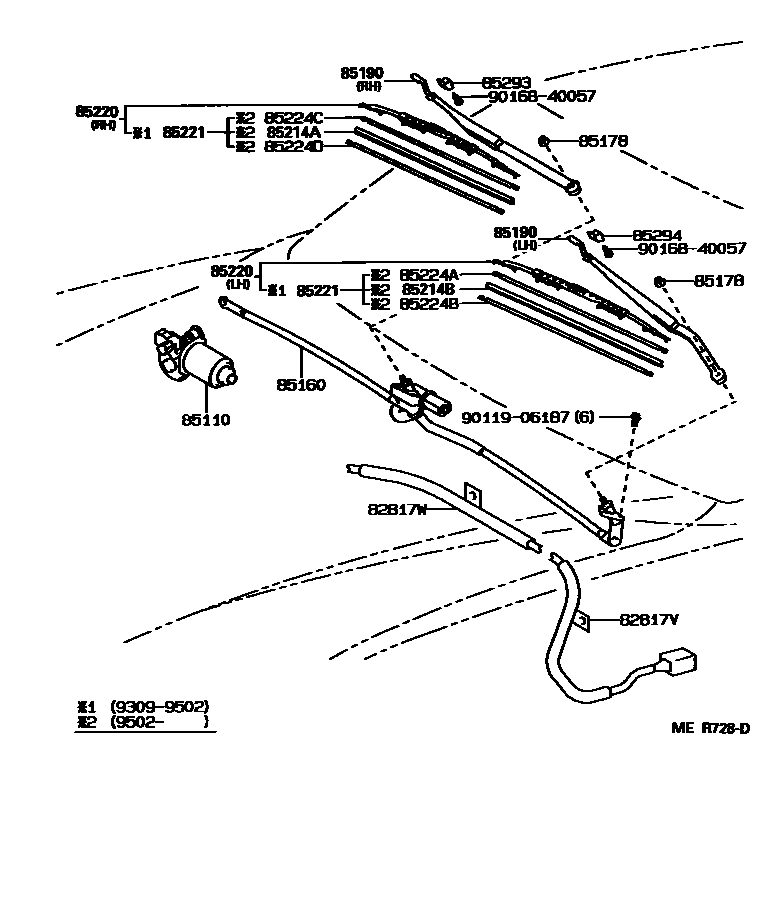

WINDSHIELD WIPER

82817VPROTECTOR, WIRING HARNESS

main82817-33420iMCV10,VCV10199204-199608

82817WPROTECTOR, WIRING HARNESS

main82817-33430iMCV10,VCV10199204-199608

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-33010iMCV10,VCV10199107-199608

85160LINK ASSY, WINDSHIELD WIPER

main85150-33010iMCV10,VCV10199107-199608

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08040×2iVCV10199107-199303

main90176-08049×2iMCV10,VCV10199303-199510

main90176-08051×2iMCV10199510-199608

85190ARM ASSY, WINDSHIELD WIPER

main85211-33030iMCV10,VCV10199107-199608

RH

main85221-33040iMCV10,VCV10199107-199608

LH

85214ARUBBER, WIPER, RH

main85214-33020iMCV10199502-199608

85214BRUBBER, WIPER, LH

main85214-33050iMCV10199502-199608

85220BLADE ASSY, WINDSHIELD WIPER

main85212-33030iVCV10199107-199208

RH

main85212-33031iMCV10,VCV10199208-199608

RH

main85222-24070iVCV10199107-199109

LH

main85222-33100iVCV10199109-199206

LH

main85222-33110iVCV10199206-199208

LH

main85222-33111iMCV10,VCV10199208-199608

LH

85221BLADE, WINDSHIELD WIPER

main85213-33020iVCV10199107-199208

RH

main85213-33021iMCV10,VCV10199208-199502

RH

main85223-1G020iVCV10199107-199109

LH

main85223-33020iVCV10199109-199206

LH

main85223-33021iVCV10199206-199208

LH

main85223-33022iMCV10,VCV10199208-199502

LH

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-28080iMCV10199502-199608

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-28090iMCV10199502-199608

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-33050iMCV10199502-199608

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-33050iMCV10199502-199608

85293STEP, LINEAR WIPER, RH

main85293-33010iMCV10,VCV10199107-199608

85294STEP, LINEAR WIPER, LH

main85294-33010iMCV10,VCV10199107-199608

9011906187

main90119-06187

9016840057

main90168-40057

18 parts on this diagram · 1 diagram in section
