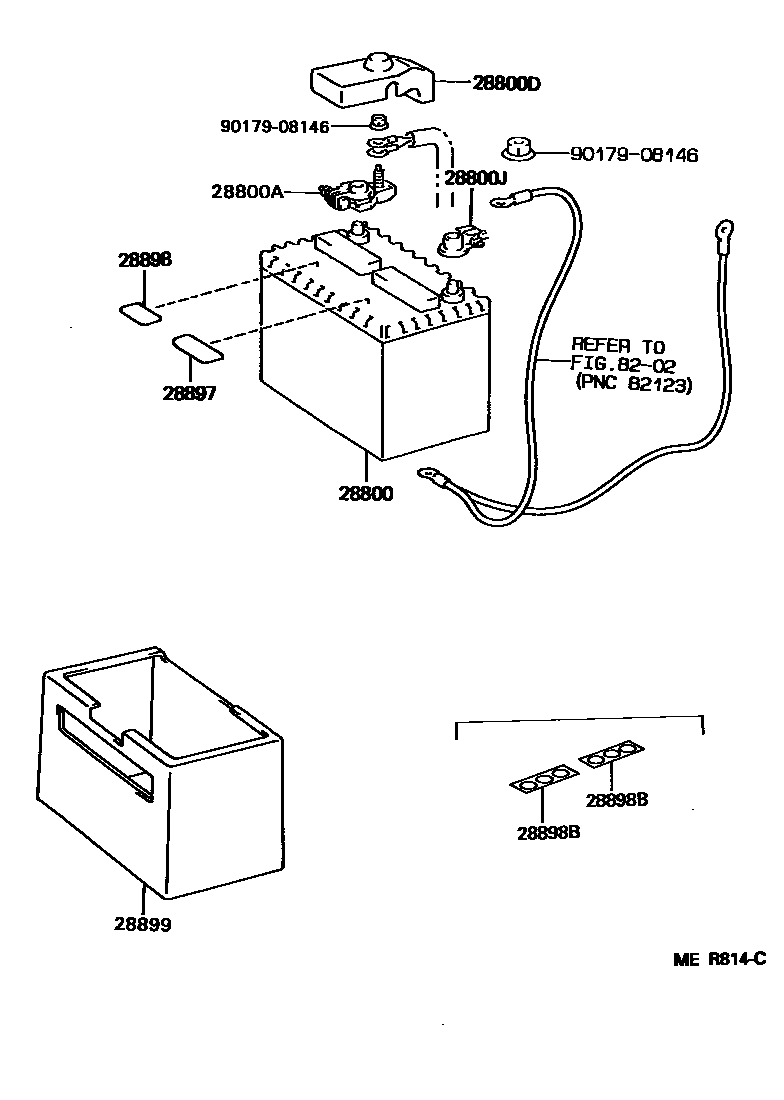

BATTERY & BATTERY CABLE

28800BATTERY

main28800-74140i3VZFE..VCV10199107-199210

80D26L

main28800-74141i1MZFE,3VZFE..MCV10,VCV10199210-199608

80D26L

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i1MZFE,3VZFE..MCV10,VCV10199107-199608

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i1MZFE,3VZFE..MCV10,VCV10199107-199608

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i1MZFE,3VZFE..MCV10,VCV10199107-199608

28897PLATE, BATTERY CAUTION

main28897-38010i1MZFE,3VZFE..MCV10,VCV10..CND199107-199608

28898PLATE, BATTERY

main28898-62010i1MZFE,3VZFE..MCV10,VCV10..USA199107-199608

28898BPLATE, BATTERY

main28898-50130×2i1MZFE..MCV10199408-199608

28899INSULATOR, BATTERY

main28899-62040i3VZFE..VCV10199107-199301

main28899-62041i1MZFE,3VZFE..MCV10,VCV10199301-199608

main28899-62051i1MZFE..MCV10..USA199308-199408

W/O(COLD SPEC)

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

10 parts on this diagram · 1 diagram in section
