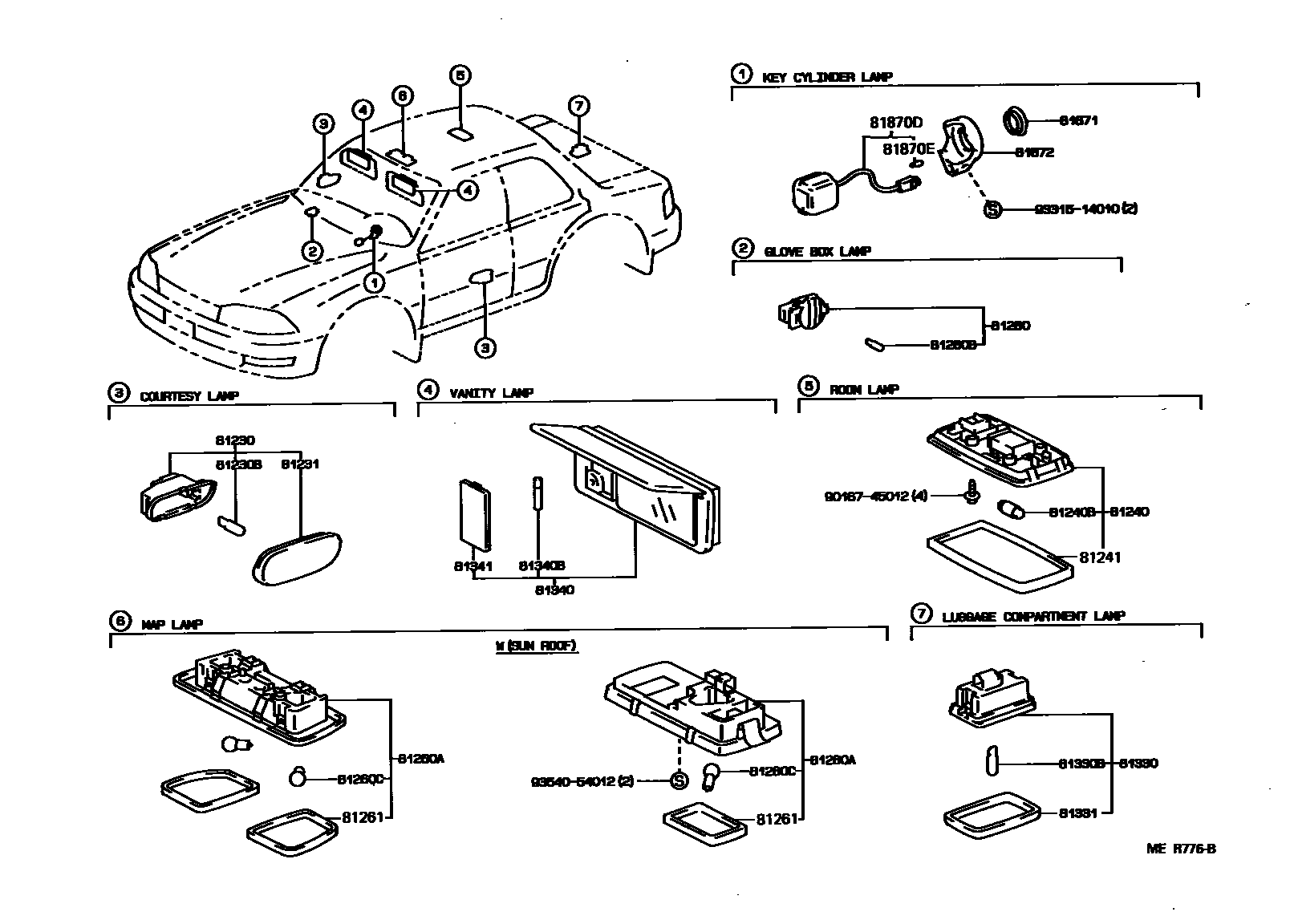

INTERIOR LAMP
81230LAMP ASSY, COURTESY
RH
LH
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
LIGHT OAK,TRIM4#
LIGHT TAUPE,TRIM9#
MEDIUM GRAY,TRIM2#
LIGHT BLUE,TRIM8#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81241LENS, ROOM LAMP, NO.1
81260ALAMP ASSY, MAP
W(MOONROOF),IVORY,TRIM0#,STANLEY
W(MOONROOF),MEDIUM GRAY,TRIM2#,STANLEY
W(MOONROOF),LT.OAK,TRIM4#,STANLEY
W(MOONROOF),LIGHT BLUE,TRIM8#,STANLEY
W(MOONROOF),LIGHT TAUPE,TRIM9#,STANLEY
IVORY,TRIM0#
LT.OAK,TRIM4#
LIGHT BLUE,TRIM8#
LIGHT TAUPE,TRIM9#
GRAY,TRIM2#
W(MOONROOF),LIGHT TAUPE,TRIM9#
W(MOONROOF),LIGHT BLUE,TRIM8#
W(MOONROOF),IVORY,TRIM0#,ICHIKO
W(MOONROOF),MEDIUM GRAY,TRIM2#
W(MOONROOF),LIGHT OAK,TRIM4#,ICHIKO
W(MOONROOF),TAUPE,TRIM9#,ICHIKO
W(MOONROOF),MD.GRAY,TRIM2#,ICHIKO
81260BBULB(FOR GLOVE BOX)
12V 1.2W W/O SOCKET
81260CBULB(FOR MAP LAMP)
12V 10W,W(MOON ROOF)
12V 8W
81261LENS AND COVER, MAP LAMP
W(MOON ROOF),IVORY,TRIM0#,STANLEY
W(MOON ROOF),MEDIUM GRAY,TRIM2#,STANLEY
W(MOON ROOF),LIGHT OAK,TRIM4#,STANLEY
W(MOON ROOF),LIGHT BLUE,TRIM8#,STANLEY
W(MOON ROOF),LIGHT TAUPE,TRIM9#,STANLEY
IVORY,TRIM0#
GRAY,TRIM2#
LIGHT OAK,TRIM4#
LIGHT BLUE,TRIM8#
LIGHT TAUPE,TRIM9#
W(MOON ROOF),TAUPE,TRIM9#,ICHIKO
W(MOON ROOF),MIDIUM GRAY,TRIM2#
W(MOON ROOF),OAK,TRIM4#,ICHIKO
W(MOON ROOF),LIGHT GRAY,TRIM8#,ICHIKO
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
MD.GRAY,TRIM2#,LH
LT.OAK,TRIM4#,LH
LT.TAUPE,TRIM9#,LH
BLACK,TRIM2#,LH
LIGHT TAUPE,TRIM9#,LH
LIGHT BLUE,TRIM8#,LH
IVORY,TRIM0#,LH
MEDIUM GRAY,TRIM2#,LH
LIGHT OAK,TRIM4#,LH
LIGHT BLUE,TRIM8#,LH
LIGHT TAUPE,TRIM9#,LH
GRAY,TRIM2#,RH
LIGHT TAUPE,TRIM9#,RH
LIGHT BLUE,TRIM8#,RH
IVORY,TRIM0#,RH
MD.GRAY,TRIM2#,RH
LT.OAK,TRIM4#,RH
LT.TAUPE,TRIM9#,RH
MEDIUM GRAY,TRIM2#,RH
LIGHT OAK,TRIM4#,RH
LIGHT BLUE,TRIM8#,RH
LIGHT TAUPE,TRIM9#,RH
81340BBULB (FOR VANITY LAMP)
12V 3W
81341LENS, VANITY LAMP
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
14V 1.4W
81871LENS, KEY ILLUMINATION
81872HOUSING, KEY CYLINDER LAMP
9016745012
main90167-45012
9331514010
main93315-14010
9354054012
main93540-54012
24 parts on this diagram · 1 diagram in section
