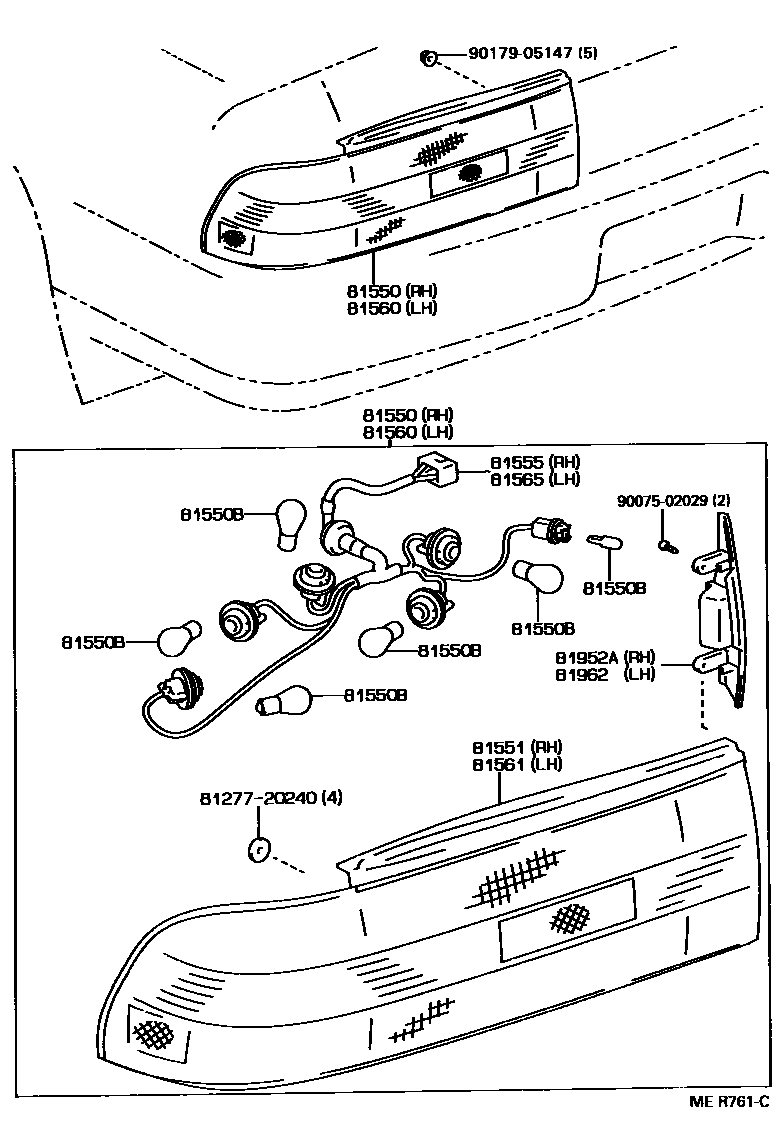

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-33050iMCV10,VCV10199107-199408

main81550-33100iMCV10199408-199608

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-12010×4iMCV10,VCV10199107-199608

12V 5W

main99132-11270×4iMCV10,VCV10199107-199608

12V 27W

main99132-21270×4iMCV10199408-199608

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-33050iMCV10,VCV10199107-199408

main81551-33100iMCV10199408-199608

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-33050iMCV10,VCV10199107-199408

main81555-33100iMCV10199408-199608

81560LAMP ASSY, REAR COMBINATION, LH

main81560-33050iMCV10,VCV10199107-199408

main81560-33100iMCV10199408-199608

81561LENS, REAR COMBINATION LAMP, LH

main81561-33050iMCV10,VCV10199107-199408

main81561-33100iMCV10199408-199608

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-33050iMCV10,VCV10199107-199408

main81555-33100iMCV10199408-199608

81952ACOVER, REAR LAMP, RH

main81556-33040iMCV10199408-199608

main81556-33050iMCV10,VCV10199107-199408

81962COVER, REAR LAMP, LH

main81566-33040iMCV10199408-199608

main81566-33050iMCV10,VCV10199107-199408

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

9007502029

main90075-02029

9017905147

main90179-05147

12 parts on this diagram · 1 diagram in section
