E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

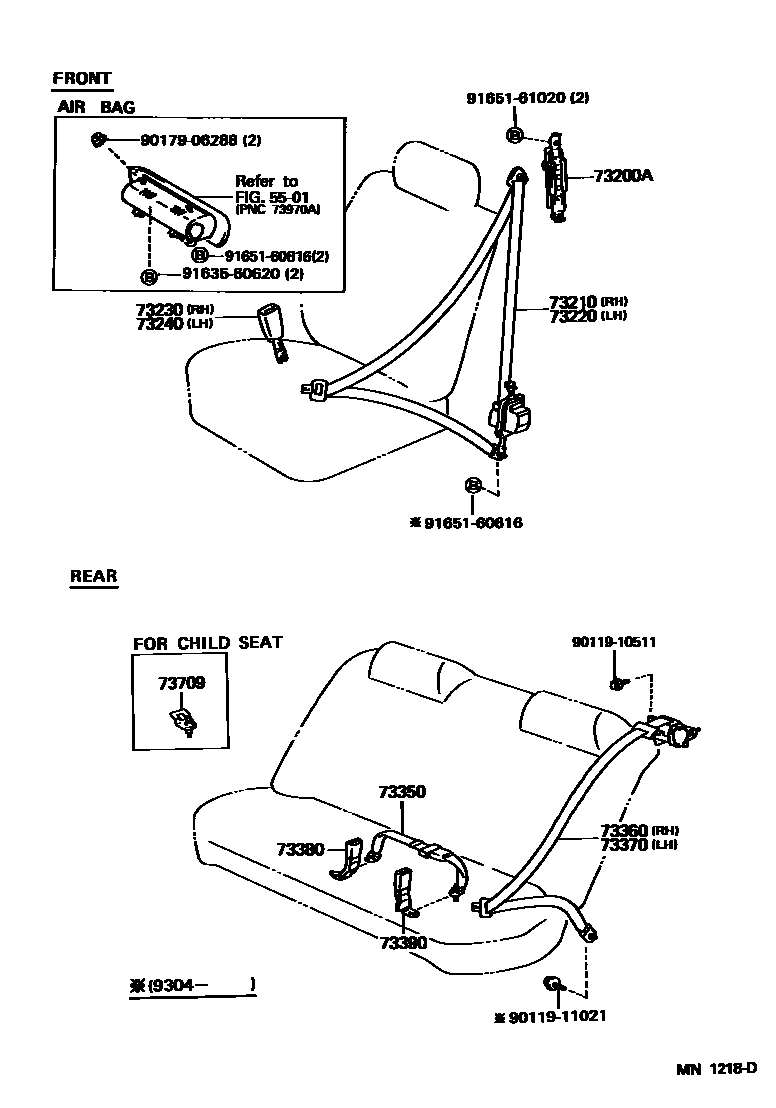

Parts diagram
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
→ Go to FIG 55-01
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-33010-01×2i199107-199408
BLACK,TRIM2#
main73200-33010-02×2i199107-199206
TAUPE,TRIM9#
main73200-33010-04×2i199107-199408
DARK BLUE,TRIM8#
main73200-33010-05×2i199107-199308
GREIGE,TRIM0#
main73200-33010-22×2i199408-199608
BLACK,TRIM2#
main73200-33010-E1×2i199308-199608
OAK,TRIM4#
main73200-33010-K0×2i199206-199608
TAUPE,TRIM9#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-33010-01i199107-199208
BLACK,TRIM2#
main73210-33010-02i199107-199208
TAUPE,TRIM9#
main73210-33010-04i199107-199208
DARK BLUE,TRIM8#
main73210-33010-05i199107-199208
GREIGE,TRIM0#
main73210-33011-22i199208-199308
BLACK,TRIM2#
main73210-33011-E2i199208-199308
GREIGE,TRIM0#
main73210-33011-K0i199208-199308
TAUPE,TRIM9#
main73210-33011-W3i199208-199308
DARK BLUE,TRIM8#
main73210-33013-22i199308-199408
BLACK,TRIM2#
main73210-33013-C0i199408-199608
BLACK,TRIM2#
main73210-33013-E0i199308-199408
OAK,TRIM4#
main73210-33013-E1i199408-199608
OAK,TRIM4#
main73210-33013-K0i199308-199408
TAUPE,TRIM9#
main73210-33013-K1i199408-199608
TAUPE,TRIM9#
main73210-33013-W3i199308-199408
DARK BLUE,TRIM8#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-33010-01i199107-199308
BLACK,TRIM2#
main73220-33010-02i199107-199308
TAUPE,TRIM9#
main73220-33010-04i199107-199308
DARK BLUE,TRIM8#
main73220-33010-05i199107-199308
GREIGE,TRIM0#
main73220-33090-C1i199308-199608
BLACK,TRIM2#
main73220-33090-E1i199308-199608
OAK,TRIM4#
main73220-33090-J1i199308-199408
DARK BLUE,TRIM8#
main73220-33090-K1i199308-199608
TAUPE,TRIM9#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-33030-01i199107-199308
BLACK,TRIM2#
main73230-33030-02i199107-199308
TAUPE,TRIM9#
main73230-33030-04i199107-199308
DARK BLUE,TRIM8#
main73230-33030-05i199107-199308
GREIGE,TRIM0#
main73230-33090-C0i199308-199608
BLACK,TRIM2#
main73230-33090-E0i199308-199608
OAK,TRIM4#
main73230-33090-J0i199308-199408
DARK BLUE,TRIM8#
main73230-33090-K0i199308-199608
TAUPE,TRIM9#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-33020-01i199107-199308
BLACK,TRIM2#
main73230-33020-02i199107-199308
TAUPE,TRIM9#
main73230-33020-04i199107-199308
DARK BLUE,TRIM8#
main73230-33020-05i199107-199308
GREIGE,TRIM0#
main73230-33080-C0i199308-199608
BLACK,TRIM2#
main73230-33080-E0i199308-199608
OAK,TRIM4#
main73230-33080-J0i199308-199408
DARK BLUE,TRIM8#
main73230-33080-K0i199308-199608
TAUPE,TRIM9#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-33010-01i199107-199308
BLACK,TRIM2#
main73350-33010-02i199107-199308
TAUPE,TRIM9#
main73350-33010-04i199107-199308
DARK BLUE,TRIM8#
main73350-33010-05i199107-199308
GREIGE,TRIM0#
main73350-33010-C0i199408-199608
BLACK,TRIM2#
main73350-33010-E0i199308-199608
OAK,TRIM4#
main73350-33010-K0i199408-199608
TAUPE,TRIM9#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-33010-01i199107-199208
BLACK,TRIM2#
main73360-33010-02i199107-199208
TAUPE,TRIM9#
main73360-33010-04i199107-199208
DARK BLUE,TRIM8#
main73360-33010-05i199107-199208
GREIGE,TRIM0#
main73360-33011-22i199208-199306
BLACK,TRIM2#
main73360-33011-E2i199208-199306
GREIGE,TRIM0#
main73360-33011-K0i199208-199306
TAUPE,TRIM9#
main73360-33011-W3i199208-199306
DARK BLUE,TRIM8#
main73360-33012-22i199306-199308
BLACK,TRIM2#
main73360-33012-K0i199306-199308
TAUPE,TRIM9#
main73360-33012-W3i199306-199308
DARK BLUE,TRIM8#
main73360-33013-22i199308-199408
BLACK,TRIM2#
main73360-33013-C0i199408-199508
BLACK,TRIM2#
main73360-33013-E0i199308-199408
OAK,TRIM4#
main73360-33013-E1i199408-199508
OAK,TRIM4#
main73360-33013-K0i199308-199408
TAUPE,TRIM9#
main73360-33013-K1i199408-199508
TAUPE,TRIM9#
main73360-33013-W3i199308-199408
DARK BLUE,TRIM8#
main73360-33014-C0i199508-199608
BLACK,TRIM2#
main73360-33014-E1i199508-199608
OAK,TRIM4#
main73360-33014-K1i199508-199608
TAUPE,TRIM9#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-33010-01i199107-199208
BLACK,TRIM2#
main73370-33010-02i199107-199208
TAUPE,TRIM9#
main73370-33010-04i199107-199208
DARK BLUE,TRIM8#
main73370-33010-05i199107-199208
GREIGE,TRIM0#
main73370-33011-22i199208-199306
BLACK,TRIM2#
main73370-33011-E2i199208-199306
GREIGE,TRIM0#
main73370-33011-K0i199208-199306
TAUPE,TRIM9#
main73370-33011-W3i199208-199306
DARK BLUE,TRIM8#
main73370-33012-22i199306-199308
BLACK,TRIM2#
main73370-33012-K0i199306-199308
TAUPE,TRIM9#
main73370-33012-W3i199306-199308
DARK BLUE,TRIM8#
main73370-33013-22i199308-199408
BLACK,TRIM2#
main73370-33013-C0i199408-199508
BLACK,TRIM2#
main73370-33013-E0i199308-199408
OAK,TRIM4#
main73370-33013-E1i199408-199508
OAK,TRIM4#
main73370-33013-K0i199308-199408
TAUPE,TRIM9#
main73370-33013-K1i199408-199508
TAUPE,TRIM9#
main73370-33013-W3i199308-199408
DARK BLUE,TRIM8#
main73370-33014-C0i199508-199608
BLACK,TRIM2#
main73370-33014-E1i199508-199608
OAK,TRIM4#
main73370-33014-K1i199508-199608
TAUPE,TRIM9#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-33010-01i199107-199405
BLACK,TRIM2#
main73380-33010-02i199107-199405
TAUPE,TRIM9#
main73380-33010-04i199107-199405
DARK BLUE,TRIM8#
main73380-33010-05i199107-199308
GREIGE,TRIM0#
main73380-33010-E0i199308-199405
OAK,TRIM4#
main73380-33011-C0i199405-199608
BLACK,TRIM2#
main73380-33011-E0i199405-199608
OAK,TRIM4#
main73380-33011-J0i199405-199408
DARK BLUE,TRIM8#
main73380-33011-K0i199405-199608
TAUPE,TRIM9#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73480-33010-01i199107-199405
BLACK,TRIM2#
main73480-33010-02i199107-199405
TAUPE,TRIM9#
main73480-33010-04i199107-199405
DARK BLUE,TRIM8#
main73480-33010-05i199107-199308
GREIGE,TRIM0#
main73480-33010-E0i199308-199405
OAK,TRIM4#
main73480-33011-C0i199405-199608
BLACK,TRIM2#
main73480-33011-E0i199405-199608
OAK,TRIM4#
main73480-33011-J0i199405-199408
DARK BLUE,TRIM8#
main73480-33011-K0i199405-199608
TAUPE,TRIM9#
73709BRACKET SUB-ASSY, TETHER ANCHOR
main73709-12010i199107-199608
9011910511
main90119-10511
9011911021
main90119-11021
9017906288
main90179-06288
9163560620
main91635-60620
9165160616
main91651-60616
9165160816
main91651-60816
9165161020
main91651-61020

19 parts on this diagram · 1 diagram in section
