FRONT SEAT & SEAT TRACK

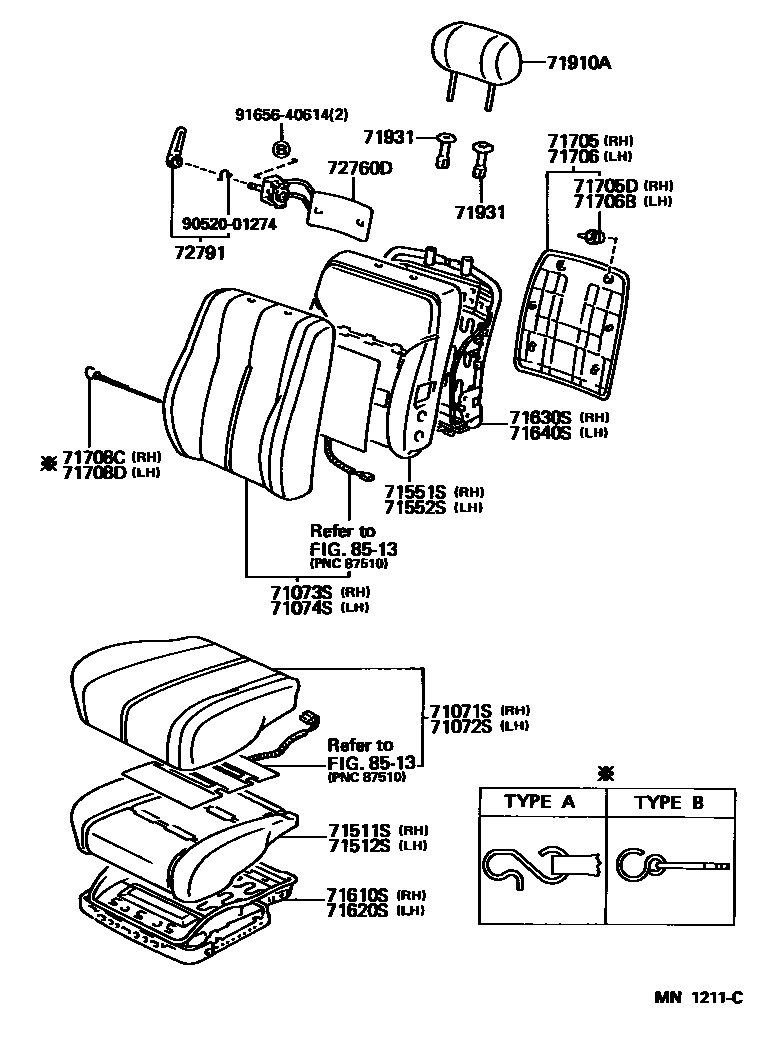

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-33160-01i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33160-02i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71071-33160-04i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71071-33160-08i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,IVORY,TRIM0#; W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71071-33161-A0i199208-199308
W(LEATHER SEAT & SEAT HEATER)-*99,IVORY,TRIM0#; W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71071-33161-C0i199208-199310
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33161-E0i199308-199310
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71071-33161-J0i199208-199310
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71071-33161-K0i199208-199310
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71071-33162-C1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33162-E1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71071-33162-J1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71071-33162-K1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71071-33163-C1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33163-E2i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71071-33163-J1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71071-33163-K1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71071-33164-C1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33164-E2i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71071-33164-J1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71071-33164-K1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71071-33180-02i199107-199308
TAUPE,TRIM9#
main71071-33180-03i199107-199308
MEDIUM GRAY,TRIM2#
main71071-33180-04i199107-199308
DARK BLUE,TRIM8#
main71071-33190-01i199107-199208
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33190-02i199107-199208
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71071-33190-04i199107-199208
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71071-33190-08i199107-199208
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71071-33191-A0i199208-199308
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71071-33191-C0i199208-199310
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33191-E0i199308-199310
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71071-33191-J0i199208-199310
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71071-33191-K0i199208-199310
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71071-33192-C1i199310-199402
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33192-E1i199310-199402
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71071-33192-J1i199310-199402
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71071-33192-K1i199310-199402
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71071-33193-C1i199402-199406
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33193-E1i199402-199406
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71071-33193-J1i199402-199406
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71071-33193-K1i199402-199406
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71071-33194-C1i199406-199408
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33194-E1i199406-199408
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71071-33194-J1i199406-199408
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71071-33194-K1i199406-199408
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71071-33210-02i199107-199308
TAUPE,TRIM9#; W(SEAT HEATER),TAUPE,TRIM9#
main71071-33210-03i199107-199308
MEDIUM GRAY,TRIM2#; W(SEAT HEATER),MEDIUM GRAY,TRIM2#
main71071-33210-04i199107-199308
DARK BLUE,TRIM8#; W(SEAT HEATER),DARK BLUE,TRIM8#
main71071-33320-B0i199308-199408
DARK GRAY,TRIM2#
main71071-33320-K0i199308-199408
TAUPE,TRIM9#
main71071-33330-B0i199308-199408
DARK GRAY,TRIM2#; W(SEAT HEATER),DARK GRAY,TRIM2#
main71071-33330-K0i199308-199408
TAUPE,TRIM9#; W(SEAT HEATER),TAUPE,TRIM9#
main71071-33410-C0i199508-199608
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33410-E0i199408-199508
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71071-33410-K0i199508-199608
W(LEATHER SEAT)-*99,TAUPE,TRIM9#
main71071-33420-C0i199408-199508
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71071-33420-E0i199408-199508
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71071-33420-K0i199408-199508
W(LEATHER SEAT & SEAT HEATER)-*99,TAUPE,TRIM9#; W(LEATHER SEAT)-*99,TAUPE,TRIM9#
main71071-33440-C0i199408-199508
BLACK,TRIM2#
main71071-33440-K0i199408-199508
TAUPE,TRIM9#
main71071-33450-C0i199408-199508
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main71071-33450-K0i199508-199608
W(SEAT HEATER),TAUPE,TRIM9#
main71071-33580-C0i199603-199605
COACH EDITION,W(LEATHER SEAT),BLACK,TRIM2#
main71071-33580-E0i199603-199605
COACH EDITION,W(LEATHER SEAT),OAK,TRIM4#
main71071-33590-C0i199603-199605
COACH EDITION,W(LEATHER SEAT & *SH),BLACK,TRIM2#
main71071-33590-E0i199603-199605
COACH EDITION,W(LEATHER SEAT & *SH),OAK,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-33200-02i199107-199308
TAUPE,TRIM9#
main71072-33200-03i199107-199308
MEDIUM GRAY,TRIM2#
main71072-33200-04i199107-199308
DARK BLUE,TRIM8#
main71072-33210-01i199107-199208
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33210-02i199107-199208
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71072-33210-04i199107-199208
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71072-33210-08i199107-199208
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71072-33211-A0i199208-199308
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71072-33211-C0i199208-199310
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33211-E0i199308-199310
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71072-33211-J0i199208-199310
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71072-33211-K0i199208-199310
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71072-33212-C1i199310-199402
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33212-E1i199310-199402
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71072-33212-J1i199310-199402
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71072-33212-K1i199310-199402
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71072-33213-C1i199402-199406
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33213-E1i199402-199406
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71072-33213-J1i199402-199406
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71072-33213-K1i199402-199406
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71072-33214-C1i199406-199408
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33214-E1i199406-199408
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71072-33214-J1i199406-199408
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71072-33214-K1i199406-199408
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71072-33230-02i199107-199308
TAUPE,TRIM9#; W(SEAT HEATER),TAUPE,TRIM9#
main71072-33230-03i199107-199308
MEDIUM GRAY,TRIM2#; W(SEAT HEATER),MEDIUM GRAY,TRIM2#
main71072-33230-04i199107-199308
DARK BLUE,TRIM8#; W(SEAT HEATER),DARK BLUE,TRIM8#
main71072-33240-01i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33240-02i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71072-33240-04i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71072-33240-08i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,IVORY,TRIM0#; W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71072-33241-A0i199208-199308
W(LEATHER SEAT & SEAT HEATER)-*99,IVORY,TRIM0#; W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71072-33241-C0i199208-199310
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33241-E0i199308-199310
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71072-33241-J0i199208-199310
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71072-33241-K0i199208-199310
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71072-33242-C1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33242-E1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71072-33242-J1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71072-33242-K1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71072-33243-C1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33243-E1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71072-33243-J1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71072-33243-K1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71072-33244-C1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33244-E1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71072-33244-J1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71072-33244-K1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71072-33350-B0i199309-199408
DARK GRAY,TRIM2#
main71072-33350-K0i199309-199408
MEDIUM TAUPE,TRIM9#
main71072-33360-B0i199308-199408
DARK GRAY,TRIM2#; W(SEAT HEATER),DARK GRAY,TRIM2#
main71072-33360-K0i199308-199408
TAUPE,TRIM9#; W(SEAT HEATER),TAUPE,TRIM9#
main71072-33430-C0i199508-199608
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33430-E0i199508-199608
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71072-33430-K0i199508-199608
W(LEATHER SEAT)-*99,TAUPE,TRIM9#
main71072-33440-C0i199408-199508
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71072-33440-E0i199508-199608
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#
main71072-33440-K0i199408-199508
W(LEATHER SEAT & SEAT HEATER)-*99,TAUPE,TRIM9#; W(LEATHER SEAT)-*99,TAUPE,TRIM9#
main71072-33450-C0i199408-199508
BLACK,TRIM2#
main71072-33450-K0i199508-199608
TAUPE,TRIM9#
main71072-33460-C0i199408-199508
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main71072-33460-K0i199408-199508
TAUPE,TRIM9#; W(SEAT HEATER),TAUPE,TRIM9#
main71072-33560-C0i199603-199605
COACH EDITION,W(LEATHER SEAT),BLACK,TRIM2#
main71072-33560-E0i199603-199605
COACH EDITION,W(LEATHER SEAT),OAK,TRIM4#
main71072-33570-C0i199603-199605
COACH EDITION,W(LEATHER SEAT & *SH),BLACK,TRIM2#
main71072-33570-E0i199603-199605
COACH EDITION,W(LEATHER SEAT & *SH),OAK,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-33150-02i199107-199308
TAUPE,TRIM9#
main71073-33150-03i199107-199308
MEDIUM GRAY,TRIM2#
main71073-33150-04i199107-199308
DARK BLUE,TRIM8#
main71073-33160-01i199107-199208
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71073-33160-02i199107-199208
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71073-33160-04i199107-199208
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71073-33160-08i199107-199208
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71073-33161-A0i199208-199308
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71073-33161-C0i199208-199308
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71073-33161-J0i199208-199308
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71073-33161-K0i199208-199308
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71073-33170-02i199107-199308
TAUPE,TRIM9#; W(SEAT HEATER),TAUPE,TRIM9#
main71073-33170-03i199107-199308
MEDIUM GRAY,TRIM2#; W(SEAT HEATER),MEDIUM GRAY,TRIM2#
main71073-33170-04i199107-199308
DARK BLUE,TRIM8#; W(SEAT HEATER),DARK BLUE,TRIM8#
main71073-33180-01i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71073-33180-02i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71073-33180-04i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71073-33180-08i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,IVORY,TRIM0#; W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71073-33181-A0i199208-199308
W(LEATHER SEAT & SEAT HEATER)-*99,IVORY,TRIM0#; W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71073-33181-C0i199208-199308
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71073-33181-J0i199208-199308
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71073-33181-K0i199208-199308
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71073-33320-B0i199308-199408
DARK GRAY,TRIM2#
main71073-33320-K0i199308-199408
TAUPE,TRIM9#
main71073-33330-B0i199308-199408
DARK GRAY,TRIM2#; W(SEAT HEATER),DARK GRAY,TRIM2#
main71073-33330-K0i199308-199408
TAUPE,TRIM9#; W(SEAT HEATER),TAUPE,TRIM9#
main71073-33370-C0i199308-199310
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71073-33370-E0i199308-199310
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71073-33370-J0i199308-199310
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71073-33370-K0i199308-199310
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71073-33371-C1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71073-33371-E1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71073-33371-J1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71073-33371-K1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71073-33372-C1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71073-33372-E1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71073-33372-J1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71073-33372-K1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71073-33373-C1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71073-33373-C2i199408-199508
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71073-33373-E1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71073-33373-E2i199408-199508
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71073-33373-J1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71073-33373-K1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71073-33373-K2i199408-199508
W(LEATHER SEAT & SEAT HEATER)-*99,TAUPE,TRIM9#; W(LEATHER SEAT)-*99,TAUPE,TRIM9#
main71073-33410-C0i199408-199508
BLACK,TRIM2#
main71073-33410-K0i199408-199508
TAUPE,TRIM9#
main71073-33420-C0i199408-199508
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main71073-33420-K0i199508-199608
W(SEAT HEATER),TAUPE,TRIM9#
main71073-33460-C0i199508-199608
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71073-33460-C1i199406-199408
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71073-33460-E0i199508-199608
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71073-33460-E1i199406-199408
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71073-33460-J0i199406-199408
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71073-33460-K0i199408-199508
W(LEATHER SEAT)-*99,TAUPE,TRIM9#
main71073-33460-K1i199406-199408
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71073-33600-C0i199603-199605
COACH EDITION,W(LEATHER SEAT),BLACK,TRIM2#
main71073-33600-E0i199603-199605
COACH EDITION,W(LEATHER SEAT),OAK,TRIM4#
main71073-33610-C0i199603-199605
COACH EDITION,W(LEATHER SEAT & *SH),BLACK,TRIM2#
main71073-33610-E0i199603-199605
COACH EDITION,W(LEATHER SEAT & *SH),OAK,TRIM4#
main71074-33300-C0i199308-199310
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33300-E0i199308-199310
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33300-J0i199308-199310
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33300-K0i199308-199310
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33301-C1i199310-199402
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33301-E1i199310-199402
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33301-J1i199310-199402
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33301-K1i199310-199402
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33302-C1i199402-199406
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33302-E1i199402-199406
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33302-J1i199402-199406
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33302-K1i199402-199406
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-33060-02i199107-199308
TAUPE,TRIM9#
main71074-33060-03i199107-199308
MEDIUM GRAY,TRIM2#
main71074-33060-04i199107-199308
DARK BLUE,TRIM8#
main71074-33070-01i199107-199208
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33070-02i199107-199208
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33070-04i199107-199208
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33070-08i199107-199208
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71074-33071-A0i199208-199308
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71074-33071-C0i199208-199308
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33071-J0i199208-199308
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33071-K0i199208-199308
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33080-02i199107-199308
TAUPE,TRIM9#; W(SEAT HEATER),TAUPE,TRIM9#
main71074-33080-03i199107-199308
MEDIUM GRAY,TRIM2#; W(SEAT HEATER),MEDIUM GRAY,TRIM2#
main71074-33080-04i199107-199308
DARK BLUE,TRIM8#; W(SEAT HEATER),DARK BLUE,TRIM8#
main71074-33090-01i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33090-02i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33090-04i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33090-08i199107-199208
W(LEATHER SEAT & SEAT HEATER)-*99,IVORY,TRIM0#; W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71074-33091-A0i199208-199308
W(LEATHER SEAT & SEAT HEATER)-*99,IVORY,TRIM0#; W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71074-33091-C0i199208-199308
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33091-J0i199208-199308
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33091-K0i199208-199308
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33250-B0i199308-199408
DARK GRAY,TRIM2#
main71074-33250-K0i199308-199408
TAUPE,TRIM9#
main71074-33260-B0i199308-199408
DARK GRAY,TRIM2#; W(SEAT HEATER),DARK GRAY,TRIM2#
main71074-33260-K0i199308-199408
TAUPE,TRIM9#; W(SEAT HEATER),TAUPE,TRIM9#
main71074-33310-C0i199308-199310
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33310-E0i199308-199310
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33310-J0i199308-199310
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33310-K0i199308-199310
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33311-C1i199310-199402
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33311-E1i199310-199402
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33311-J1i199310-199402
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33311-K1i199310-199402
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33312-C1i199402-199406
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33312-E1i199402-199406
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33312-J1i199402-199406
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33312-K1i199402-199406
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33313-C1i199406-199408
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33313-C2i199508-199608
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33313-E1i199406-199408
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33313-E2i199408-199508
W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33313-J1i199406-199408
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33313-K1i199406-199408
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33313-K2i199508-199608
W(LEATHER SEAT)-*99,TAUPE,TRIM9#
main71074-33320-C0i199308-199310
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33320-E0i199308-199310
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33320-J0i199308-199310
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33320-K0i199308-199310
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33321-C1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33321-E1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33321-J1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33321-K1i199310-199402
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33322-C1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33322-E1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33322-J1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33322-K1i199402-199406
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33323-C1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33323-C2i199408-199508
W(LEATHER SEAT & SEAT HEATER)-*99,BLACK,TRIM2#; W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71074-33323-E1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#; W(LEATHER SEAT)-*99,OAK,TRIM4#
main71074-33323-E2i199508-199608
W(LEATHER SEAT & SEAT HEATER)-*99,OAK,TRIM4#
main71074-33323-J1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,BLUE,TRIM8#; W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71074-33323-K1i199406-199408
W(LEATHER SEAT & SEAT HEATER)-*99,MEDIUM TAUPE,TRIM9#; W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71074-33323-K2i199408-199508
W(LEATHER SEAT & SEAT HEATER)-*99,TAUPE,TRIM9#; W(LEATHER SEAT)-*99,TAUPE,TRIM9#
main71074-33360-C0i199408-199508
BLACK,TRIM2#
main71074-33360-K0i199508-199608
TAUPE,TRIM9#
main71074-33370-C0i199408-199508
BLACK,TRIM2#; W(SEAT HEATER),BLACK,TRIM2#
main71074-33370-K0i199408-199508
TAUPE,TRIM9#; W(SEAT HEATER),TAUPE,TRIM9#
main71074-33490-C0i199603-199605
COACH EDITION,W(LEATHER SEAT),BLACK,TRIM2#
main71074-33490-E0i199603-199605
COACH EDITION,W(LEATHER SEAT),OAK,TRIM4#
main71074-33500-C0i199603-199605
COACH EDITION,W(LEATHER SEAT & *SH),BLACK,TRIM2#
main71074-33500-E0i199603-199605
COACH EDITION,W(LEATHER SEAT & *SH),OAK,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-33020i199107-199608
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-33030i199107-199608
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-33010i199107-199608
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-33010i199107-199608
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-32110i199107-199408
main71610-32120i199408-199608
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-33020i199107-199608
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-33030i199107-199407
main71630-33031i199407-199608
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-33020i199107-199608
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-33020-01i199107-199408
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71705-33020-02i199107-199408
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71705-33020-08i199107-199308
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71705-33020-14i199107-199408
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71705-33020-C0i199408-199608
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71705-33020-E0i199308-199608
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
main71705-33020-K1i199408-199608
W(LEATHER SEAT)-*99,MD.TAUPE,TRIM9#
main71705-33080-02i199107-199408
MEDIUM TAUPE,TRIM9#
main71705-33080-03i199107-199408
GRAY,TRIM2#
main71705-33080-04i199107-199308
BLUE,TRIM8#
main71705-33130-B0i199408-199608
DK. GRAY,TRIM2#
main71705-33130-K0i199408-199608
TAUPE,TRIM9#
71705DCLIP, FRONT SEATBACK BOARD
main71769-32011×2i199107-199110
main71769-33010×2i199110-199608
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-33020-01i199107-199408
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71705-33020-02i199107-199408
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#
main71705-33020-08i199107-199308
W(LEATHER SEAT)-*99,IVORY,TRIM0#
main71705-33020-14i199107-199408
W(LEATHER SEAT)-*99,BLUE,TRIM8#
main71705-33020-C0i199408-199608
W(LEATHER SEAT)-*99,BLACK,TRIM2#
main71705-33020-E0i199308-199608
W(LEATHER SEAT)-*99,LIGHT OAK,TRIM4#
main71705-33020-K1i199408-199608
W(LEATHER SEAT)-*99,MD.TAUPE,TRIM9#
main71705-33080-02i199107-199408
MEDIUM TAUPE,TRIM9#
main71705-33080-03i199107-199408
GRAY,TRIM2#
main71705-33080-04i199107-199308
BLUE,TRIM8#
main71705-33130-B0i199408-199608
DK. GRAY,TRIM2#
main71705-33130-K0i199408-199608
TAUPE,TRIM9#
71706BCLIP, FRONT SEATBACK BOARD
main71769-32011×2i199107-199110
main71769-33010×2i199110-199608
71708CSTRAP SUB-ASSY, SEAT COVER, RH
main71708-33010i199107-199208
W(LEATHER SEAT)-*99,TYPE A
main71708-33020i199107-199208
W(LEATHER SEAT)-*99,TYPE B
71708DSTRAP SUB-ASSY, SEAT COVER, LH
main71708-33010i199107-199208
W(LEATHER SEAT)-*99,TYPE A
main71708-33020i199107-199208
W(LEATHER SEAT)-*99,TYPE B
71910AHEADREST ASSY, FRONT SEAT
main71910-33070-02×2i199107-199408
MEDIUM TAUPE,TRIM9#
main71910-33070-03×2i199107-199408
GRAY,TRIM2#
main71910-33070-04×2i199107-199308
BLUE,TRIM8#
main71910-33080-01i199107-199408
W(LEATHER SEAT)-*99,BLACK,TRIM2#,RH
main71910-33080-02i199107-199408
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#,RH
main71910-33080-04i199107-199408
W(LEATHER SEAT)-*99,BLUE,TRIM8#,RH
main71910-33080-08i199107-199308
W(LEATHER SEAT)-*99,IVORY,TRIM0#,RH
main71910-33080-22i199408-199608
W(LEATHER SEAT)-*99,BLACK,TRIM2#,RH
main71910-33080-E0i199308-199608
W(LEATHER SEAT)-*99,OAK,TRIM4#,RH
main71910-33080-K0i199408-199608
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#,RH
main71910-33120-B0×2i199408-199411
DK. GRAY,TRIM2#
main71910-33120-K0×2i199408-199411
TAUPE,TRIM9#
main71920-33010-A0i199107-199308
W(LEATHER SEAT)-*99,IVORY,TRIM0#,LH
main71920-33010-C0i199107-199608
W(LEATHER SEAT)-*99,BLACK,TRIM2#,LH
main71920-33010-E0i199308-199608
W(LEATHER SEAT)-*99,OAK,TRIM4#,LH
main71920-33010-J0i199107-199408
W(LEATHER SEAT)-*99,BLUE,TRIM8#,LH
main71920-33010-K0i199107-199608
W(LEATHER SEAT)-*99,MEDIUM TAUPE,TRIM9#,LH
main71920-33030-C0i199603-199605
COACH EDITION,W(LEATHER SEAT),BLACK,TRIM2#
main71920-33030-E0i199603-199605
COACH EDITION,W(LEATHER SEAT),OAK,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-10070-22×2i199210-199408
W(LOCK),BLACK,TRIM2#
main71930-10070-A0×2i199210-199308
W(LOCK),IVORY,TRIM0#
main71930-10070-A2×2i199408-199608
W(LOCK),IVORY,TRIM4#
main71930-10070-K1×2i199210-199408
W(LOCK),MEDIUM TAUPE,TRIM9#
main71930-10070-L1×2i199308-199408
W(LOCK),OAK,TRIM4#
main71930-10070-W4×2i199210-199408
W(LOCK),EISEN BLUE,TRIM8#
main71930-32010-01×2i199107-199210
W(LOCK),BLACK,TRIM2#
main71930-32010-04×2i199107-199210
W(LOCK),BLUE,TRIM8#
main71930-32010-08×2i199107-199210
W(LOCK),IVORY,TRIM0#
main71930-32010-12×2i199107-199210
W(LOCK),MEDIUM TAUPE,TRIM9#
main71931-10020-22×2i199408-199608
W/O(LOCK),BLACK,TRIM2#
main71931-10020-A0×2i199210-199308
W/O(LOCK),IVORY,TRIM0#
main71931-10020-A2×2i199408-199608
W/O(LOCK),IVORY,TRIM4#
main71931-10020-K1×2i199210-199408
W/O(LOCK),MEDIUM TAUPE,TRIM9#
main71931-10020-L0×2i199308-199408
W/O(LOCK),OAK,TRIM4#
main71931-10020-W4×2i199210-199408
W/O(LOCK),EISEN BLUE,TRIM8#
main71931-32010-01×2i199107-199210
W/O(LOCK),BLACK,TRIM2#
main71931-32010-04×2i199107-199210
W/O(LOCK),BLUE,TRIM8#
main71931-32010-08×2i199107-199210
W/O(LOCK),IVORY,TRIM0#
main71931-32010-12×2i199107-199210
W/O(LOCK),MEDIUM TAUPE,TRIM9#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-33010i199107-199608
72791LEVER, LUMBAR SUPPORT
main72791-22020-08i199107-199201
IVORY,TRIM0#
main72791-22020-11i199107-199408
BLACK,TRIM2#
main72791-22020-30i199107-199408
MEDIUM TAUPE,TRIM9#
main72791-22020-54i199107-199408
BLUE,TRIM8#
main72791-22020-A0i199201-199308
IVORY,TRIM0#
main72791-22020-A1i199408-199608
IVORY,TRIM4#
main72791-22020-C0i199408-199608
BLACK,TRIM2#
main72791-22020-K2i199408-199608
MD.TAUPE,TRIM9#
main72791-22020-L1i199308-199408
OAK,TRIM4#
8513SEAT MOTOR & SEAT HEATER
→ Go to FIG 85-13
9052001274
main90520-01274
9165640614
main91656-40614

25 parts on this diagram · 2 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
