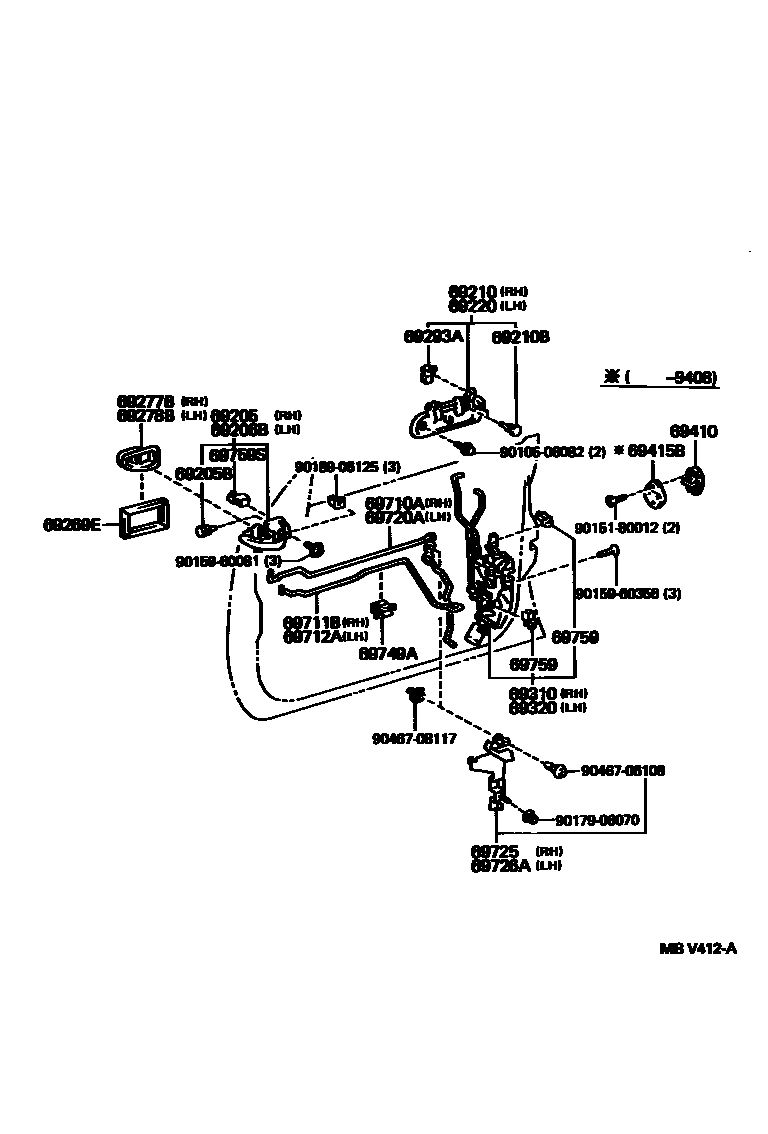

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-33010-01iVCV10199107-199308

BLACK,TRIM2#

main69205-33010-08iVCV10199107-199308

IVORY,TRIM0#

main69205-33010-J0iVCV10199107-199308

DARK BLUE,TRIM8#

main69205-33010-K0iVCV10199107-199308

TAUPE,TRIM9#

main69205-33020-C0iMCV10199308-199608

BLACK,TRIM2#

main69205-33020-E1iMCV10199308-199608

OAK,TRIM4#

main69205-33020-J0iMCV10199308-199408

DARK BLUE,TRIM8#

main69205-33020-K0iMCV10199308-199608

TAUPE,TRIM9#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iMCV10,VCV10199107-199608

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-33010-01iVCV10199107-199308

BLACK,TRIM2#

main69206-33010-08iVCV10199107-199308

IVORY,TRIM0#

main69206-33010-J0iVCV10199107-199308

DARK BLUE,TRIM8#

main69206-33010-K0iVCV10199107-199308

TAUPE,TRIM9#

main69206-33020-C0iMCV10199308-199608

BLACK,TRIM2#

main69206-33020-E1iMCV10199308-199608

OAK,TRIM4#

main69206-33020-J0iMCV10199308-199408

DARK BLUE,TRIM8#

main69206-33020-K0iMCV10199308-199608

TAUPE,TRIM9#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-32100-A0iMCV10,VCV10199107-199608

SUPER WHITE PEARL MC,051

main69210-32100-A1iMCV10..USA199603-199605

COACH EDITION,WARM GRAY PEARL MICA,046

main69210-32100-B0iMCV10..USA199603-199605

COACH EDITION,SUPER SILVER 3,176

main69210-32100-C0iMCV10,VCV10199107-199608

BLACK,202

main69210-32100-D0iMCV10,VCV10199107-199408

DK.MAUVE MC M,3K1

main69210-32100-D1iVCV10199107-199308

RED MC,3K3

main69210-32100-D2iMCV10,VCV10199107-199608

LT.GRAYISH ROSE M OP,3K7

main69210-32100-D3iMCV10199308-199508

RED M.M,3K4

main69210-32100-D5iMCV10199508-199608

MAGENTA MC.,3L3

main69210-32100-E0iVCV10199107-199308

BEIGE MC,4J1

main69210-32100-E2iMCV10199308-199608

BEIGE ME,4M9

main69210-32100-G0iMCV10,VCV10199107-199508

DK.GREEN MC,6M1

main69210-32100-G3iMCV10199508-199608

DK.GREEN M.M.,6P2

main69210-32100-J0iVCV10199107-199308

DK BLUE MC,8J4

main69210-32100-J1iMCV10199308-199608

DARK BLUE M.M,8K0

main69210-32100-K1iMCV10199408-199608

DK.GRAYISH PURPLE ME,928

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018×4iMCV10,VCV10199107-199608

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-32100-A0iMCV10199308-199608

SUPER WHITE PEARL MC,051

main69220-32100-A1iMCV10..USA199404-199406

THE 5TH ANNIVERSARY,WARM GRAY PEARL MICA,046

main69220-32100-B0iMCV10..USA199603-199605

COACH EDITION,SUPER SILVER 3,176

main69220-32100-C0iMCV10199308-199608

BLACK TONING G,202

main69220-32100-D0iMCV10199308-199408

DK.MAUVE MC M TONING,3K1

main69220-32100-D2iMCV10199308-199608

LT.GRAYISH ROSE M OP,3K7

main69220-32100-D3iMCV10199308-199508

RED M.M,3K4

main69220-32100-D5iMCV10199508-199608

MAGENTA MC.,3L3

main69220-32100-E2iMCV10199308-199608

BEIGE ME,4M9

main69220-32100-G0iMCV10199308-199508

DK.GREEN MC TONING G,6M1

main69220-32100-G3iMCV10199508-199608

DK.GREEN M.M.,6P2

main69220-32100-J0iMCV10199308-199608

DARK BLUE M.M,8K0

main69220-32100-K1iMCV10199408-199608

DK.GRAYISH PURPLE ME,928

main69220-33030-01iVCV10199107-199308

BLACK,202

main69220-33030-02iVCV10199107-199308

DARK MAUVE MICA M,3K1

main69220-33030-04iVCV10199107-199308

DARK BLUE MICA,8J4

main69220-33030-05iVCV10199107-199308

BEIGE MICA,4J1

main69220-33030-07iVCV10199107-199308

DARK GREEN MICA,6M1

main69220-33030-08iVCV10199107-199308

SUPER WHITE PEARL MC,051

main69220-33030-12iVCV10199107-199308

RED MICA,3K3

main69220-33030-22iVCV10199107-199308

LT GRAYISH ROSE M OP,3K7

69269ESEAL, FRONT DOOR INSIDE HANDLE

main69269-33010×2iVCV10199107-199308

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-33010-01iMCV10,VCV10199107-199408

BLACK,TRIM2#

main69277-33010-08iVCV10199107-199308

IVORY,TRIM0#

main69277-33010-22iMCV10199408-199608

BLACK,TRIM2#

main69277-33010-E1iMCV10199308-199608

OAK,TRIM4#

main69277-33010-J0iMCV10,VCV10199107-199408

DARK BLUE,TRIM8#

main69277-33010-K0iMCV10,VCV10199107-199608

TAUPE,TRIM9#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-33010-01iMCV10,VCV10199107-199408

BLACK,TRIM2#

main69278-33010-08iVCV10199107-199308

IVORY,TRIM0#

main69278-33010-22iMCV10199408-199608

BLACK,TRIM2#

main69278-33010-E1iMCV10199308-199608

OAK,TRIM4#

main69278-33010-J0iMCV10,VCV10199107-199408

DARK BLUE,TRIM8#

main69278-33010-K0iMCV10,VCV10199107-199608

TAUPE,TRIM9#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iMCV10,VCV10199107-199608

RH

main69293-12060iMCV10,VCV10199107-199608

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-33040iMCV10,VCV10199107-199608

69320LOCK ASSY, FRONT DOOR, LH

main69040-33040iMCV10,VCV10199107-199608

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-50010×2iMCV10,VCV10199107-199408

main69410-87001×2iMCV10199408-199608

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-50010×2iMCV10,VCV10199107-199408

69710ALEVER ASSY, FRONT DOOR LOCK CONTROL, RH

main69710-33010iMCV10,VCV10199107-199608

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-33010iMCV10,VCV10199107-199608

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-33010iMCV10,VCV10199107-199608

69720ALEVER ASSY, FRONT DOOR LOCK CONTROL, LH

main69720-33010iMCV10,VCV10199107-199608

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-33010iMCV10,VCV10199107-199608

69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH

main69726-33010iMCV10,VCV10199107-199608

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-50010×2iMCV10,VCV10199107-199608

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050×2iMCV10199408-199608

GREEN

main69759-24060×2iMCV10,VCV10199107-199408

GRAY

main69759-50030×2iMCV10,VCV10199107-199408

NATURAL

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050×2iMCV10199408-199608

LH

main69759-24070×2iMCV10; VCV10199107-199408

RH

9010506082

main90105-06082

9015180012

main90151-80012

9015960081

main90159-60081

9015960356

main90159-60356

9017906070

main90179-06070

9018906125

main90189-06125

9046706108

main90467-06108

9046708117

main90467-08117

31 parts on this diagram · 1 diagram in section
