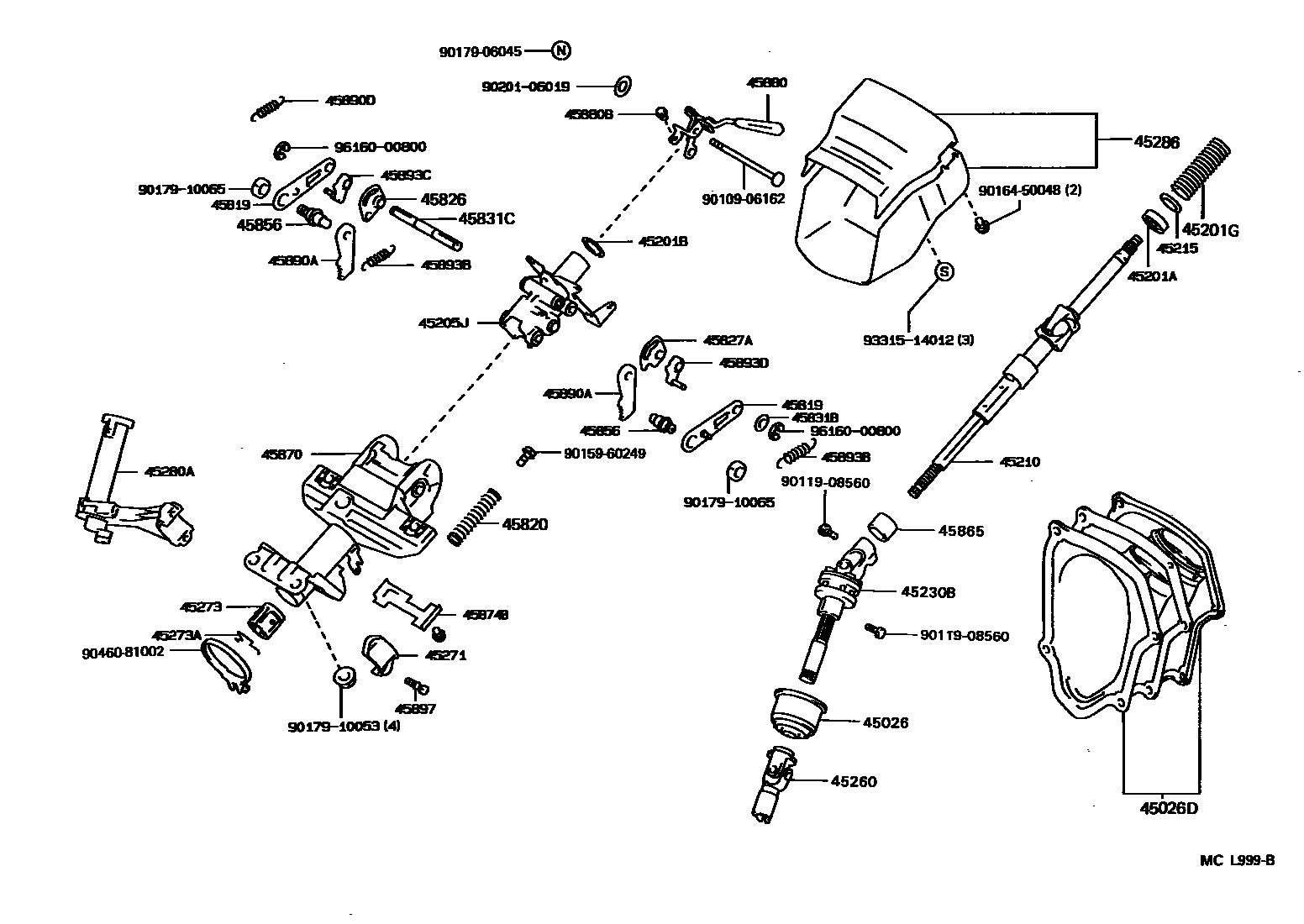

STEERING COLUMN & SHAFT
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026DCOVER SUB-ASSY, STEERING COLUMN HOLE
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER
45210SHAFT ASSY, STEERING MAIN
45215COLLAR, MAIN SHAFT BEARING THRUST
45230BJOINT ASSY, STEERING SHAFT UNIVERSAL
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45273ARING, HOLE SNAP(FOR STEERING MAIN SHAFT BUSH)
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
BLACK,TRIM2#
OAK,TRIM4#
GREIGE,TRIM0#
TAUPE,TRIM9#
DARK BLUE,TRIM8#
45819RETAINER, TILT LEVER
45820SPRING ASSY, TILT STEERING SUPPORT
45826LEVER, STEERING TILT
45827ALEVER, STEERING TILT SUB
45831BSPACER(FOR TILT LEVER LOCK SHAFT)
45831CSHAFT, TILT LEVER LOCK
45856BOLT, TILT STEERING, NO.2
OD=9.989-9.998
45865COLLAR, STEERING MAIN SHAFT
45870TUBE ASSY, STEERING COLUMN
45874BPROTECTOR, STEERING COLUMN, NO.1
45880LEVER ASSY, STEERING TILT
45880BSCREW(FOR STEERING TILT LEVER)
45890APAWL ASSY, TILT STEERING
RH
LH
45890DSPRING, TENSION(FOR TILT STEERING PAWL ASSY)
45893BSPRING, TENSION(FOR TILT STEERING PAWL STOPPER)
LH
RH
45893CSTOPPER, STEERING PAWL, RH
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
MARK 1
MARK 2
MARK 3
MARK 4
MARK 5
MARK 6
MARK 7
45893DSTOPPER, STEERING PAWL, LH
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK G
45897BOLT, STEERING LOCK SET
9010906162
main90109-06162
9011908560
main90119-08560
9015960249
main90159-60249
9016450048
main90164-50048
9017906045
main90179-06045
9017910053
main90179-10053
9017910065
main90179-10065
9020106019
main90201-06019
9046081002
main90460-81002
9331514012
main93315-14012
9616000800
main96160-00800
44 parts on this diagram · 1 diagram in section
