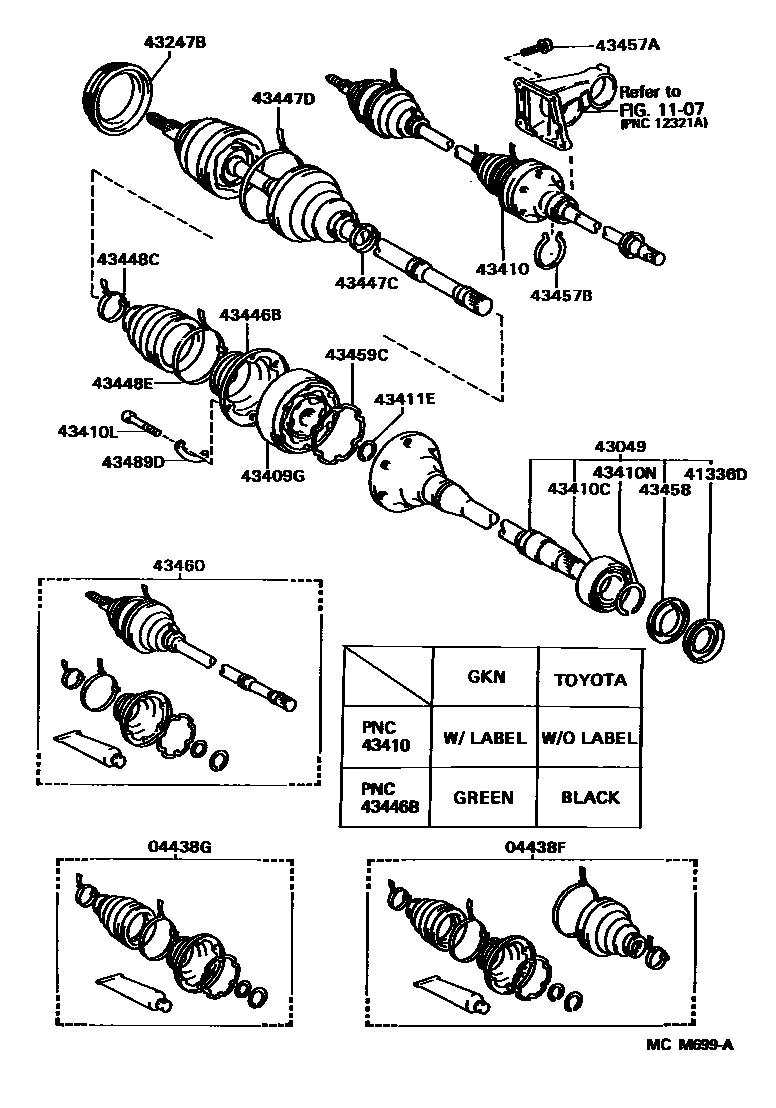

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-06040i199107-199308

GKN

main04438-06060i199308-199608

main04438-33020i199107-199210

TOYOTA

main04438-33021i199210-199308

TOYOTA

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-06030i199107-199308

GKN

main04438-06050i199308-199608

main04438-33010i199107-199210

TOYOTA

main04438-33011i199210-199308

TOYOTA

1107MOUNTING

→ Go to FIG 11-07

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-03030i199107-199308

GKN

main41336-06020i199308-199608

main41336-12020i199107-199308

TOYOTA

43049SHAFT SUB-ASSY, FRONT DRIVE FLANGE

main43049-06010i199107-199308

GKN

main43049-06020i199308-199608

main43049-33010i199107-199308

TOYOTA

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-06010i199107-199204

GKN

main43247-06010i199204-199608

main43247-12010i199107-199308

main43247-12010i199107-199204

TOYOTA

43409GJOINT SUB-ASSY, FRONT DRIVE SHAFT CROSS GROOVE, RH

main43409-06010i199107-199608

GKN

main43409-17010i199107-199308

TOYOTA

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-06040i199107-199308

GKN

main43410-06080i199308-199608

main43410-33040i199107-199308

TOYOTA

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90369-41001i199107-199608

43410LBOLT (FOR FRONT DRIVE SHAFT CROSS GROOVE JOINT RH)

main90080-11034i199107-199608

GKN

main90110-10007i199107-199308

TOYOTA

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013i199107-199608

GKN

main90520-38015i199107-199308

TOYOTA

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90080-52036i199107-199608

GKN

main90520-26028i199107-199308

TOYOTA

43446BCOVER, FRONT AXLE INBOARD JOINT, RH

main43446-03020i199107-199608

GKN

main43446-17010i199107-199308

TOYOTA

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16030i199107-199308

TOYOTA

main90080-46106i199107-199608

GKN

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16070i199107-199308

TOYOTA

main90080-46109i199107-199608

GKN

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16030i199107-199308

TOYOTA

main90080-46084i199107-199608

GKN

main90080-46084i199408-199608

main90080-46106i199308-199408

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16100i199307-199308

TOYOTA

main90080-46085i199107-199308

GKN

main90080-46173i199308-199608

main90949-01340i199107-199307

TOYOTA

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461i199107-199608

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-78002i199107-199608

43458COVER, FRONT DRIVE SHAFT DUST

main43458-03020i199107-199308

GKN

main43458-06020i199308-199608

main43458-12010i199107-199308

TOYOTA

43459CGASKET, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43459-06010i199107-199608

GKN

main43459-17010i199107-199308

TOYOTA

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-09090i199107-199308

GKN

main43470-09180i199308-199608

main43470-39205i199107-199210

TOYOTA

main43470-39206i199210-199308

TOYOTA

43489DWASHER, FRONT DRIVE SHAFT CROSS GROOVE JOINT, RH

main43489-03010i199107-199608

GKN

main43489-17010i199107-199308

TOYOTA
