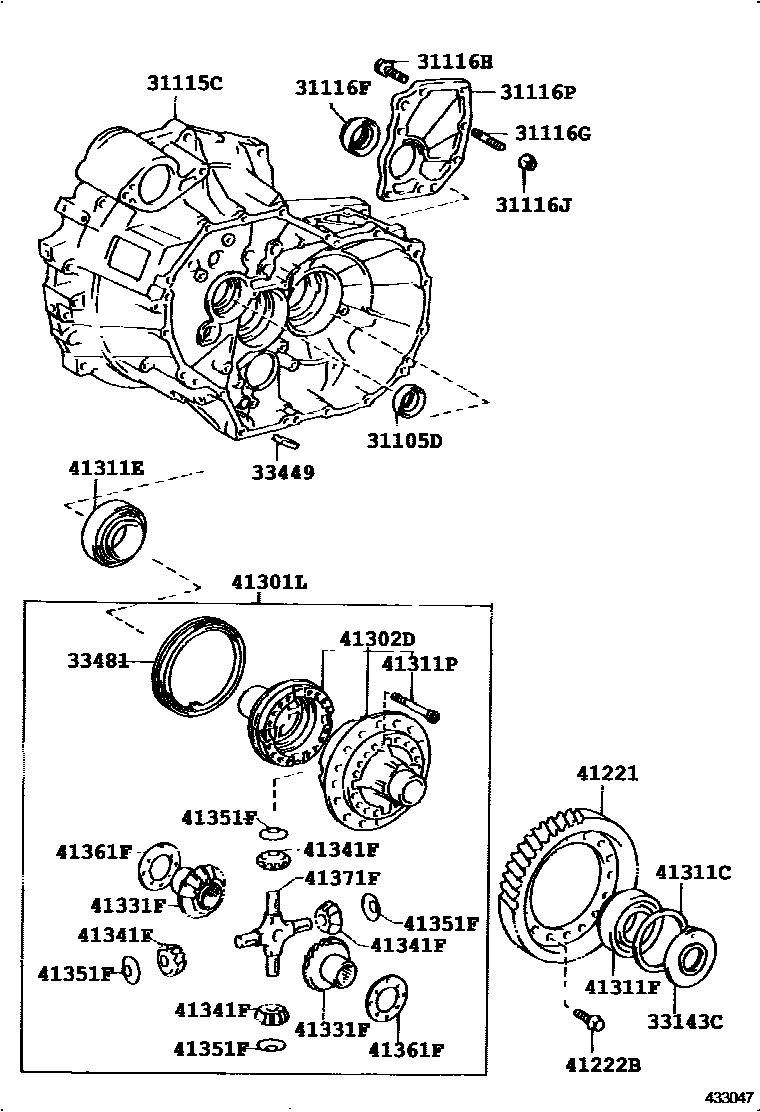

FRONT AXLE HOUSING & DIFFERENTIAL
31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
31115CCASE, FRONT TRANSAXLE(MTM)
31116FSEAL, OIL(FOR FRONT TRANSAXLE CASE COVER)
31116GBOLT, STUD(FOR FRONT TRANSAXLE CASE COVER)
31116HBOLT(FOR FRONT TRANSAXLE CASE COVER)
31116JNUT(FOR TRANSAXLE CASE COVER)
31116PCOVER, TRANSAXLE CASE
33143CBAFFLE, FRONT DIFFERENTIAL OIL
33449MAGNET, TRANSMISSION
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=35
41221GEAR, FRONT DIFFERENTIAL RING
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
41302DCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.2
41311CASE, FRONT DIFFERENTIAL
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK 0
T=2.05,MARK 1
T=2.10,MARK 2
T=2.15,MARK 3
T=2.20,MARK 4
T=2.25,MARK 5
T=2.30,MARK 6
T=2.35,MARK 7
T=2.40,MARK 8
T=2.45,MARK 9
T=2.50,MARK A
T=2.55,MARK B
T=2.60,MARK C
T=2.65,MARK D
T=2.70,MARK E
T=2.75,MARK F
T=2.80,MARK G
T=2.85,MARK H
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311PBOLT (FOR FRONT DIFFERENTIAL CASE)
41331FGEAR, FRONT DIFFERENTIAL SIDE
41341FPINION, FRONT DIFFERENTIAL
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.625
T=0.80,MARK FA
T=0.90,MARK FB
T=1.00,MARK FC
T=1.10,MARK FD
T=1.20,MARK FE
T=1.30,MARK FF
T=1.40,MARK FG
T=0.80
T=0.90
T=1.00
T=1.10
T=1.20
T=1.30
T=1.40
T=1.725
T=1.825
41371FSPIDER, FRONT DIFFERENTIAL
24 parts on this diagram · 3 diagrams in section
