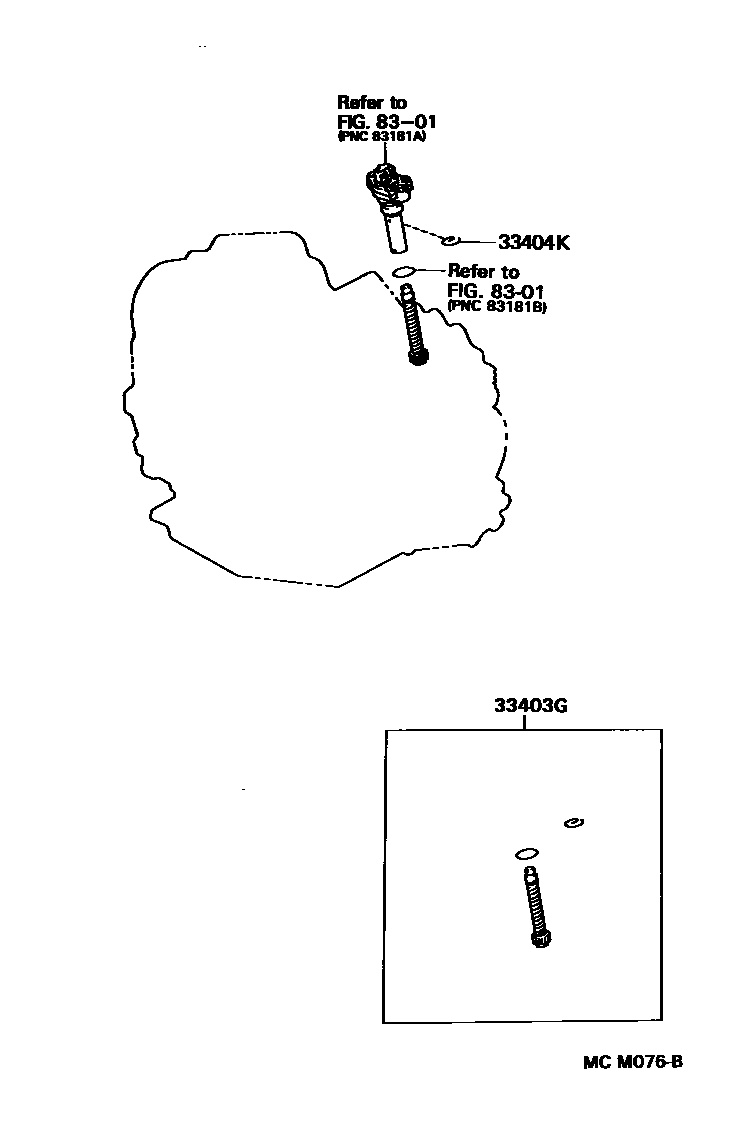

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39285iVCV10..ATM199107-199308

N=24,MARK 24:30

main33403-39475iMCV10199308-199608

N=24,MARK 24:30

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iMCV10,VCV10..ATM199107-199608

8301METER

→ Go to FIG 83-01

3 parts on this diagram · 1 diagram in section
