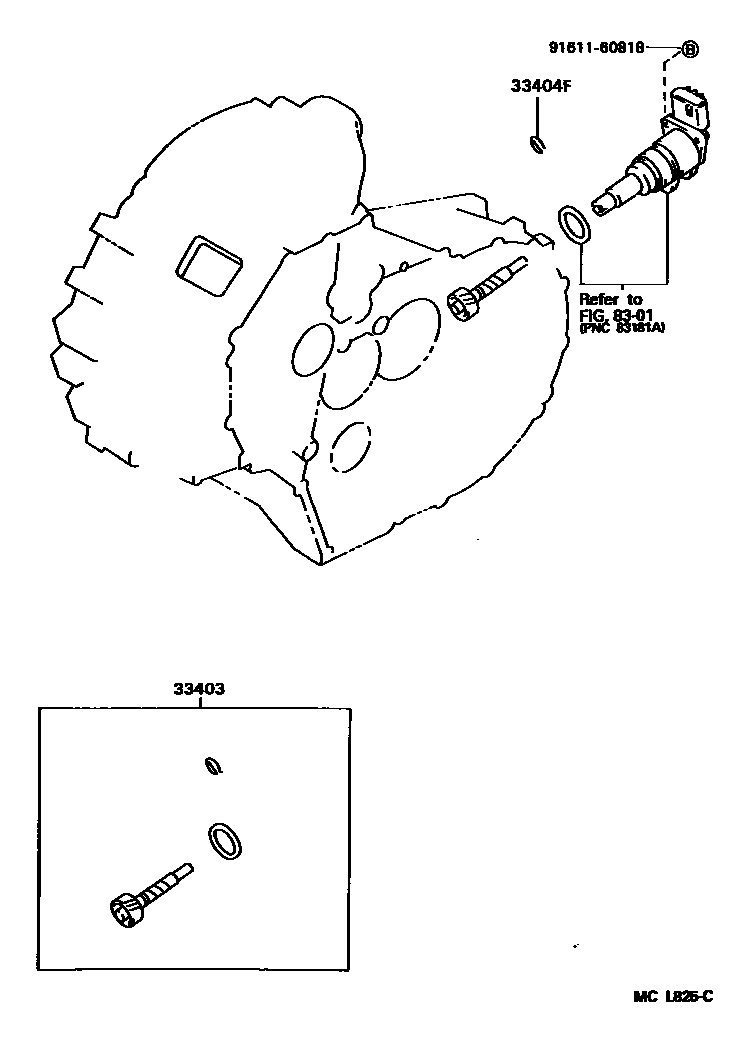

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39255iVCV10..MTM199107-199204

N=28,MARK 28:35

main33403-39256iVCV10..MTM199204-199308

N=28,MARK 28:35

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iVCV10..MTM199107-199308

8301METER

→ Go to FIG 83-01

9161160818

main91611-60818

4 parts on this diagram · 1 diagram in section
