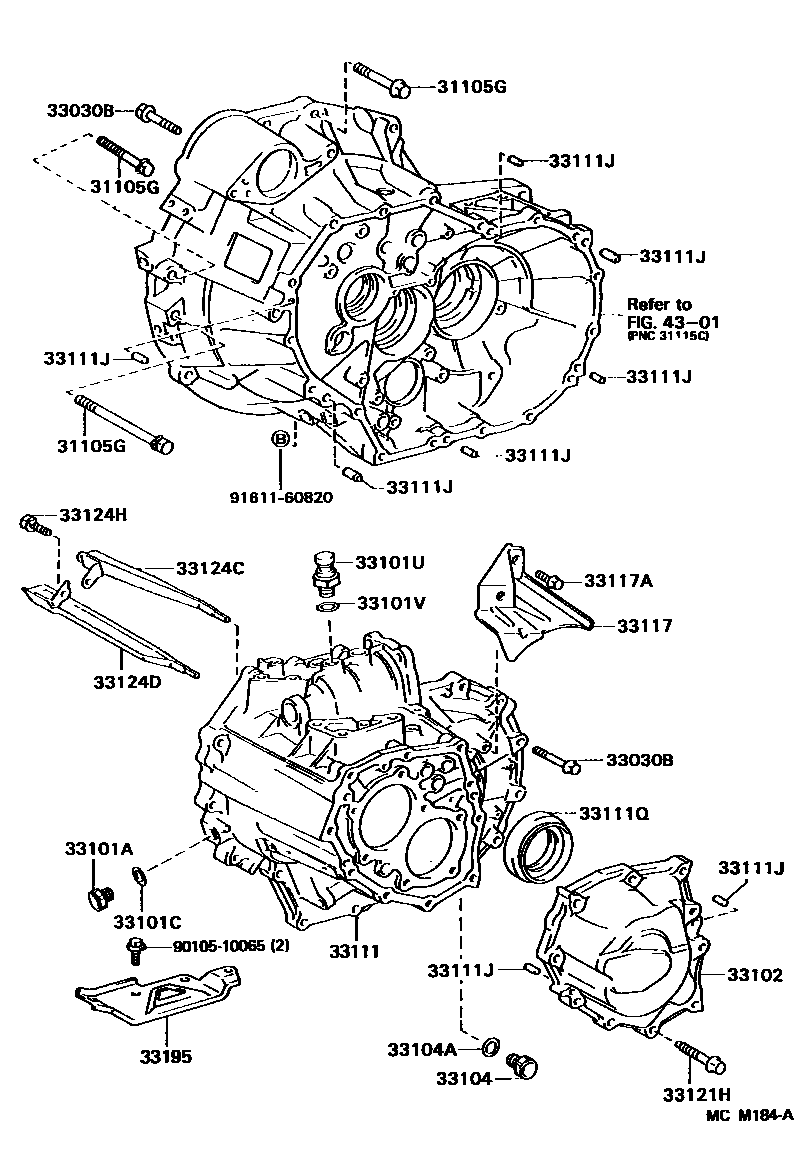

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-12038i199107-199308

*12-1.25PX72-25

main90119-12168×2i199107-199308

*12-1.25PX55-30

main90119-12252i199109-199308

*12-1.25PX60-30

main91611-61045×2i199107-199308

*10-1.25PX95-50

main91619-61260i199107-199109

*12-1.25PX60-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08126×17i199107-199308

*8-1.25PX45-27.5

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033i199107-199308

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008i199107-199308

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03111i199107-199308

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008i199107-199308

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-33010i199107-199308

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006i199107-199308

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008i199107-199308

33111CASE, MANUAL TRANSMISSION

main33101-20050i199201-199308

main33101-33010i199107-199201

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×6i199107-199308

L=23,OD=8

main90250-12005×2i199107-199308

L=24,OD=12

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-50010i199107-199308

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020i199107-199308

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040×2i199107-199308

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273×10i199107-199308

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20020i199107-199308

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-20030i199107-199308

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648i199107-199308

33195HANGER, TRANSMISSION CASE, NO.1

main33195-33020i199107-199308

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9010510065

main90105-10065

9161160820

main91611-60820

22 parts on this diagram · 1 diagram in section
