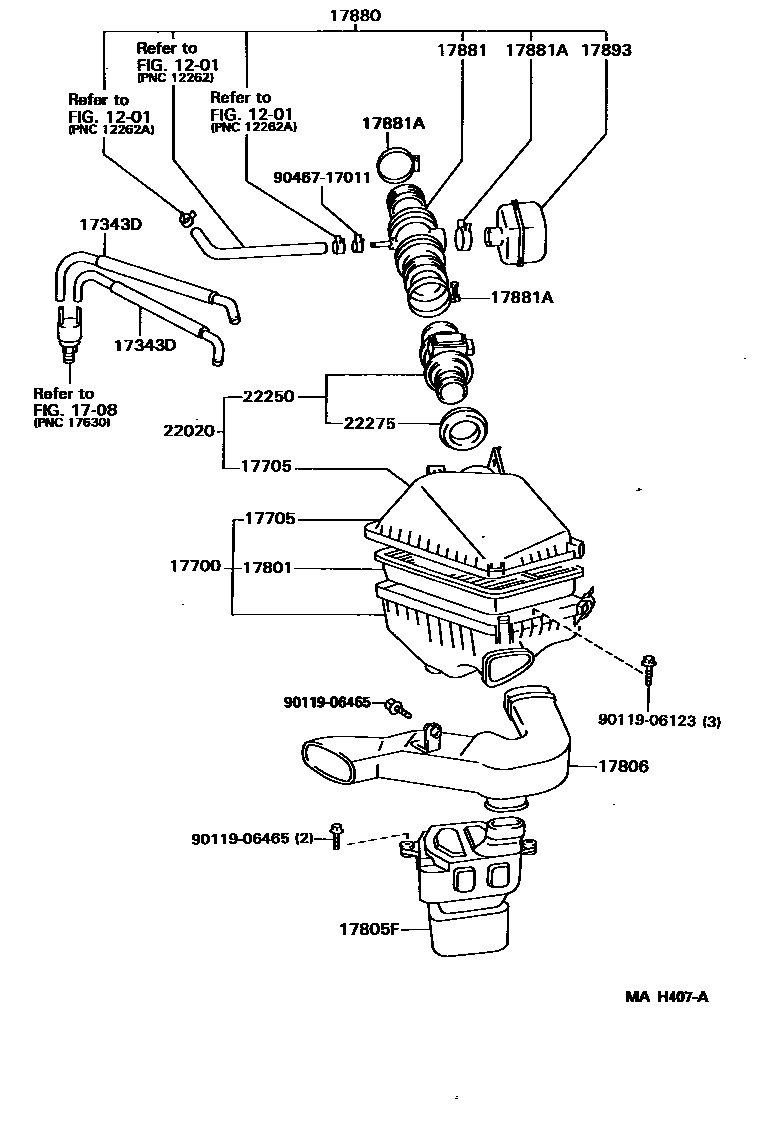

AIR CLEANER
1201
1708
17343DHOSE, AIR, NO.3
17700CLEANER ASSY, AIR
CALIFORNIA SPEC
17705CAP SUB-ASSY, AIR CLEANER
CALIFORNIA SPEC
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805FRESONATOR SUB-ASSY, INTAKE AIR
17806PIPE SUB-ASSY, AIR CLEANER, NO.2
sub17806-20010
17880HOSE ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
RESONATOR SIDE
THROTTLE BODY SIDE
AIR FLOW METER SIDE
AIR FLOW METER SIDE
17893RESONATOR, INTAKE AIR
22250METER ASSY, INTAKE AIR FLOW
22275GASKET, AIR FLOW METER
9011906123
main90119-06123
9011906465
main90119-06465
9046717011
main90467-17011
18 parts on this diagram · 2 diagrams in section
