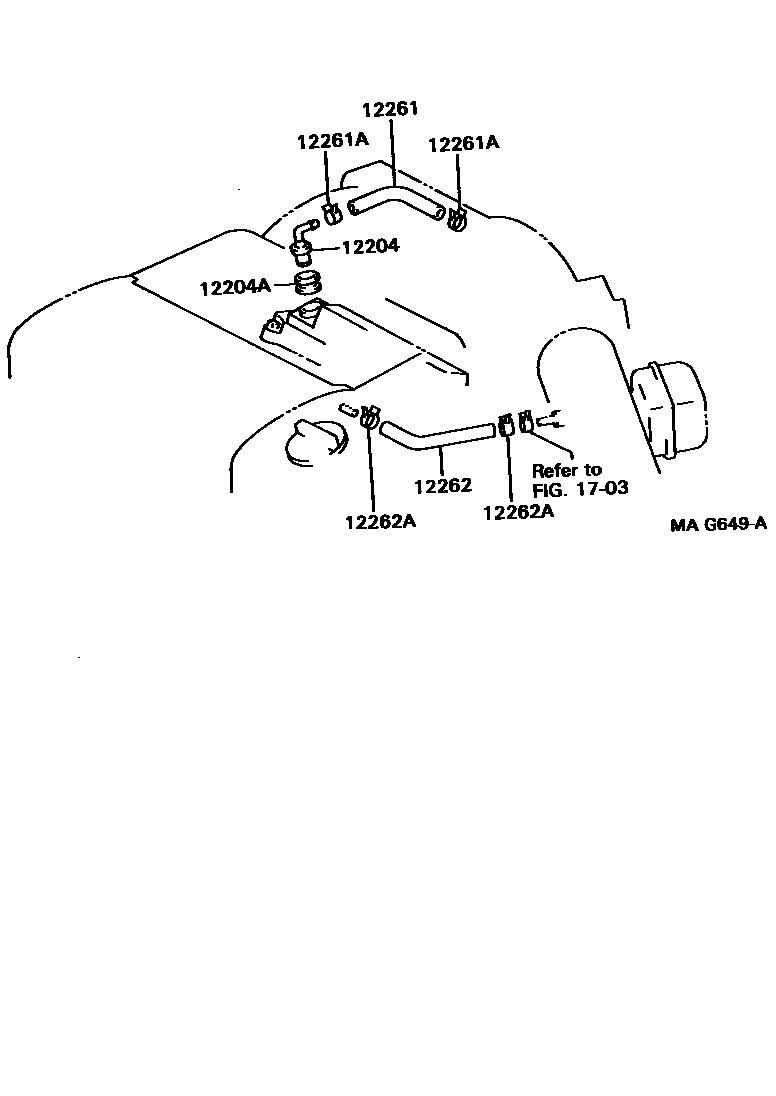

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-20010i1MZFE..MCV10199308-199608

main12204-62010i3VZFE..VCV10199107-199308

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i3VZFE..VCV10199107-199608

12261HOSE, VENTILATION

main12261-20010i1MZFE..MCV10199308-199608

sub12261-20011

main12261-62030i3VZFE..VCV10199107-199308

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017i3VZFE..VCV10199107-199608

12262HOSE, VENTILATION, NO.2

main12262-20010i1MZFE..MCV10199308-199608

main12262-62040i3VZFE..VCV10199107-199308

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-17011i1MZFE..MCV10199107-199608

sub96134-51700

1703

7 parts on this diagram · 2 diagrams in section
