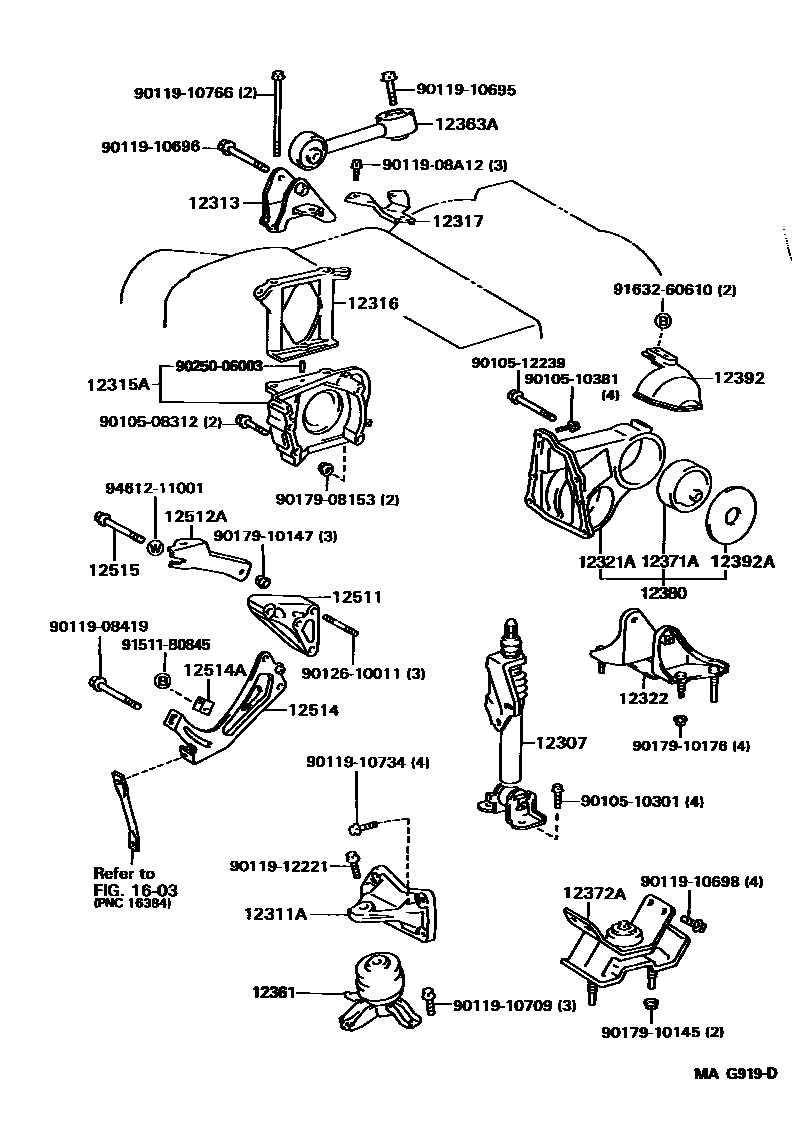

12307ABSORBER SUB-ASSY, ENGINE MOUNTING

main12307-62010i199107-199608

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-20020i199308-199507

main12311-20030i199507-199608

main12311-62020i199107-199308

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-20010i199308-199608

main12313-62020i199107-199308

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-20020i199308-199608

main12315-62030i199107-199208

main12315-62031i199208-199308

12316BRACKET, ENGINE MOUNTING, NO.2 RH

main12316-62020i199107-199608

12317STAY, ENGINE MOUNTING, RH

main12317-20010i199308-199608

main12317-62030i199107-199308

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-20020i199308-199608

main12321-62060i199107-199308

main12321-62070i199107-199308

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-20020i199308-199608

main12322-62010i199107-199308

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-20020i199308-199608

12363AROD, ENGINE MOVING CONTROL

main12363-62010i199107-199308

main12363-62020i199107-199608

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-62050i199107-199308

main12371-62060i199107-199608

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-62070i199107-199308

main12372-62080i199107-199608

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-20010i199308-199608

12392INSULATOR, ENGINE MOUNTING HEAT, FRONT LH

main12392-62010i199107-199608

12392AINSULATOR, ENGINE MOUNTING HEAT, REAR

main12392-62020i199107-199608

main12392-62030i199107-199308

12511BRACKET, ALTERNATOR, NO.1

main12511-20020i199308-199608

12512ABRACKET, ALTERNATOR, NO.2

main12512-20010i199308-199608

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-20010i199308-199608

12514ASLIDER, FAN BELT ADJUSTING

main16385-20010i199308-199608

12515BOLT, ALTERNATOR THROUGH

main12515-20010i199308-199608

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9010508312

main90105-08312

9010510301

main90105-10301

9010510381

main90105-10381

9010512239

main90105-12239

9011908419

main90119-08419

9011908A12

main90119-08A12

9011910695

main90119-10695

9011910696

main90119-10696

9011910698

main90119-10698

9011910709

main90119-10709

9011910734

main90119-10734

9011910766

main90119-10766

9011912221

main90119-12221

9012610011

main90126-10011

9017908153

main90179-08153

9017910145

main90179-10145

9017910147

main90179-10147

9017910176

main90179-10176

9025006003

main90250-06003

91511B0845

main91511-B0845

9163260610

main91632-60610

9461211001

main94612-11001
