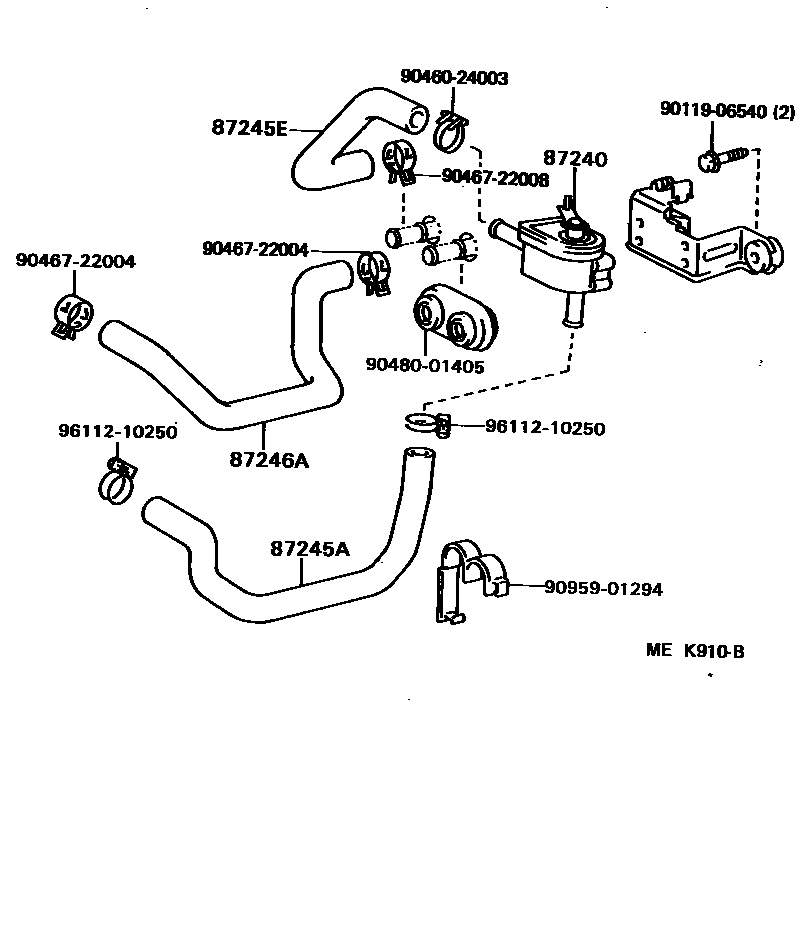

HEATING & AIR CONDITIONING - WATER PIPING

87240VALVE ASSY, HEATER WATER

main87240-32030iVZV21198906-199107

87245AHOSE, HEATER WATER, INLET A

main87245-32170iVZV21198906-199107

87245EHOSE, HEATER WATER, INLET E

main87245-32080iVZV21198906-199107

87246AHOSE, HEATER WATER, OUTLET A

main87245-32190iVZV21198906-199107

9011906540

main90119-06540

9046024003

main90460-24003

9046722004

main90467-22004

9046722008

main90467-22008

9048001405

main90480-01405

9095901294

main90959-01294

9611210250

main96112-10250

11 parts on this diagram · 1 diagram in section
