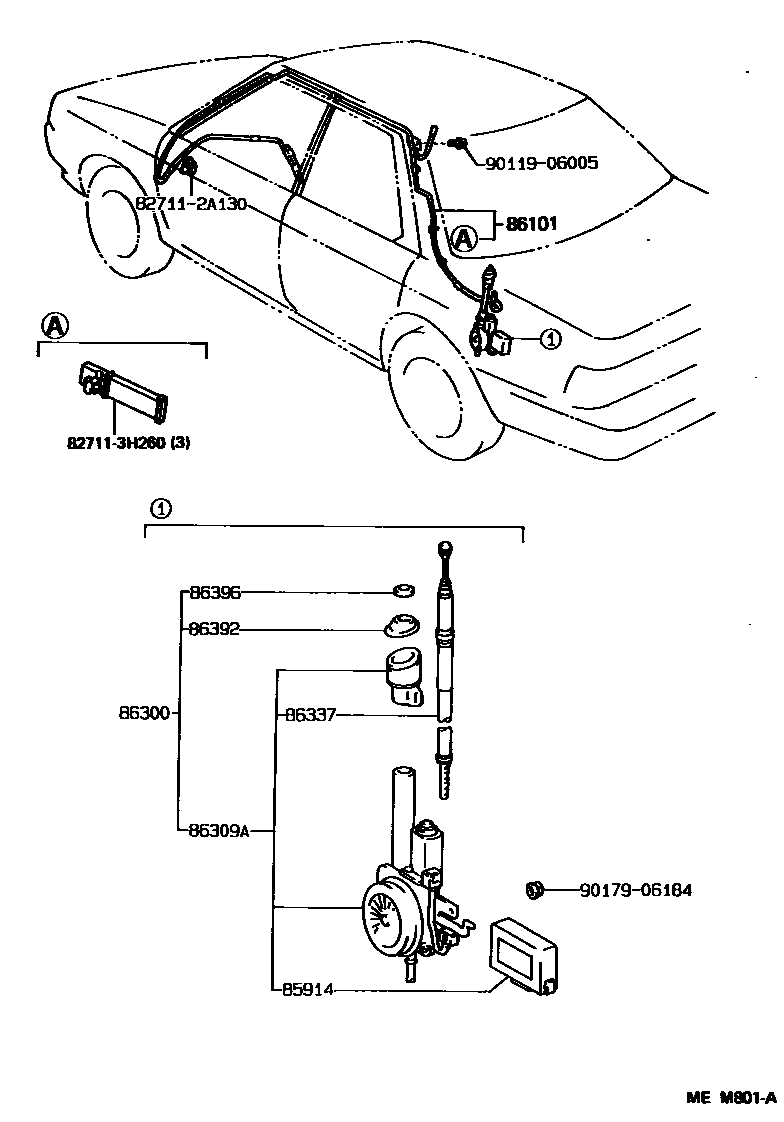

ANTENNA

85914RELAY, MOTOR ANTENNA CONTROL

main85914-30010iVZV21198906-199107

86101CORD SUB-ASSY, ANTENNA

main86101-32070iVZV21198906-199107

86300ANTENNA ASSY, W/HOLDER

main86300-32200iVZV21198906-199107

86309APOLE SUB-ASSY, MOTOR ANTENNA

main86309-32110iVZV21198906-199107

86337ROD & PIPE, SEALED W/CABLE

main86337-32200iVZV21198906-199107

86392ORNAMENT, ANTENNA

main86392-32060iVZV21198906-199107

86396NUT, ANTENNA

main86396-50010iVZV21198906-199107

827112A130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A130

827113H260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H260

9011906005

main90119-06005

9017906184

main90179-06184

11 parts on this diagram · 1 diagram in section
