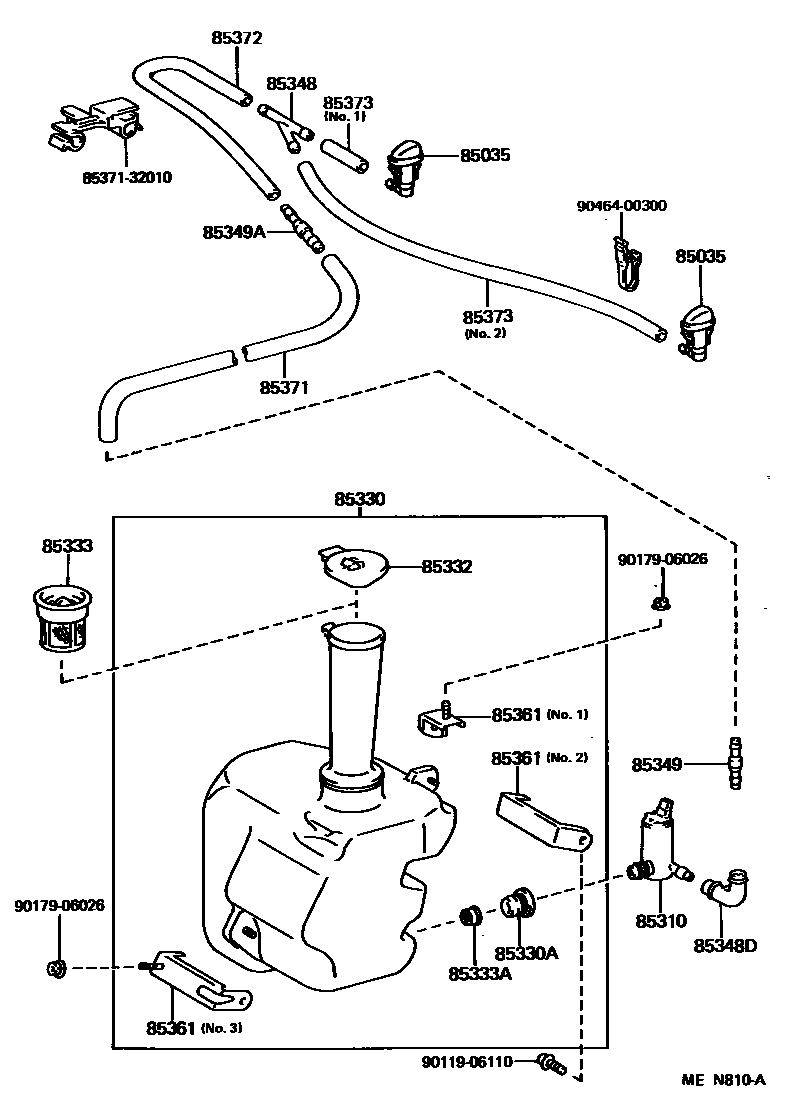

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
BLACK,202 ,6K4 ,8G5,LH
DEEP RED MC,3H8,LH
GRAY M.,184,LH
GRAISH BLUE M.,8D6,LH
BEIGE MC M.,4J1,LH
WHITE PEARL MC,051,LH
BLACK,202 ,6K4 ,8G5,RH
DEEP RED MC,3H8,RH
GRAY M.,184,RH
GRAISH BLUE M.,8D6,RH
BEIGE MC M.,4J1,RH
WHITE PEARL MC,051,RH
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85333AFILTER, WINDSHIELD WASHER JAR, NO.2
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
85361HOLDER, WINDSHIELD WASHER
NO.1
NO.1
NO.2
NO.3
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=1060
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=550),NO.2
L=1100(*H,L=50),NO.1
8537132010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-32010
9011906110
main90119-06110
9017906026
main90179-06026
9046400300
main90464-00300
19 parts on this diagram · 1 diagram in section
