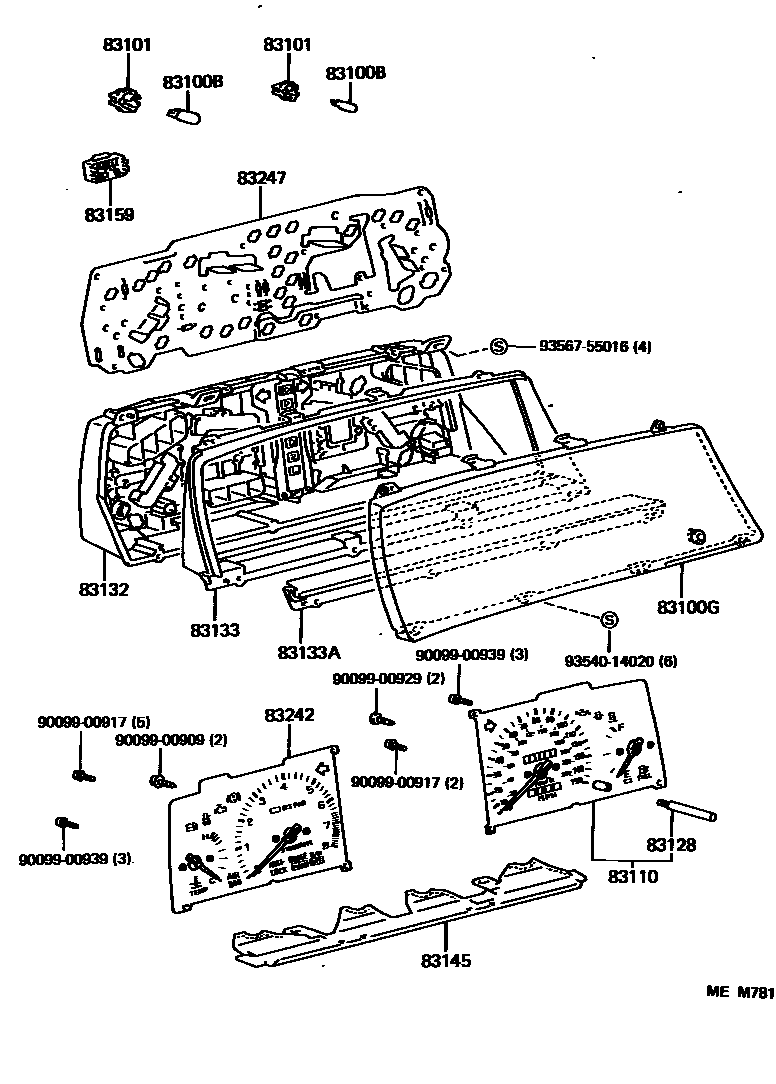

METER

0001 1 0002 1SOCKET & BULB 0003 1

83100BBULB, COMBINATION METER, NO.1

main83109-30070×3iVZV21..4FC198906-199107

14V 2.0W,W/O SOCKET

main83109-32020×4iVZV21198906-199107

12V3.4W W(GREEN CAP)

main83109-32030×2iVZV21198906-199107

12V3.0W W(GREEN CAP)

main90981-11018×13iVZV21..4FC; VZV21..5F198906-199107

12V 1.2W W/O SOCKET

main99132-12034iVZV21198906-199107

12V 3.4W

83100GGLASS, COMBINATION METER

main83138-32110iVZV21198906-199107

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×3iVZV21198906-199107

NO.1

main83101-14040×13iVZV21..4FC; VZV21..5F198906-199107

NO.2

main83101-32020×4iVZV21198906-199107

NO.3

83110SPEEDOMETER ASSY

main83110-32590iVZV21..USA198906-199102

main83110-32591iVZV21..USA199102-199107

main83110-32680iVZV21..CND199008-199102

main83110-32681iVZV21..CND199102-199107

83128KNOB, TRIP COUNTER

main83128-14630iVZV21..USA198906-199107

83132CASE, COMBINATION METER

main83132-3H090iVZV21..5F198906-199107

main83132-3H110iVZV21..4FC198906-199107

83133PLATE, COMBINATION METER, NO.1

main83133-32750iVZV21198906-199107

83133APLATE, COMBINATION METER, NO.2

main83133-32770iVZV21198906-199107

83145LENS, METER, NO.1

main83145-32410iVZV21198906-199107

83159SWITCH, METER, NO.1

main83159-22170iVZV21198906-199107

83242TACHOMETER ASSY, ENGINE

main83242-32400iVZV21..5F198906-199008

main83242-32420iVZV21..4FC198906-199008

main83242-32860iVZV21..5F199008-199107

main83242-32880iVZV21..4FC..USA199008-199107

main83242-32900iVZV21..CND199008-199107

83247PLATE, METER CIRCUIT

main83149-32070iVZV21..5F198906-199107

main83149-32090iVZV21..4FC198906-199107

9009900909

main90099-00909

9009900917

main90099-00917

9009900929

main90099-00929

9009900939

main90099-00939

9354014020

main93540-14020

9356755016

main93567-55016

18 parts on this diagram · 3 diagrams in section
