WIRING & CLAMP

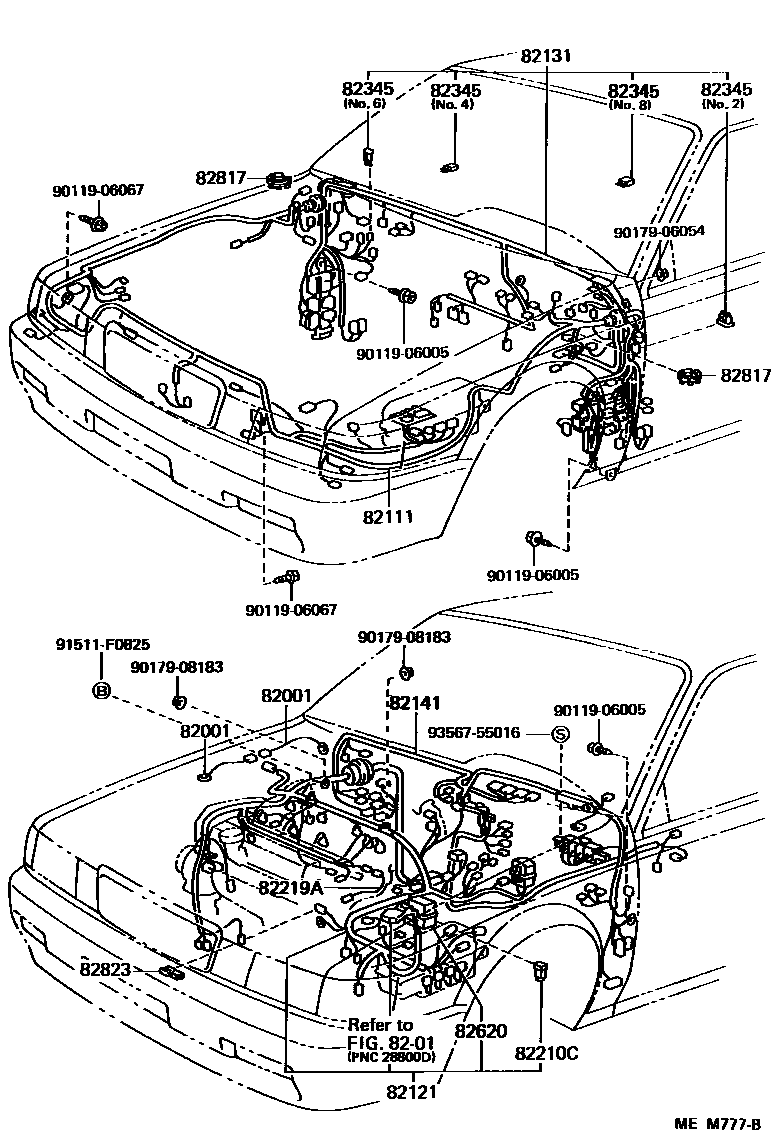

Parts diagram

82001CABLE, BOND, NO.1

main90980-07270i198906-199107

ENGINE

main90980-07287i198906-199107

SUSPENSION TOWER

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

82111WIRE, ENGINE ROOM MAIN

main82111-32530i198906-199005

main82111-32531i199005-199107

main82111-32720i199005-199107

main82111-32730i199008-199107

82121WIRE, ENGINE

main82121-3H421i198906-199003

main82121-3H422i199003-199008

main82121-3H423i199008-199107

main82121-3H431i198906-199005

main82121-3H432i199005-199008

main82121-3H434i199008-199107

82131WIRE, COWL

main82131-3P050i198906-198912

main82131-3P051i198912-199006

main82131-3P052i199006-199107

main82131-3P291i199008-199107

82141WIRE, INSTRUMENT PANEL

main82141-32480i198906-199107

main82141-32650i199008-199107

82210CFUSIBLE LINK

main90982-08188i198906-199107

30A,TERM.:FEMALE,PNK

main90982-08189i198906-199107

40A,TERM.:FEMALE,GRN

main90982-08203i198912-199107

80A,TERM.:MALE,BLK

main90982-08253i198906-198912

80A,TERM.:MALE,BLK

82219AWIRE, SENSOR

main82219-32060i198906-199107

82345DIODE

main82345-12030i198906-199107

COWR WIRE,NO.8

main82345-12030i198906-199107

COWL WIRE,NO.8

main82345-20040i198906-199107

COWL WIRE,NO.2

main82345-20060i198906-199107

COWL WIRE,NO.4

main82345-32010i198906-199107

COWL WIRE,NO.6

82620BLOCK ASSY, FUSIBLE LINK

main82620-32110i198906-199107

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730i199003-199107

main82817-32420i198906-199107

82823CAP, TERMINAL, NO.1

main82823-20030i198906-199003

main82823-22050i199003-199008

main82823-22060i199008-199107

9011906005

main90119-06005

9011906067

main90119-06067

9017906054

main90179-06054

9017908183

main90179-08183

91511F0825

main91511-F0825

9356755016

main93567-55016

18 parts on this diagram · 5 diagrams in section
