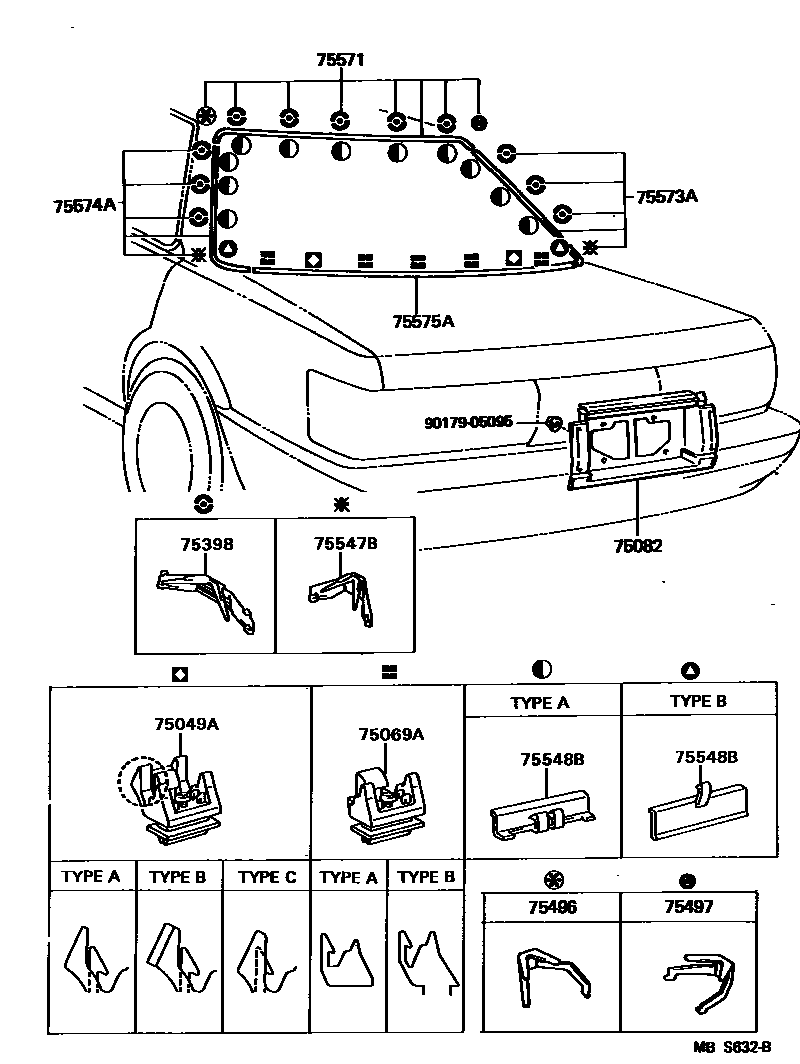

REAR MOULDING
75049ACLIP SUB-ASSY, OUTSIDE MOULDING, NO.2
TYPE A
TYPE B
TYPE C
TYPE C
75069ACLIP SUB-ASSY, OUTSIDE MOULDING, NO.4
TYPE A
TYPE B
75082PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
BLACK,202
DEEP RED MICA,3H8
GRAY M,184
GRAYISH BLUE M,8D6
BEIGE MICA M,4J1
DARK GREEN M I O,6K4
WHITE PEARL MICA,051
DARK BLUE MICA M,8G5
75398CLIP, OUTSIDE MOULDING, NO.5
75496CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75497CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75548BFASTENER, BACK WINDOW OUTSIDE MOULDING
TYPE A
TYPE B
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
75573AMOULDING, BACK WINDOW, OUTSIDE RH
75574AMOULDING, BACK WINDOW, OUTSIDE LH
75575AMOULDING, BACK WINDOW, OUTSIDE LOWER
9017905095
main90179-05095
13 parts on this diagram · 1 diagram in section
