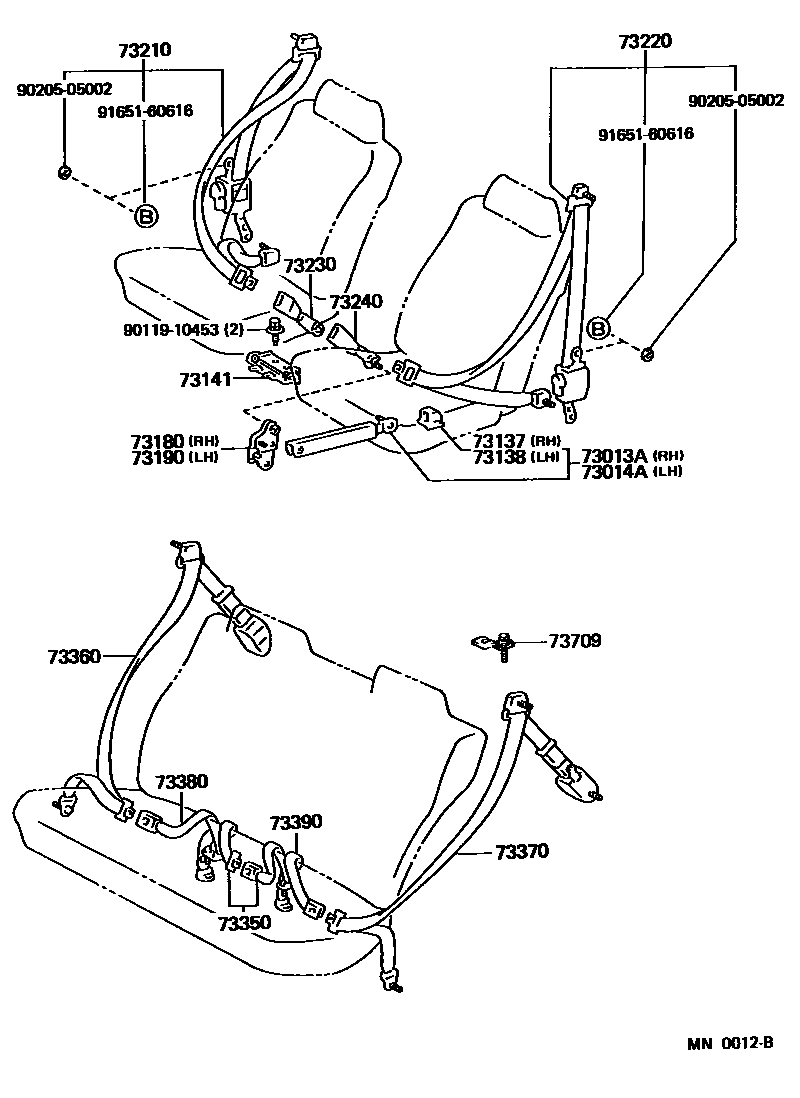

SEAT BELT & CHILD RESTRAINT SEAT
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73014APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73137CAP, FRONT SEAT BELT INNER ANCHOR, RH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73138CAP, FRONT SEAT BELT INNER ANCHOR, LH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73141BASE, FRONT SEAT BELT ANCHOR
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73230BELT ASSY, FRONT SEAT INNER, RH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73240BELT ASSY, FRONT SEAT INNER, LH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
W(POWER SEAT),BLACK,TRIM1#
W(POWER SEAT),MAROON,TRIM3#
W(POWER SEAT),DARK BLUE,TRIM8#
GREIGE,TRIM0#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
73709BRACKET SUB-ASSY, TETHER ANCHOR
9011910453
main90119-10453
9020505002
main90205-05002
9165160616
main91651-60616
20 parts on this diagram · 1 diagram in section
