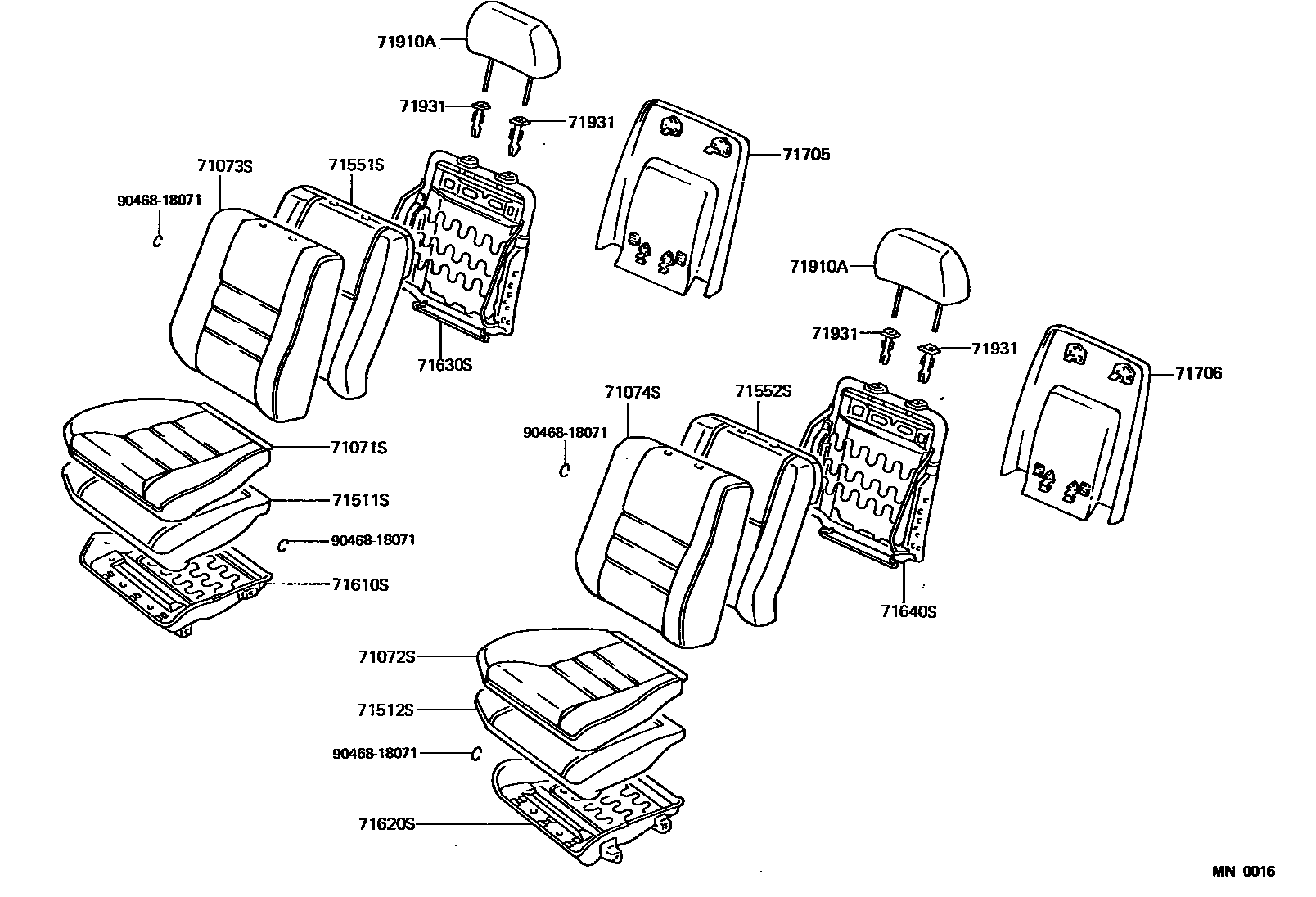

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-3H080-02iVZV21198906-199107

MAROON,TRIM3#

main71071-3H080-03iVZV21198906-199107

MEDIUM GRAY,TRIM1#

main71071-3H080-04iVZV21198906-199107

DARK BLUE,TRIM8#

main71071-3H090-02iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#

main71071-3H090-03iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MEDIUM GRAY,TRIM1#

main71071-3H090-04iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#

main71071-3H090-08iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),IVORY,TRIM0#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-3H060-02iVZV21198906-199107

MAROON,TRIM3#

main71072-3H060-03iVZV21198906-199107

MEDIUM GRAY,TRIM1#

main71072-3H060-04iVZV21198906-199107

DARK BLUE,TRIM8#

main71072-3H070-02iVZV21198906-199107

W(POWER SEAT),MAROON,TRIM3#

main71072-3H070-03iVZV21198906-199107

W(POWER SEAT),MEDIUM GRAY,TRIM1#

main71072-3H070-04iVZV21198906-199107

W(POWER SEAT),DARK BLUE,TRIM8#

main71072-3H080-02iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#

main71072-3H080-03iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MEDIUM GRAY,TRIM1#

main71072-3H080-04iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#

main71072-3H080-08iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),IVORY,TRIM0#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-32740-02iVZV21198906-199107

MAROON,TRIM3#

main71073-32740-03iVZV21198906-199107

MEDIUM GRAY,TRIM1#

main71073-32740-04iVZV21198906-199107

DARK BLUE,TRIM8#

main71073-32750-02iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#

main71073-32750-03iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MEDIUM GRAY,TRIM1#

main71073-32750-04iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#

main71073-32750-08iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),IVORY,TRIM0#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-32740-02iVZV21198906-199107

MAROON,TRIM3#

main71073-32740-03iVZV21198906-199107

MEDIUM GRAY,TRIM1#

main71073-32740-04iVZV21198906-199107

DARK BLUE,TRIM8#

main71073-32750-02iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#

main71073-32750-03iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MEDIUM GRAY,TRIM1#

main71073-32750-04iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#

main71073-32750-08iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),IVORY,TRIM0#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-32090iVZV21198906-199107

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-32120iVZV21198906-199107

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-32120iVZV21198906-199107

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-32120iVZV21198906-199107

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-32070iVZV21198906-199107

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-32010iVZV21198906-199107

main71620-32020iVZV21198906-199107

W(POWER SEAT)

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-32150iVZV21198906-199107

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-32150iVZV21198906-199107

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-32250-02iVZV21198906-199107

MAROON,TRIM3#

main71705-32250-03iVZV21198906-199107

MEDIUM GRAY,TRIM1#

main71705-32250-04iVZV21198906-199107

DARK BLUE,TRIM8#

main71705-32260-02iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#

main71705-32260-03iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MEDIUM GRAY,TRIM1#

main71705-32260-04iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#

main71705-32260-08iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),IVORY,TRIM0#

71706BOARD SUB-ASSY, FRONT SEATBACK, LH

main71705-32250-02iVZV21198906-199107

MAROON,TRIM3#

main71705-32250-03iVZV21198906-199107

MEDIUM GRAY,TRIM1#

main71705-32250-04iVZV21198906-199107

DARK BLUE,TRIM8#

main71705-32260-02iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MAROON,TRIM3#

main71705-32260-03iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),MEDIUM GRAY,TRIM1#

main71705-32260-04iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),DARK BLUE,TRIM8#

main71705-32260-08iVZV21198906-199107

LEATHER PACKAGE & W(POWER SEAT),IVORY,TRIM0#

71910AHEADREST ASSY, FRONT SEAT

main71910-32430-02×2iVZV21198906-199107

MAROON,TRIM3#

main71910-32430-03×2iVZV21198906-199107

MEDIUM GRAY,TRIM1#

main71910-32430-04×2iVZV21198906-199107

DARK BLUE,TRIM8#

main71910-32440-02×2iVZV21198906-199107

LEATHER PACKAGE,MAROON,TRIM3#

main71910-32440-03×2iVZV21198906-199107

LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main71910-32440-04×2iVZV21198906-199107

LEATHER PACKAGE,DARK BLUE,TRIM8#

main71910-32440-08×2iVZV21198906-199107

LEATHER PACKAGE,IVORY,TRIM0#

71931SUPPORT, FRONT SEAT HEADREST

main71930-10060-18×2iVZV21198906-199107

W(LOCK),IVORY,TRIM0#

main71930-10060-B0×2iVZV21198906-199107

W(LOCK),MEDIUM GRAY,TRIM1#

main71930-10060-D0×2iVZV21198906-199107

W(LOCK),MAROON,TRIM3#

main71930-10060-J0×2iVZV21198906-199107

W(LOCK),DARK BLUE,TRIM8#

main71931-10010-18×2iVZV21198906-199107

W/O(LOCK),IVORY,TRIM0#

main71931-10010-B0×2iVZV21198906-199107

W/O(LOCK),MEDIUM GRAY,TRIM1#

main71931-10010-D0×2iVZV21198906-199107

W/O(LOCK),MAROON,TRIM3#

main71931-10010-J0×2iVZV21198906-199107

W/O(LOCK),DARK BLUE,TRIM8#

9046818071

main90468-18071

17 parts on this diagram · 3 diagrams in section
