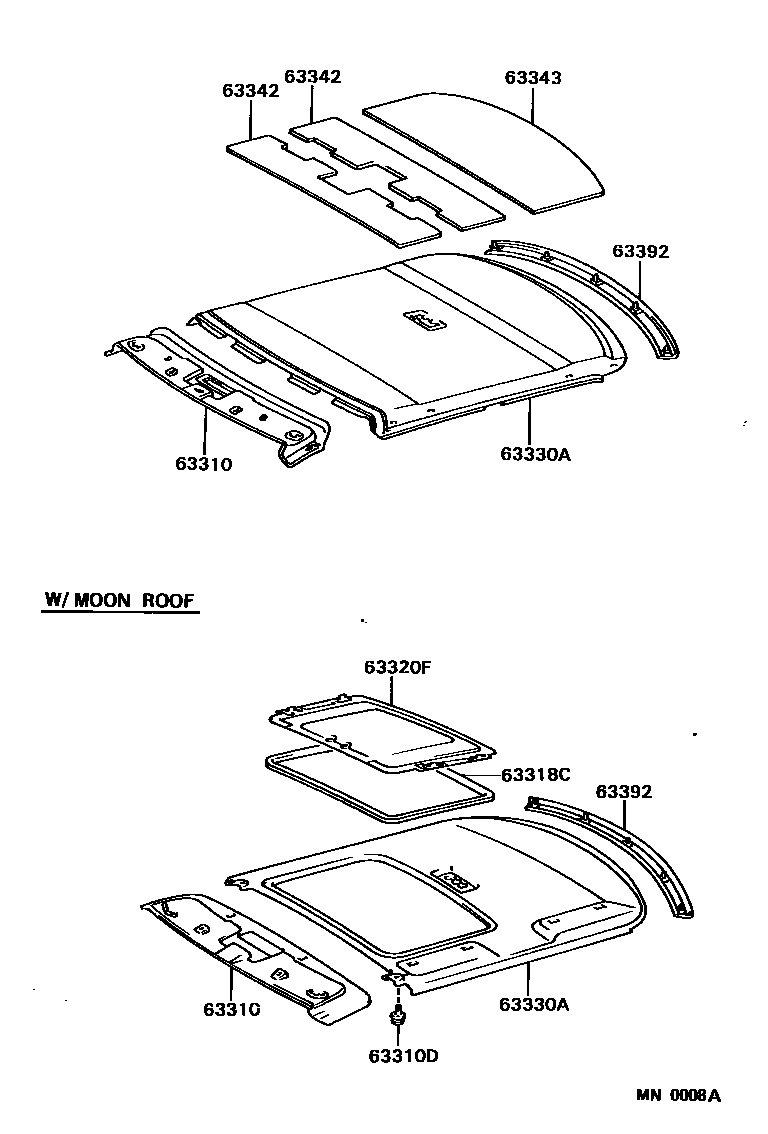

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
MAROON,TRIM3#
DARK BLUE,TRIM8#
W(MOON ROOF),BLACK,TRIM1#
W(MOON ROOF),MAROON,TRIM3#
W(MOON ROOF),DARK BLUE,TRIM8#
GREIGE,TRIM0#
63310DCLIP, ROOF HEADLINING
63318CMOULDING, SUN ROOF OPENING TRIM
MAROON,TRIM3#
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
IVORY,TRIM0#
63320FHEADLINING ASSY, SUN ROOF
MAROON,TRIM3#
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
IVORY,TRIM0#
MAROON,TRIM3#
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
IVORY,TRIM0#
63330AHEADLINING ASSY, ROOF, REAR
W(MOON ROOF),MAROON,TRIM1#
W(MOON ROOF),LIGHT GRAY,TRIM1#
W(MOON ROOF),LIGHT BLUE,TRIM8#
W(MOON ROOF),IVORY,TRIM0#
MAROON,TRIM3#
LIGHT GRAY,TRIM1#
LIGHT BLUE,TRIM8#
IVORY,TRIM0#
63342PAD, ROOF SILENCER, NO.2
63343PAD, ROOF SILENCER, NO.3
63392TRIM, ROOF HEADLINING, REAR
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
8 parts on this diagram · 1 diagram in section
