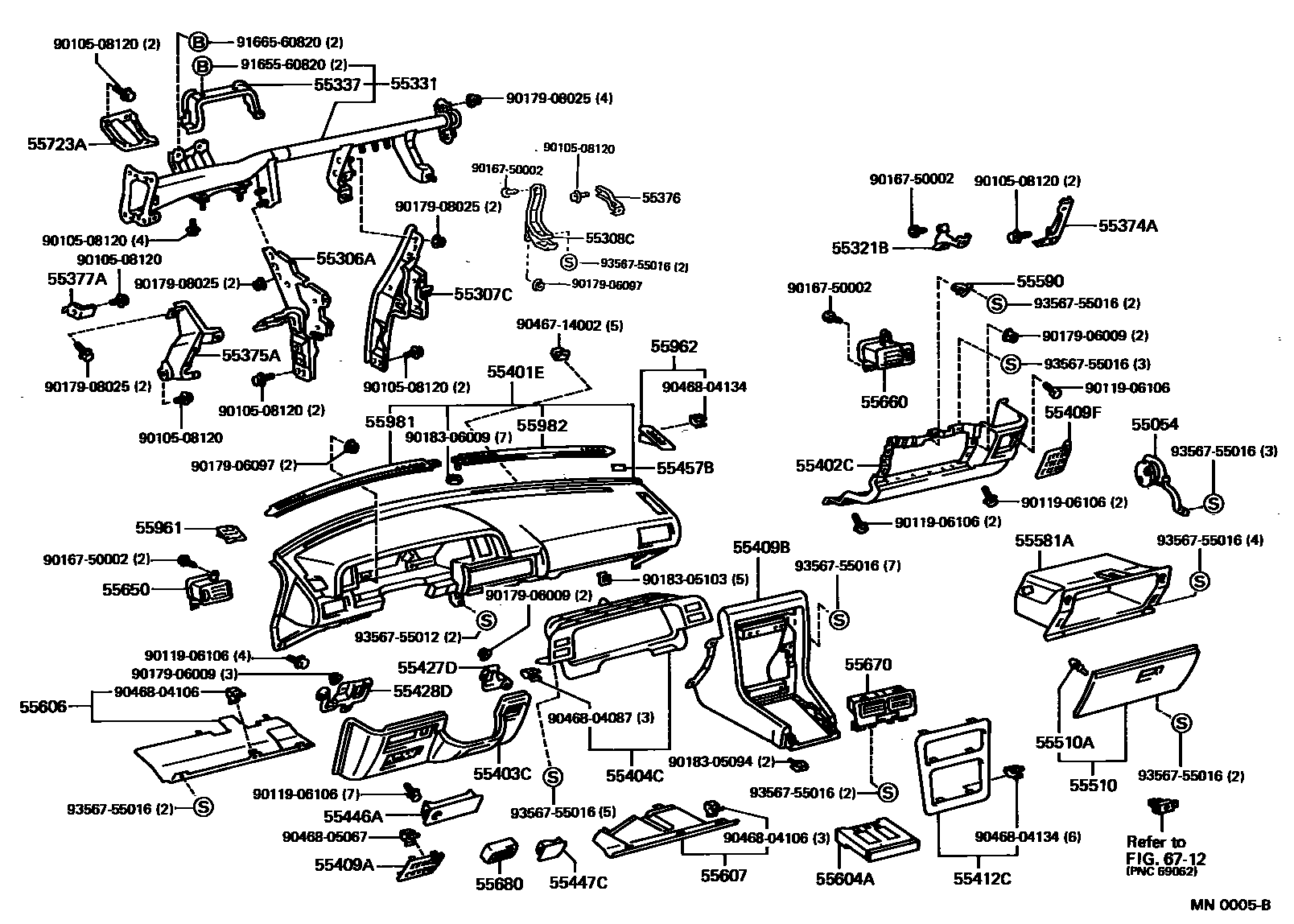

INSTRUMENT PANEL & GLOVE COMPARTMENT
55054STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55321BBRACKET, INSTRUMENT PANEL, NO.1
55331REINFORCEMENT, INSTRUMENT PANEL
55337REINFORCEMENT, INSTRUMENT PANEL SUB
55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
IVORY,TRIM0#
55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
IVORY,TRIM0#
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
IVORY,TRIM0#
55409BPAD SUB-ASSY, INSTRUMENT PANEL, LOWER CENTER
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
IVORY,TRIM0#
55412CPANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1
55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1
55428DRETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2
55446ABASE, SWITCH HOLE, NO.1
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
IVORY,TRIM0#
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
IVORY,TRIM0#
55447CBASE, SWITCH HOLE, NO.2
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
IVORY,TRIM0#
55457BSPACER, INSTRUMENT PANEL SAFETY PAD
55510DOOR ASSY, GLOVE COMPARTMENT
MAROON,TRIM3#
MEDIUM GRAY,TRIM1#
DARK BLUE,TRIM8#
IVORY,TRIM0#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55581ACOMPARTMENT, GLOVE
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
IVORY,TRIM0#
MEDIUM GRAY,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
55723ABRACE, INSTRUMENT PANEL REINFORCEMENT TO COWL
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
55981GARNISH, DEFROSTER NOZZLE, NO.1
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
55982GARNISH, DEFROSTER NOZZLE, NO.2
BLACK,TRIM1#
MAROON,TRIM3#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
6712LOCK CYLINDER SET
9010508120
main90105-08120
9011906106
main90119-06106
9016750002
main90167-50002
9017906009
main90179-06009
9017906097
main90179-06097
9017908025
main90179-08025
9018305094
main90183-05094
9018305103
main90183-05103
9018306009
main90183-06009
9046714002
main90467-14002
9046804087
main90468-04087
9046804106
main90468-04106
9046804134
main90468-04134
9046805067
main90468-05067
9165560820
main91655-60820
9166560820
main91665-60820
9356755012
main93567-55012
9356755016
main93567-55016
59 parts on this diagram · 1 diagram in section
