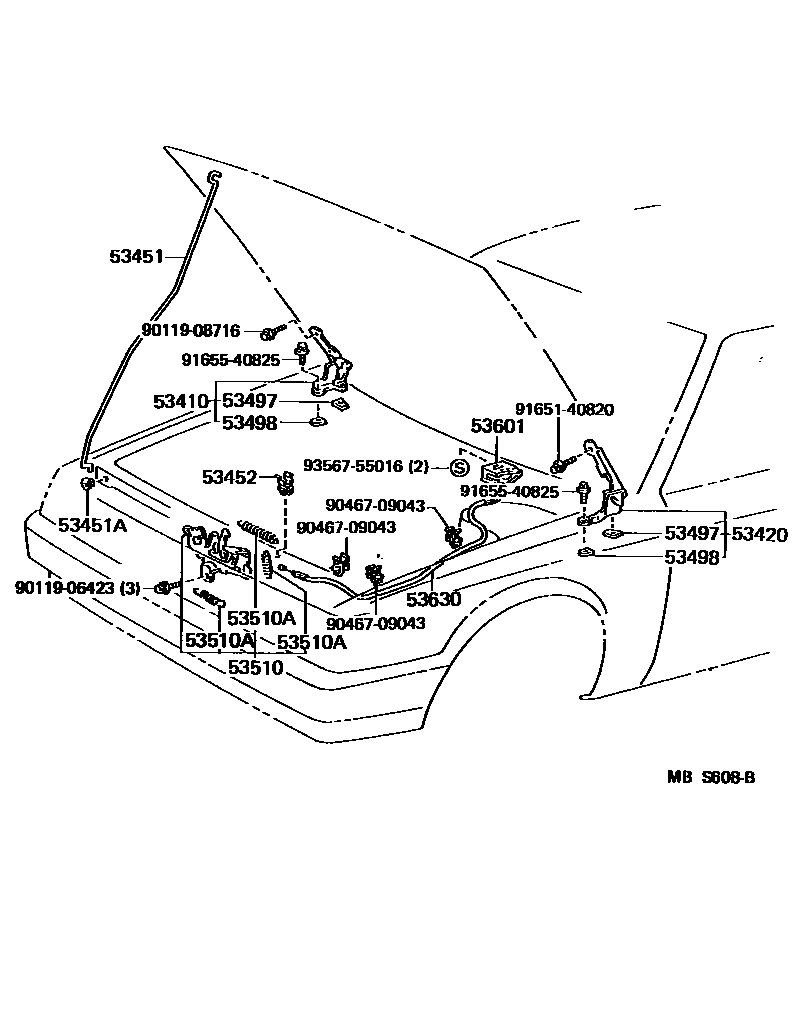

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-32031iVZV21198906-199107

53420HINGE ASSY, HOOD, LH

main53420-32031iVZV21198906-199107

53451ROD, HOOD SUPPORT

main53451-32030iVZV21198906-199107

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15011iVZV21198906-199107

53452HOLDER, HOOD STAY

main53452-32010iVZV21198906-199107

53497PAD, HOOD HINGE, NO.1

main53497-17011×2iVZV21198906-199107

53498PAD, HOOD HINGE, NO.2

main53498-12011×2iVZV21198906-199107

53510LOCK ASSY, HOOD

main53510-32080iVZV21198906-199107

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09047iVZV21198906-199107

WD=0.9,CW=21.25

main90506-09048iVZV21198906-199107

WD=0.9,CW=26.5

main90507-20024iVZV21198906-199107

WD=2.0,CW=20

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-32010-08iVZV21198906-199107

IVORY,TRIM0#

main53601-32010-B0iVZV21198906-199107

MEDIUM GRAY,TRIM1#

main53601-32010-D0iVZV21198906-199107

MAROON,TRIM3#

main53601-32010-J0iVZV21198906-199107

DARK BLUE,TRIM8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-32060iVZV21198906-199107

9011906423

main90119-06423

9011908716

main90119-08716

9046709043

main90467-09043

9165140820

main91651-40820

9165540825

main91655-40825

9356755016

main93567-55016

17 parts on this diagram · 1 diagram in section
