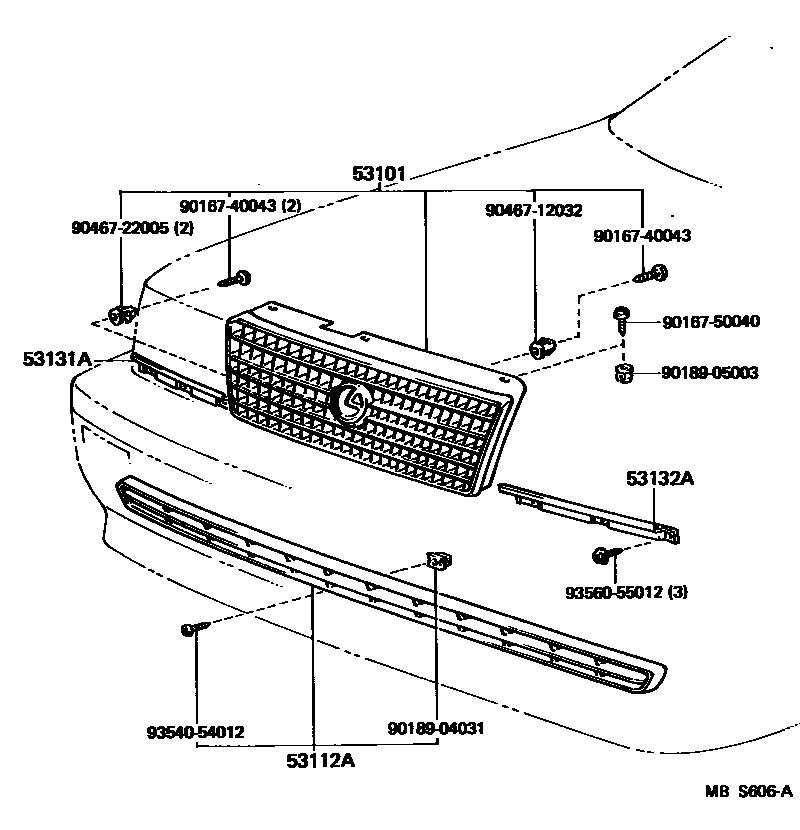

RADIATOR GRILLE

53101GRILLE SUB-ASSY, RADIATOR

main53101-32180iVZV21198906-199107

53112AGRILLE, RADIATOR, LOWER

main53112-32070-02iVZV21198906-199107

DEEP RED MICA,3H8

main53112-32070-03iVZV21198906-199107

D BULEISH GRAY M,184 ,8D6 ,8G5

main53112-32070-05iVZV21198906-199107

L GRAYISH BEIGE M,051 ,4J1

main53112-32070-13iVZV21198906-199107

DARK GRAY M,202 ,6K4

53131ADOOR, HEADLAMP, RH

main53131-32140iVZV21198906-199107

53132ADOOR, HEADLAMP, LH

main53132-32140iVZV21198906-199107

9016740043

main90167-40043

9016750040

main90167-50040

9018904031

main90189-04031

9018905003

main90189-05003

9046712032

main90467-12032

9046722005

main90467-22005

9354054012

main93540-54012

9356055012

main93560-55012

12 parts on this diagram · 1 diagram in section
