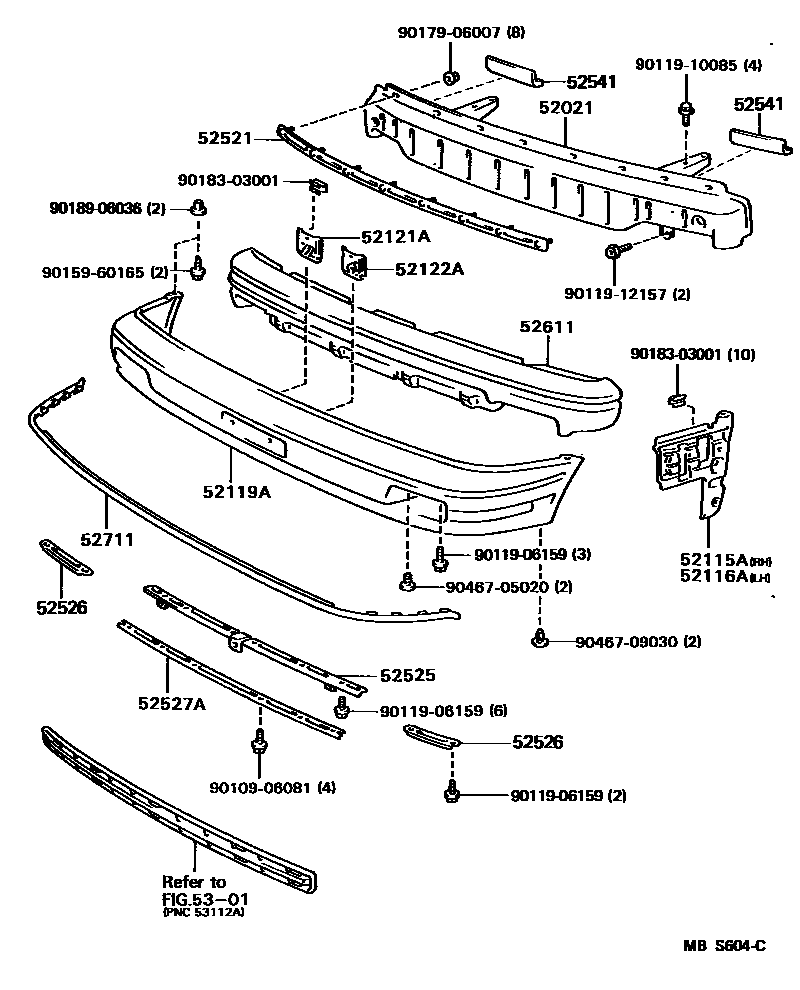

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-32120iVZV21198906-199107

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-32090iVZV21198906-199107

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-32090iVZV21198906-199107

52119ACOVER, FRONT BUMPER

main52119-32911iVZV21198906-199107

52121ABRACKET, FRONT LICENSE PLATE MOUNTING, RH

main52121-32070iVZV21198906-199107

52122ABRACKET, FRONT LICENSE PLATE MOUNTING, LH

main52122-32020iVZV21198906-199107

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-32090iVZV21198906-199107

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52506-32030iVZV21198906-199107

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-32070×2iVZV21198906-199107

52527ARETAINER, FRONT BUMPER, LOWER CENTER NO.2

main52527-32030iVZV21198906-199107

52541PROTECTOR, FRONT BUMPER

main52541-32010×2iVZV21198906-199107

52611ABSORBER, FRONT BUMPER ENERGY

main52611-32120iVZV21198906-199107

52711MOULDING, FRONT BUMPER

main52711-32060iVZV21198906-199107

5301RADIATOR GRILLE

→ Go to FIG 53-01

9010906081

main90109-06081

9011906159

main90119-06159

9011910085

main90119-10085

9011912157

main90119-12157

9015960165

main90159-60165

9017906007

main90179-06007

9018303001

main90183-03001

9018906036

main90189-06036

9046705020

main90467-05020

9046709030

main90467-09030

24 parts on this diagram · 1 diagram in section
