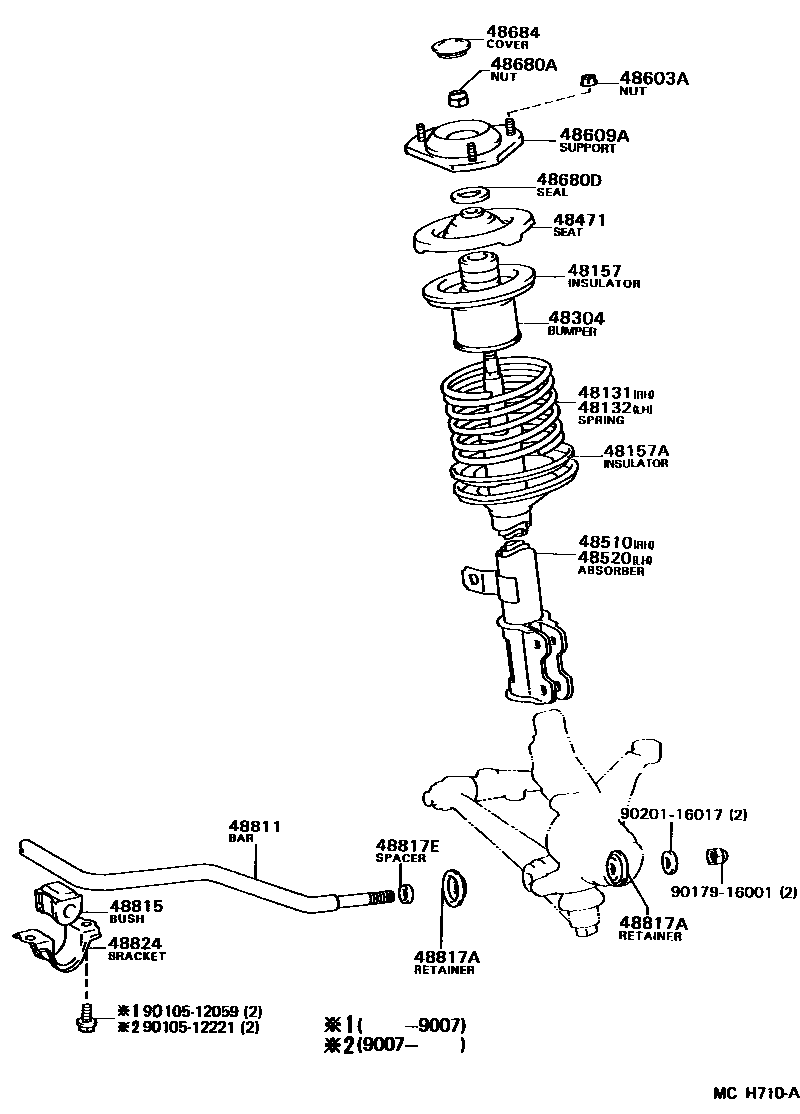

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-32780iVZV21..5F198906-199107

main48131-32800iVZV21..4FC198906-199107

48132SPRING, FRONT COIL, LH

main48131-32780iVZV21..5F198906-199107

main48131-32800iVZV21..4FC198906-199107

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-32020iVZV21198906-199107

48157AINSULATOR, FRONT COIL SPRING, LOWER

main48158-32020iVZV21198906-199107

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-32050iVZV21198906-199107

48471SEAT, FRONT SPRING, UPPER

main48044-32020iVZV21198906-199107

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-32150iVZV21198906-199011

sub48510-32151

main48510-32151iVZV21199011-199107

sub48510-32082

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-32150iVZV21198906-199011

sub48520-32151

main48520-32151iVZV21199011-199107

sub48520-32082

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10095iVZV21198906-199107

main90179-10143iVZV21198908-199006

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-32080iVZV21198906-199107

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iVZV21198906-199107

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iVZV21198906-199107

48684COVER, BEARING DUST

main48684-32010iVZV21198906-199107

48811BAR, STABILIZER, FRONT

main48811-32120iVZV21198906-199009

sub48811-32220

main48811-32180iVZV21198910-199006

main48811-32220iVZV21199009-199107

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-32060iVZV21198906-199103

sub48815-32120

main48815-32120iVZV21199103-199107

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main48667-32010iVZV21199006-199008

sub48667-32011

main48667-32011iVZV21199008-199107

main90948-02115iVZV21198906-199006

LH

sub48667-32010

main90948-02124iVZV21198906-199006

RH

sub48667-32010

48817ESPACER(FOR STABILIZER BAR)

main90560-16005iVZV21198906-199009

main90560-16014iVZV21199009-199107

main90560-16015iVZV21199009-199107

main90560-16016iVZV21199009-199107

main90560-16017iVZV21199009-199107

48824BRACKET, STABILIZER, FRONT

main48824-32030iVZV21198906-199006

sub48824-32040

main48824-32040iVZV21199006-199107

9010512059

main90105-12059

9010512221

main90105-12221

9017916001

main90179-16001

9020116017

main90201-16017

22 parts on this diagram · 1 diagram in section
