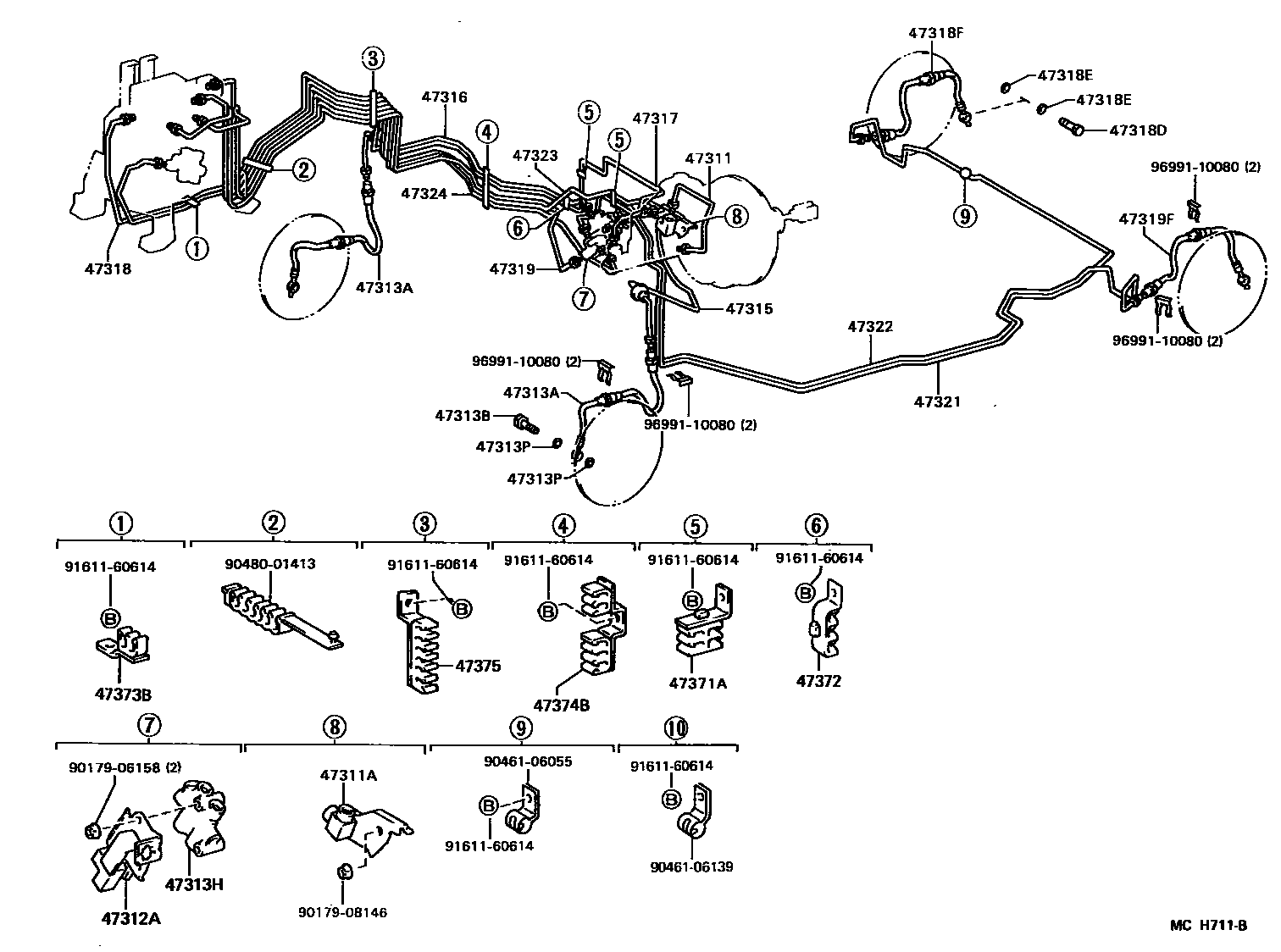

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-32060iVZV21198906-199107

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10163iVZV21198906-199107

47312AUNION, NO.2(FOR FRONT BRAKE TUBE)

main90412-10155iVZV21198906-199107

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02593×2iVZV21198906-199107

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iVZV21198906-199107

47313HWAY, NO.3(FOR FRONT BRAKE TUBE)

main90412-10140iVZV21198906-199107

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iVZV21198906-199107

47315TUBE, FRONT BRAKE, NO.5

main47315-32100iVZV21198906-199107

47316TUBE, FRONT BRAKE, NO.6

main47316-32021iVZV21198906-199107

47317TUBE, FRONT BRAKE, NO.7

main47317-32020iVZV21198906-199107

47318TUBE, FRONT BRAKE, NO.8

main47318-32010iVZV21198906-199107

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iVZV21198906-199107

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iVZV21198906-199107

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02498iVZV21198906-199107

47319TUBE, FRONT BRAKE, NO.9

main47319-32020iVZV21198906-199107

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02498iVZV21198906-199107

47321TUBE, REAR BRAKE, NO.1

main47321-32090iVZV21198906-199107

47322TUBE, REAR BRAKE, NO.2

main47322-32080iVZV21198906-199107

47323TUBE, REAR BRAKE, NO.3

main47323-32070iVZV21198906-199107

47324TUBE, REAR BRAKE, NO.4

main47324-32070iVZV21198906-199107

47371ACLAMP, BRAKE TUBE, NO.1

main47371-32070iVZV21198906-199107

47372CLAMP, BRAKE TUBE, NO.2

main47371-30030iVZV21198906-199107

47373BCLAMP, BRAKE TUBE, NO.3

main47371-32040iVZV21198906-199107

47374BCLAMP, BRAKE TUBE, NO.4

main47371-32050iVZV21198906-199107

47375CLAMP, BRAKE TUBE, NO.5

main47371-32060iVZV21198906-199107

9017906158

main90179-06158

9017908146

main90179-08146

9046106055

main90461-06055

9046106139

main90461-06139

9048001413

main90480-01413

9161160614

main91611-60614

9699110080

main96991-10080

32 parts on this diagram · 2 diagrams in section
